Grundfos 92531064 - CR 95-2-1 E-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92531064

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92531064 - CR 95-2-1 E-G-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial service and high-pressure in-line applications, used by contractors and plant maintenance teams.

Key features

  • Designed for industrial applications and service replacement use
  • Vertical, multistage centrifugal configuration for compact footprint (tags: Vertical, Multistage, In Line)
  • Provides steady high-pressure performance for process pumping and transfer tasks

Applications

Typical uses include boiler feed, high-pressure water transfer, process circulation, and general plant service where vertical multistage centrifugal pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92531064

EAN 5715115820102
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Diameter 6.07 in
DOE Pump Energy Index CL 0.92
Flange size for motor 286TC
Frequency converter NONE
Impeller Stainless steel
Impellers 1
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Maximum head 262.2 ft
Maximum operating pressure 16 bar
Model A
Motor 286TC
Motor standard NEMA
Net weight 241.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3532 rpm
Pump version E
Rated flow 500 US gpm
Rated head 182.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version E

Motor Curves

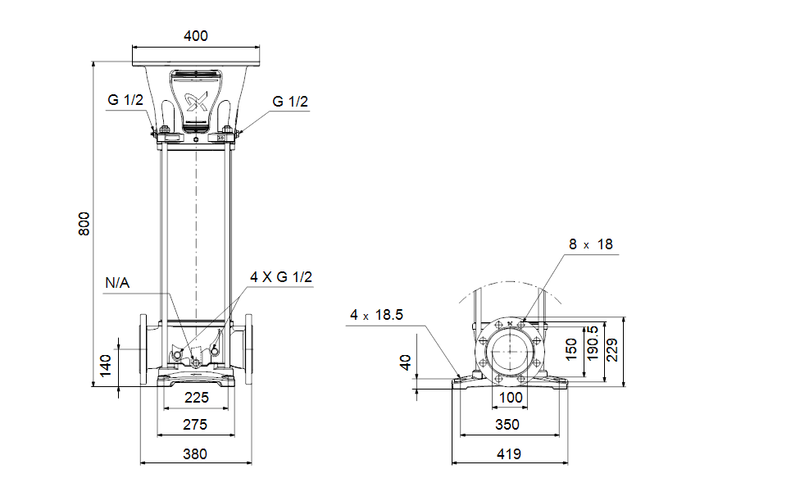

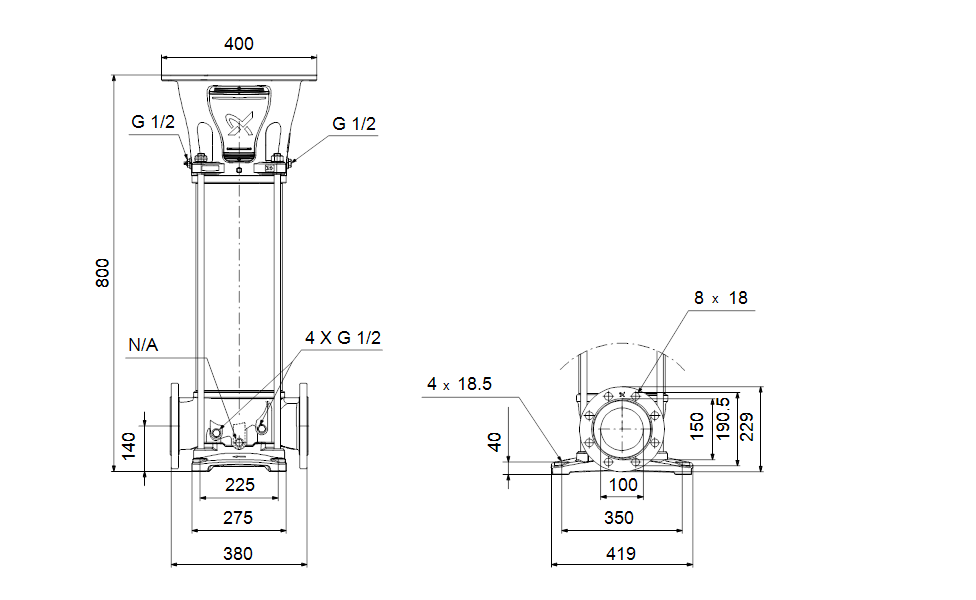

Dimensional Drawing
