Grundfos 98158100 - CR 5-8 K-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98158100

Price:
Sale price$3,991.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98158100 - CR 5-8 K-B-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer, circulation, and boosting systems.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CR 5-8 K-B-A-E-HQQE delivers exceptional performance while minimizing energy consumption, making it a cost-effective solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711490642759
Actual impeller diameter 2.88 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Flange size for motor 182TC
Frequency converter NONE
Gross weight 57.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum head 257.2 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 42.5 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version K
Rated flow 30.4 US gpm
Rated head 189.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 8
Standard NEMA
Type of connection Oval / NPT(F)
Version K

Motor Curves

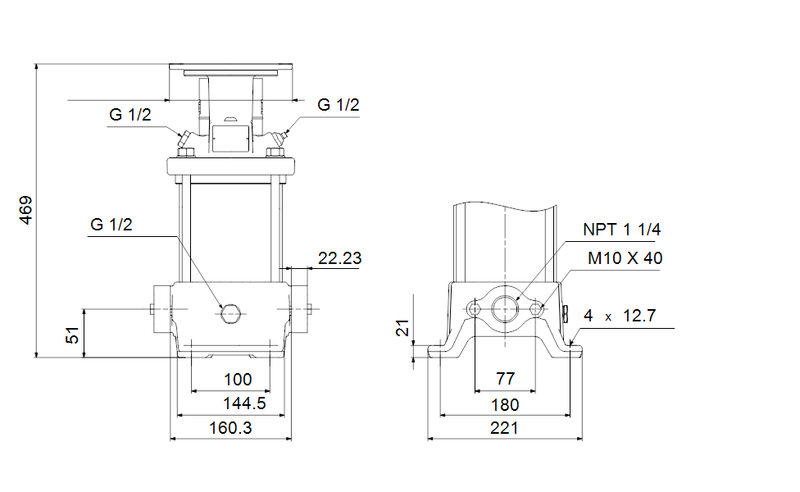

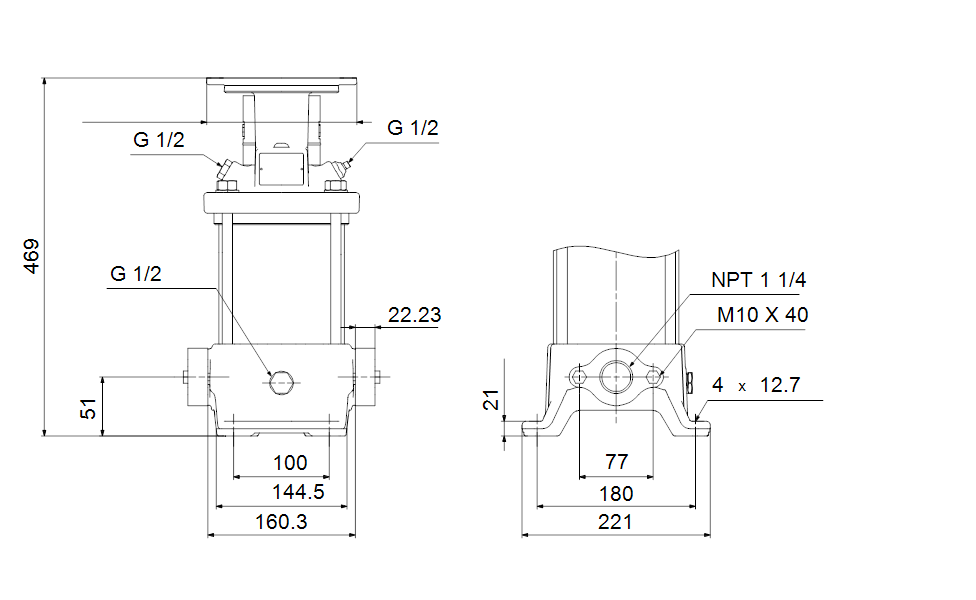

Dimensional Drawing
