Grundfos 99916686 - CR 5-6 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $1,489.44
GRUNDFOSSKU: 99916686

Price:
Sale price$1,990.56 Regular price$3,480.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-6 A-B-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5715114114554
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection Oval / NPT(F)
Connection 2 PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.77
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Full load SF current 20.1/8.73 A
Gross weight 93.1 lb
IE efficiency 0.77
Impeller Stainless steel
Impellers 6
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 209.3 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.7
Motor efficiency at 3/4 load 0.75
Motor efficiency at full load 1 0.77
Motor protec PTO
Motor standard NEMA
Motor type WEG
n rpm 3495rpm
Net weight 82.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 2 HP
P2 kW 1.5kW
Phase 1
Power (P2) required by pump 2 HP
Power factor 1 0.97
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CR 5
Pump 2 HP
Pump housing Cast iron
Pump inlet 1.25
Pump outlet 1.25
Pump version A
Pumped liquid Water
Rated current 17,5/9,62-8,73 A
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 153.2 ft
Rated head 2 153.2 ft
Rated power - P2 2 HP
Rated speed 3495 rpm
Rated voltage 1 x 115/208-230 V
Real Time 1 Available on 10/11/2023 Plant: Allentown Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 6
Standard NEMA
Starting current 780-780 %
Type WEG
Type of connection Oval / NPT(F)
Version A

Motor Curves

Dimensional Drawing

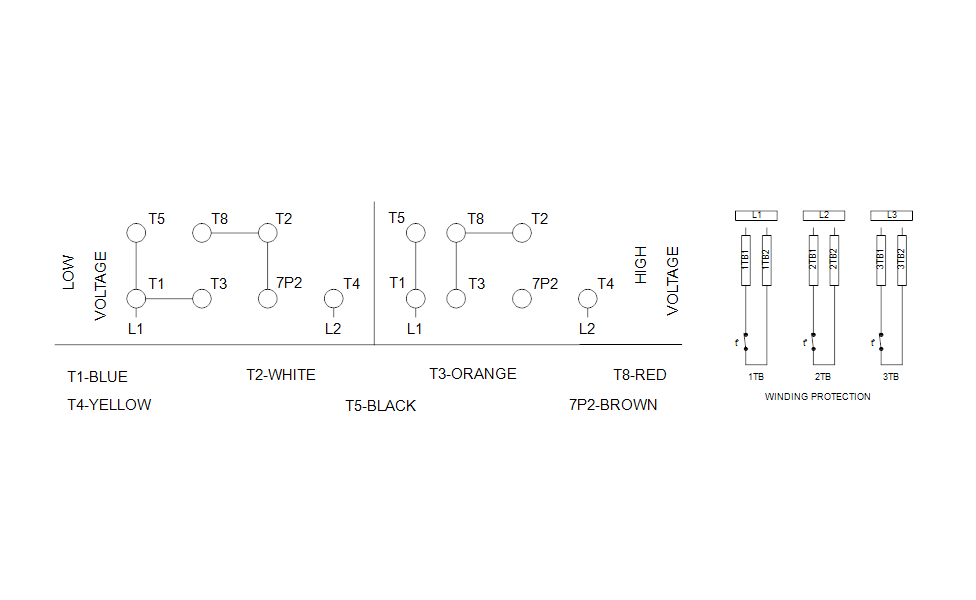

DWiring Diagram
