Grundfos 92604914 - CR 5-3 BH-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92604914

Price:
Sale price$4,693.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92604914 CR 5-3 BH-GA-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial high-pressure inline applications, suited for maintenance technicians and plant engineers.

Key features

  • Manufactured for industrial service and shop repair scenarios
  • Vertical, multistage centrifugal configuration for compact, high-pressure operation
  • Delivers reliable pressure boosting and consistent flow for system stability

Applications

Ideal for high-pressure water boosting, boiler feed, reverse osmosis feed, and other inline process duties where a compact vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92604914

EAN 5715116952406
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 94.9 lb
IE efficiency IE3 84%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 96.13 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.8
Motor efficiency at 3/4 load 0.825
Motor efficiency at full load 1 0.84
Motor standard NEMA
Motor type WEG
Net weight 82.6 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.88
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3484 rpm
Pump version BH
Pumped liquid Water
Rated current 3.74/1.87 A
Rated flow 30.8 US gpm
Rated head 66.6 ft
Rated power - P2 1.1 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 inch
Stages 3
Standard NEMA
Starting current 9.1
Type WEG
Type of connection GA
Version BH

Motor Curves

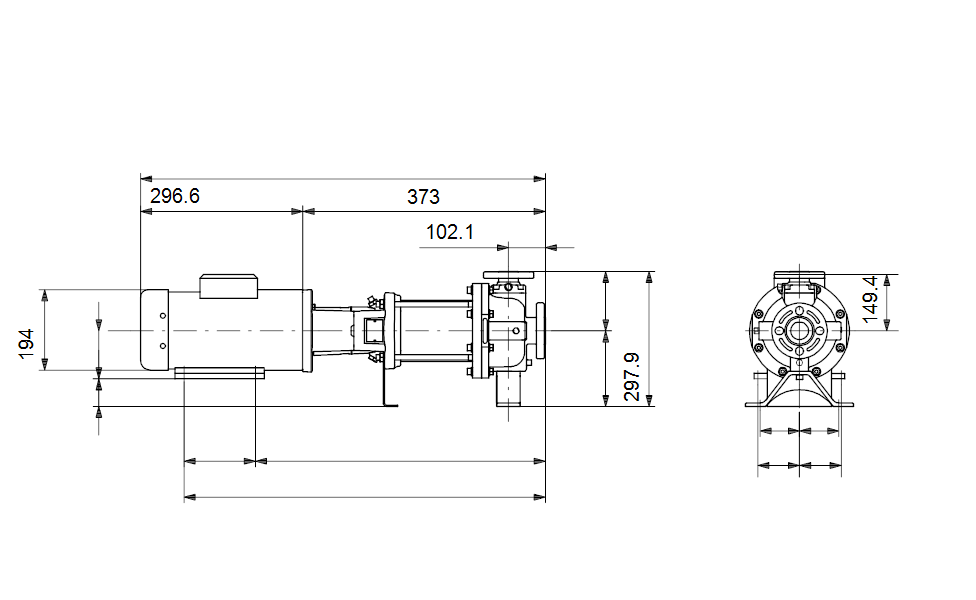

Dimensional Drawing

DWiring Diagram
