Grundfos 92589554 - CR 5-3 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92589554

Price:
Sale price$5,688.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92589554 - CR 5-3 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. This replacement unit fits systems requiring inline, high-pressure, multistage performance and is used by service technicians and plant maintenance teams.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Vertical, multistage centrifugal design suitable for high-pressure inline installations
  • Delivers reliable, efficient head and flow for boosting, circulation, and pressure applications

Applications

Typical uses include boiler feed, pressure boosting, cooling and chiller systems, industrial circulation, and other high-pressure multistage duties where a compact vertical centrifugal pump is preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92589554

EAN 5715116720043
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 76.1 lb
IE efficiency IE3 77
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 96.13 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.708
Motor efficiency at 3/4 load 0.754
Motor efficiency at full load 1 0.77
Motor standard NEMA
Motor type WEG
Net weight 65.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3484 rpm
Pump version A
Pumped liquid Water
Rated current 3
Rated flow 30.4 US gpm
Rated head 65.29 ft
Rated power - P2 0.75 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard NEMA
Starting current 570-570 %
Type WEG
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

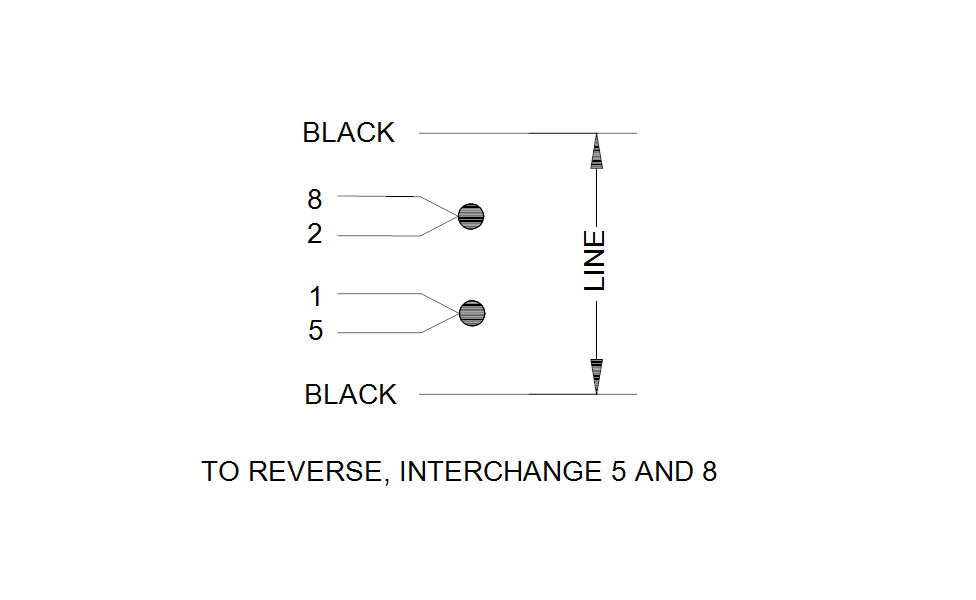

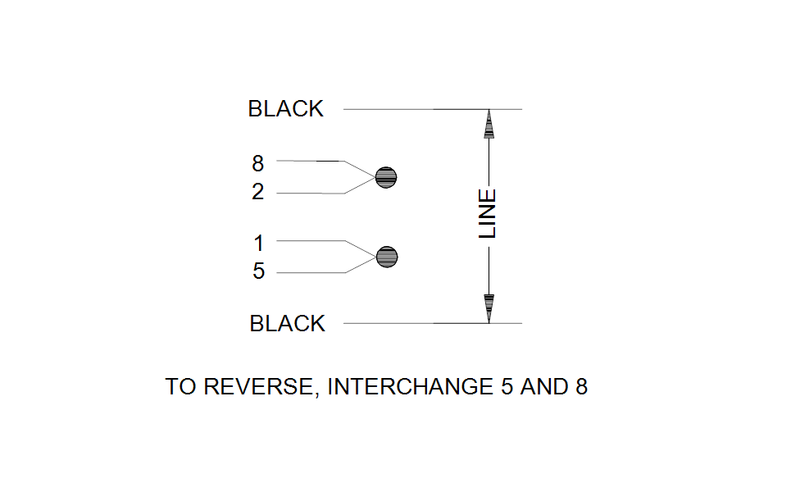

DWiring Diagram
