Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE
Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE
Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE
Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE
Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE
Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE

Grundfos 96994432 - CR 5-20 K-FGJ-A-E-HQQE

GRUNDFOSSKU: 96994432
Price:
$10,306.94
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

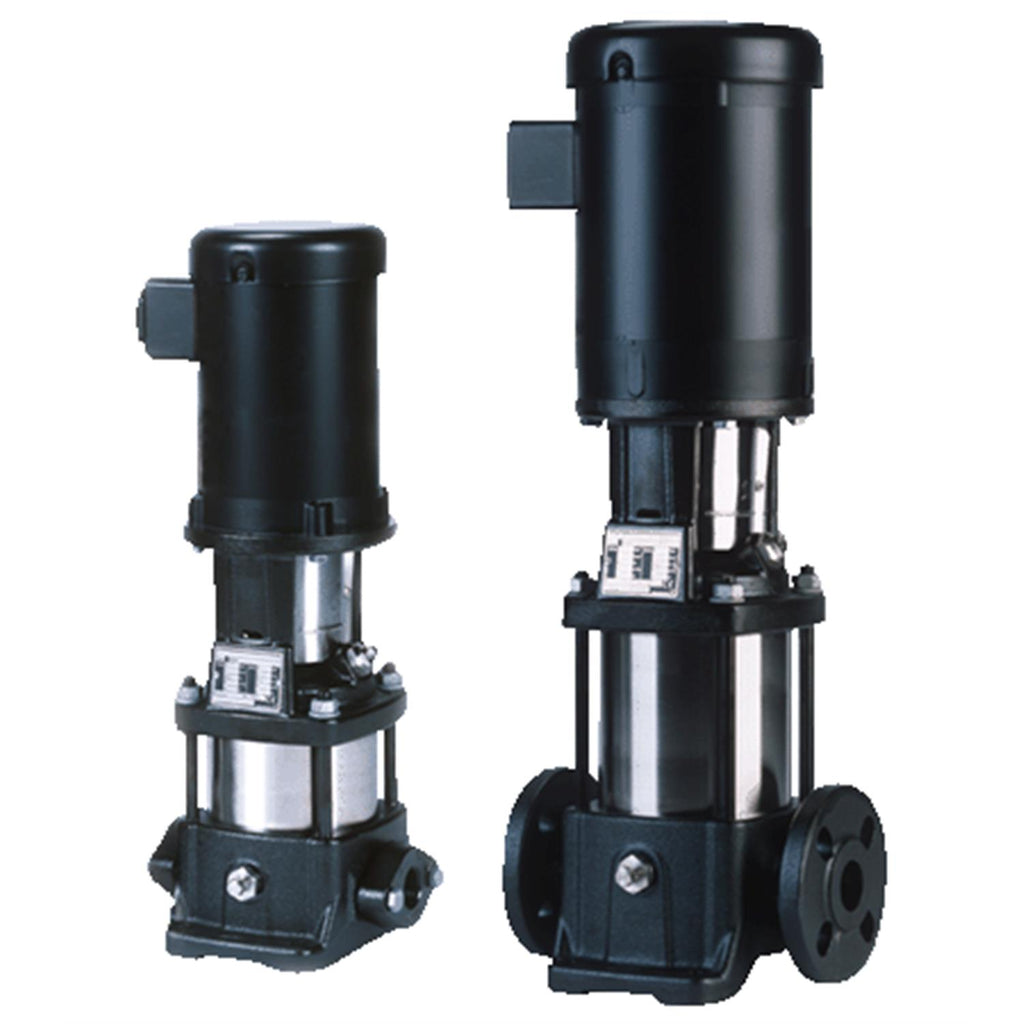

CR 5-20 K-FGJ-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700316469397
Applications Industrial applications
Actual impeller diameter 2.88 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 89.5-89.5%
Flange rating inlet 250 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 22,4-20,8/10,4 A
Gross weight 187.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 20
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 647.3 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor protec PTC
Motor standard NEMA
Motor type 132DA
n rpm 3490-3520rpm
Net weight 169.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 7.5 HP
P2 kW 5.5kW
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89-0.86
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CR 5
Pump 7.5 HP
Pump housing Cast iron
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version K
Pumped liquid Water
Rated current 19,5-18,1/9,09 A
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 497.7 ft
Rated head 2 497.7 ft
Rated power - P2 7.5 HP
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 20
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Type of connection DIN / ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
