Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE
Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE
Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE
Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE
Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE
Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE

Grundfos 99968284 - CR 5-16 K-FGJ-A-E-HQQE

Save $3,252.96
GRUNDFOSSKU: 99968284
Price:
$3,524.04 $6,777.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

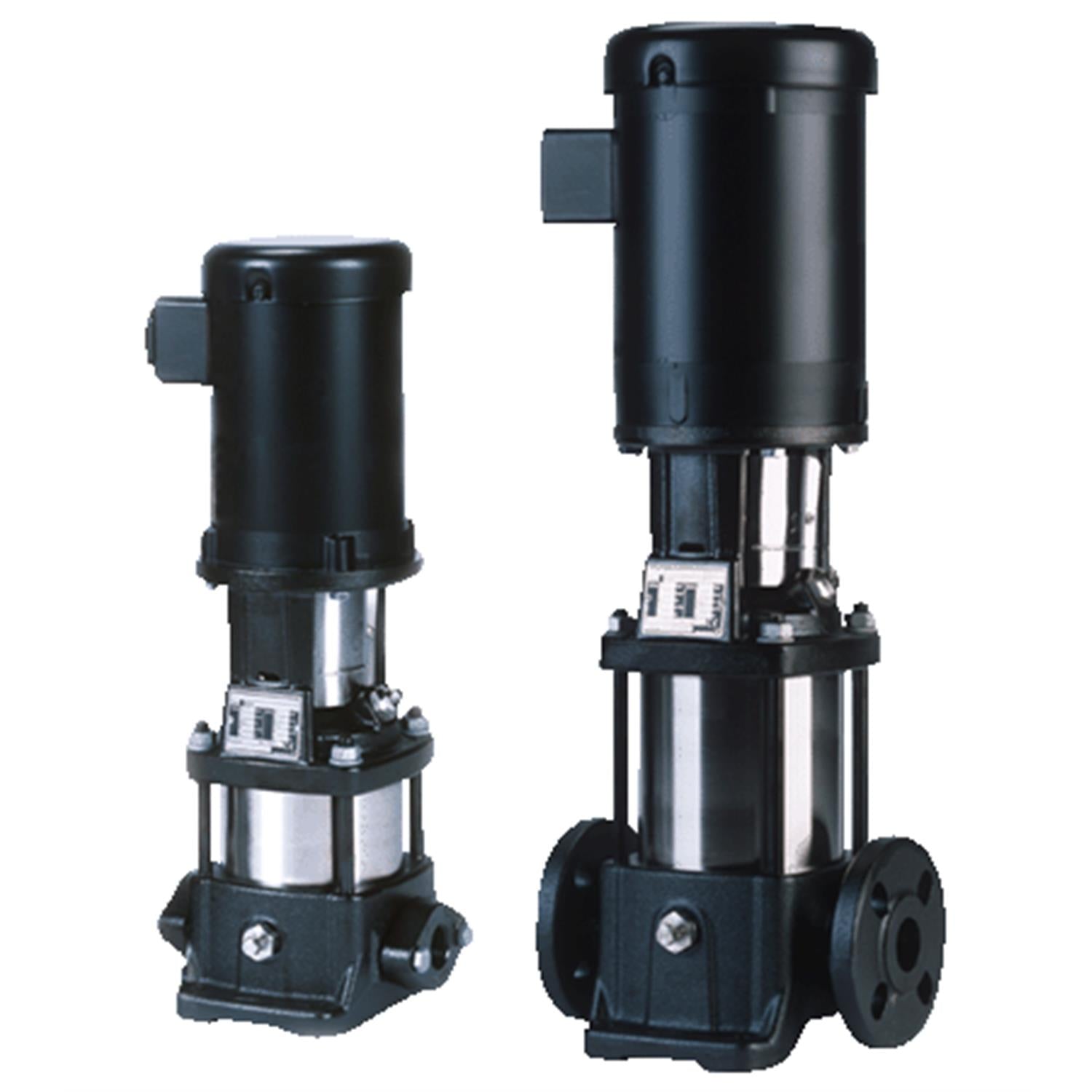

CR 5-16 K-FGJ-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114888813
Applications Industrial applications
Material Pricing Group 3L
Motor efficiency at full load 1 0.895
IE Efficiency class IE3 / NEMA Premium
Code for rubber E
Maximum ambient temperature 104 °F
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Size of inlet connection DN 25/32
Power factor 1 0.89
Selected liquid temperature 68 °F
Type of connection DIN / ANSI / JIS
Bearing 1 SIC
Pressure rating PN 25
Rated voltage 3 x 230/460 V
Flange size for motor 213TC
Pumped liquid Water
Size of outlet connection DN 25/32
Starting current 7.6
Pump outlet DN 25/32
Pump inlet DN 25/32
Connect code FGJ
Liquid temperature range -4 .. 248 °F
Insulation class (IEC 85) F
IE efficiency IE3 89,5%
Motor efficiency at 1/2 load 0.875
Built-in motor protection NONE
Net weight 211.0 lb
Number of poles 2
Rated speed 3530 rpm
Gross weight 229.0 lb
Rated power - P2 7.5 HP
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 7.5 HP
Pressure rating for connection PN 25
Motor efficiency at 3/4 load 0.885
Rated current 17.3/8.67 A
Service factor 1.15
Full load SF current 19.9/9.97 A
Frequency converter NONE
Motor type WEG
DOE Pump Energy Index CL 0.94
Stages 16
Approvals CURUS
Rated flow 30.4 US gpm
Model A
Version K
Diameter 2.88 in
Cooling IC 411
Motor 213TC
Rubber E
Maximum head 516.4 ft
Motor standard NEMA
Rated head 392.7 ft
Actual impeller diameter 2.88 in
Type WEG
Curve tolerance ISO9906:2012 3B
Impellers 16
Connection DIN / ANSI / JIS
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Cast iron
Number of reduced-diameter impellers 0
Flange rating inlet 250 lb
Pump 7.5 HP
Low NPSH Y
Standard NEMA
Pump version K

Motor Curves

Dimensional Drawing

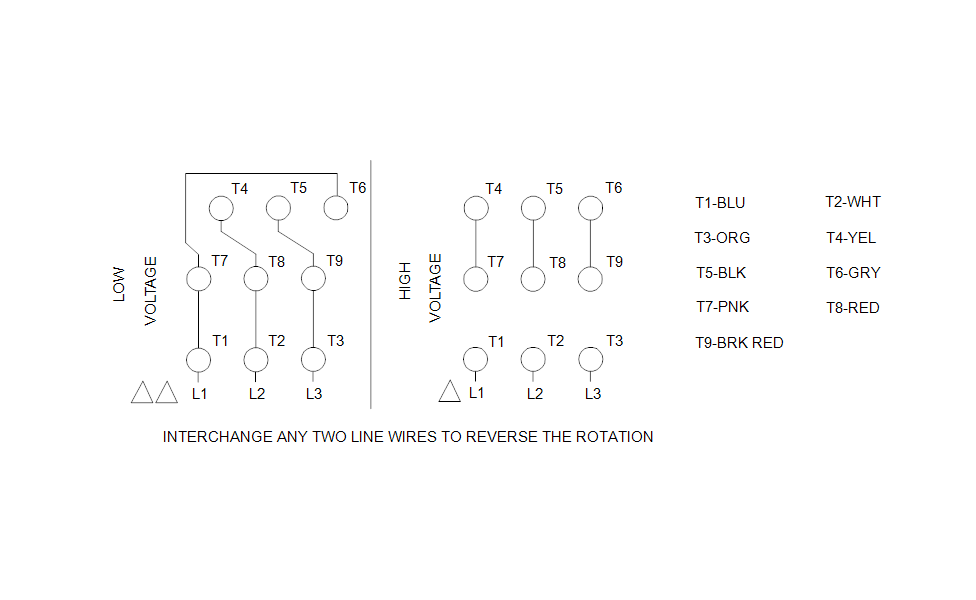

DWiring Diagram
