Grundfos 99150988 - CR 5-14 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99150988

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99150988 - CR 5-14 A-B-A-E-HQQE is a vertical, multistage centrifugal pump designed for in-line, high-pressure applications and general industrial service. This replacement unit fits systems requiring reliable multi-stage pumping and is used by service technicians and facility maintenance teams.

Key features

  • Multistage centrifugal design for stable pressure delivery
  • Vertical, in-line configuration suited to space-conscious installations
  • Service-special compatibility for maintenance and repair workflows

Applications

Typical uses include booster service, industrial process circulation, high-pressure transfer, and repair or retrofit projects where multistage vertical centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99150988

EAN 5712607698836
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 132.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 452.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard IEC
Motor type 112CA
Net weight 126.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.91-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3520 rpm
Pump version A
Pumped liquid Water
Rated current 13
Rated flow 30.4 US gpm
Rated head 344.5 ft
Rated power - P2 4 kW
Rated speed 3510-3540 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 14
Standard IEC
Starting current 1000-1470 %
Type 112CA
Type of connection Oval / NPT(F)
Version A

Motor Curves

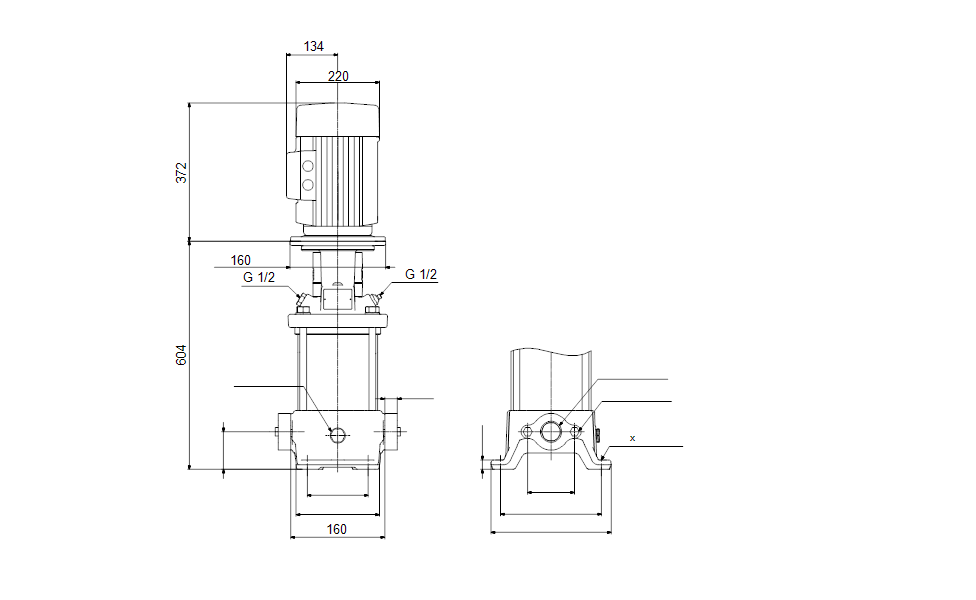

Dimensional Drawing

DWiring Diagram
