Grundfos 99277923 - CR 5-10 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99277923

Price:
Sale price$4,406.94
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-10 A-B-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.

EAN 5713826456467
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 54.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 80.71 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 40.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 1700 rpm
Pump version A
Rated flow 15.4 US gpm
Rated head 60.37 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 10
Standard NEMA
Type of connection Oval / NPT(F)
Version A

Motor Curves

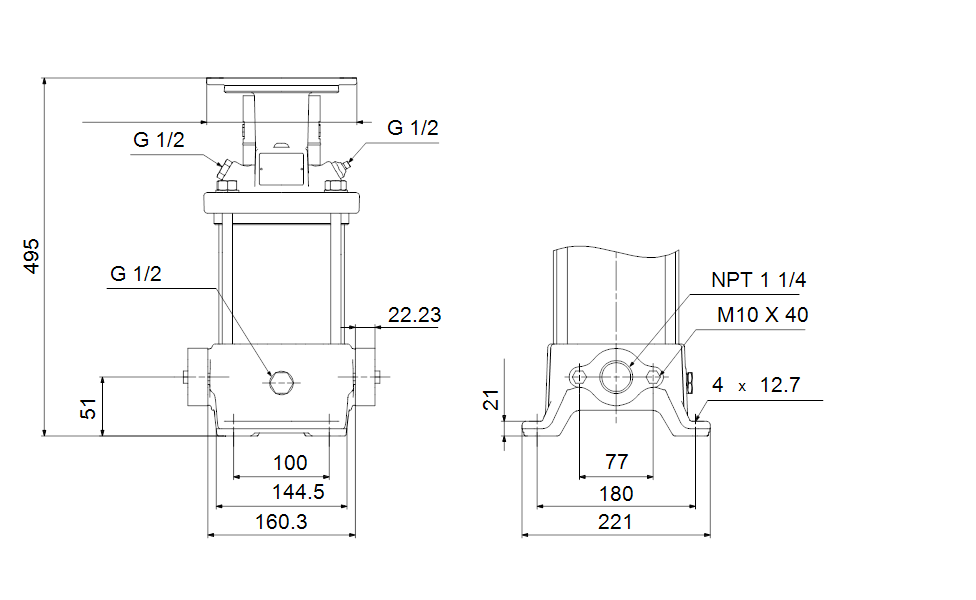

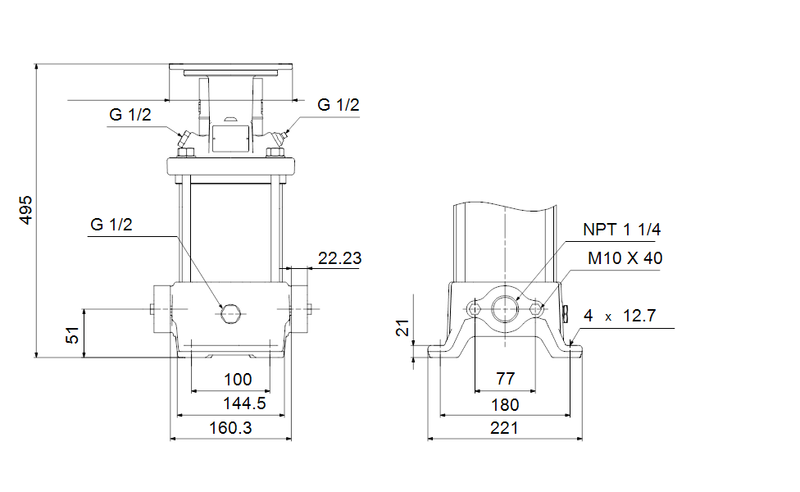

Dimensional Drawing
