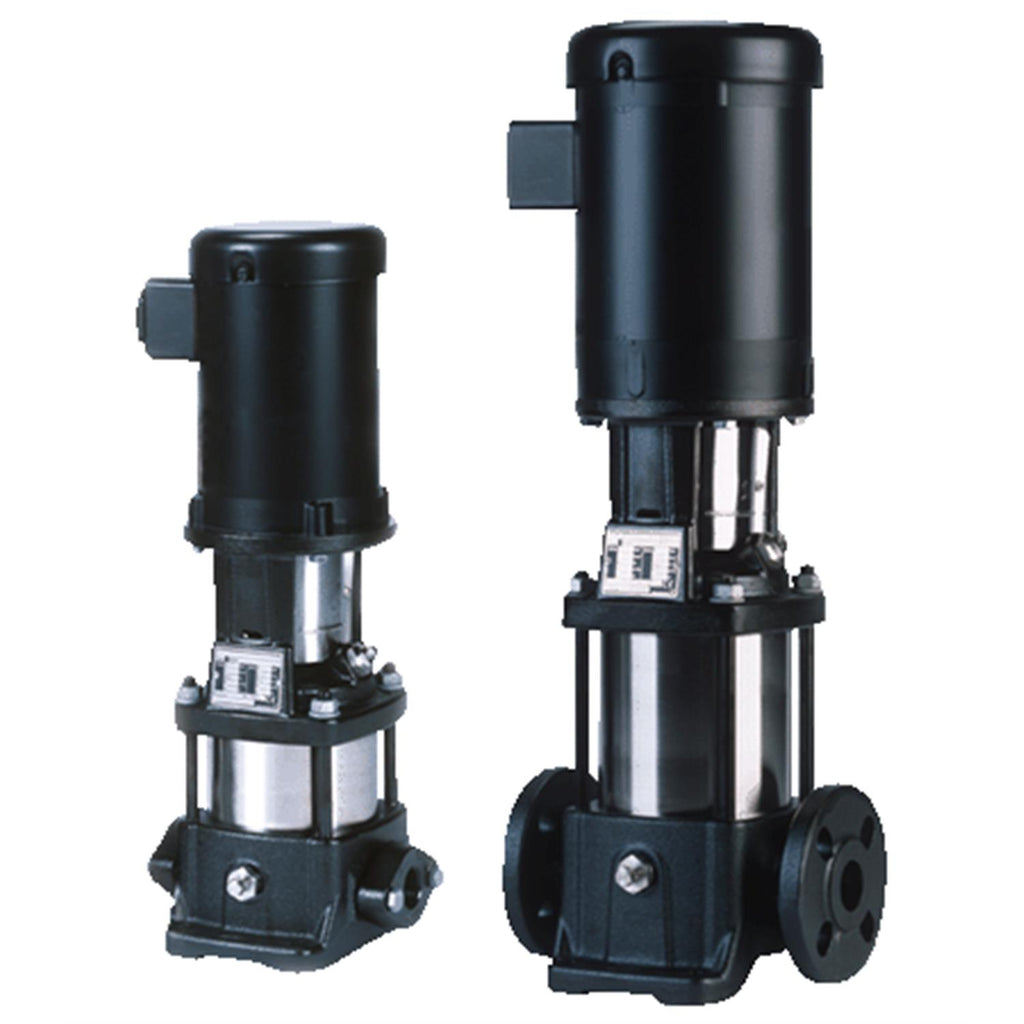

Grundfos 97766065 - CR 5-10 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97766065

Price:
Sale price$7,723.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-10 A-B-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5710624004166
Applications Industrial applications
Actual impeller diameter 73.2 mm
Approvals CURUS
Approvals for drinking water NSF61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Diameter 73.2 mm
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP54
Flange size for motor 182TC
Frequency converter NONE
Full load SF current 27.0-25.0 A
Gross weight 73.0 kg
IE efficiency 0.8
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 16 bar / 120 °C
Maximum ambient temperature 40 °C
Maximum head 99.4 m
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.8
Motor standard NEMA
Motor type BALDOR
Net weight 66.4 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Pressure rating for connection PN 16
Product family CR 5
Pump 3.7 kW
Pump speed on which pump data are based 3457 rpm
Pump version A
Pumped liquid Water
Rated current 24.0-22.0 A
Rated flow 6.9 m³/h
Rated head 73.5 m
Rated power - P2 3.7 kW
Rated speed 3450 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 10
Standard NEMA
Type BALDOR
Type of connection Oval / NPT(F)
Version A

Motor Curves

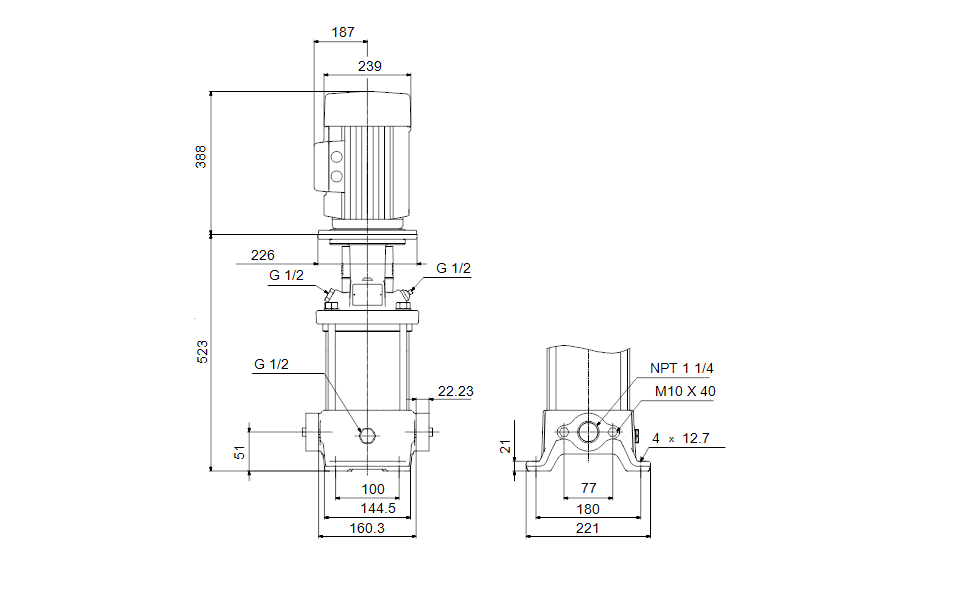

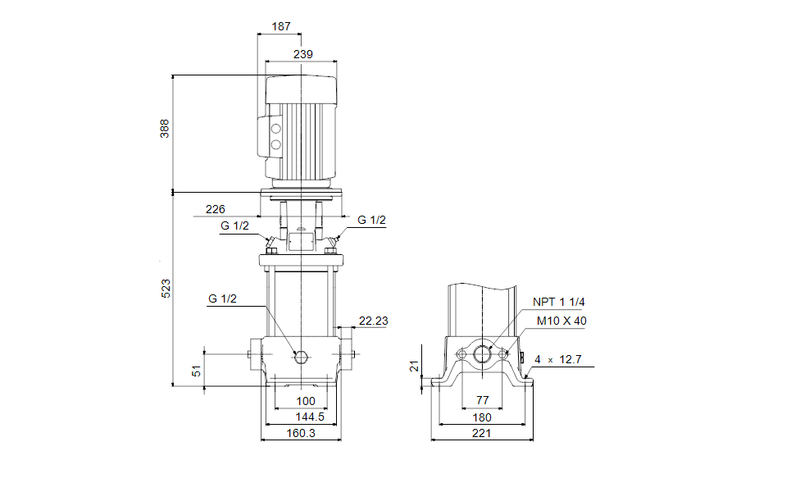

Dimensional Drawing

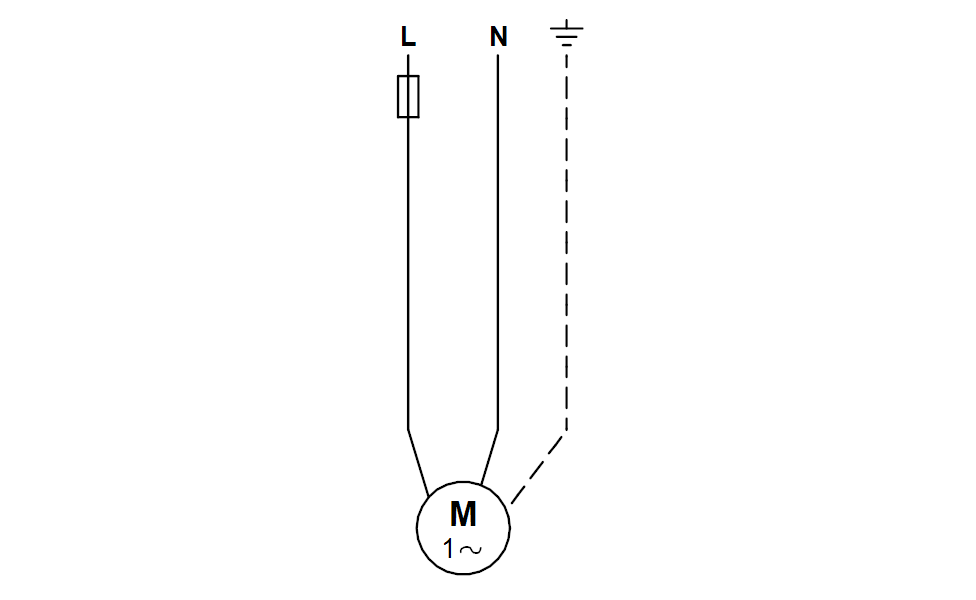

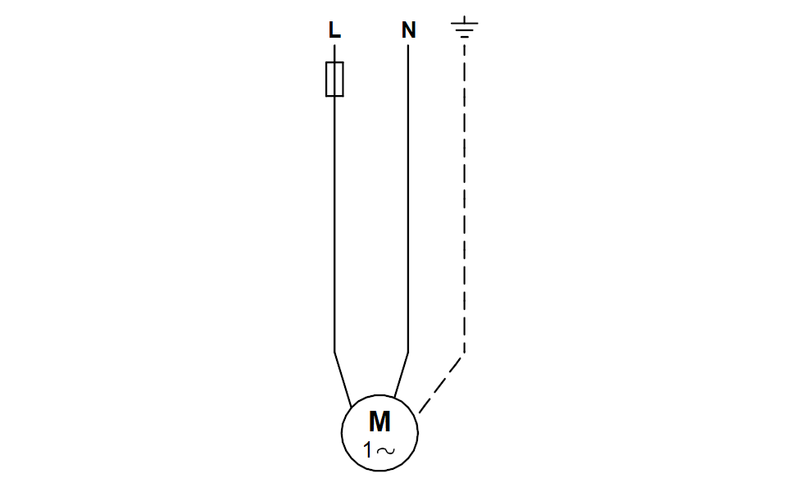

DWiring Diagram
