Grundfos 97569999 - CR 5-10 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,544.22
GRUNDFOSSKU: 97569999

Price:
Sale price$2,063.78 Regular price$3,608.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97569999 - CR 5-10 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 5-10 H-GA-A-E-HQQE is specifically tagged under CR H, CR H Crn H, Cre H, Crne H, and is suitable for horizontal installations.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97569999. If you encounter any difficulties in identifying the correct item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 73.6 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 326.8 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 55.7 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 30.8 US gpm
Rated head 241.5 ft
Rubber E
Sales region USA
Shaft Product name:CR 5-10 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 10
Standard NEMA
Version H

Motor Curves

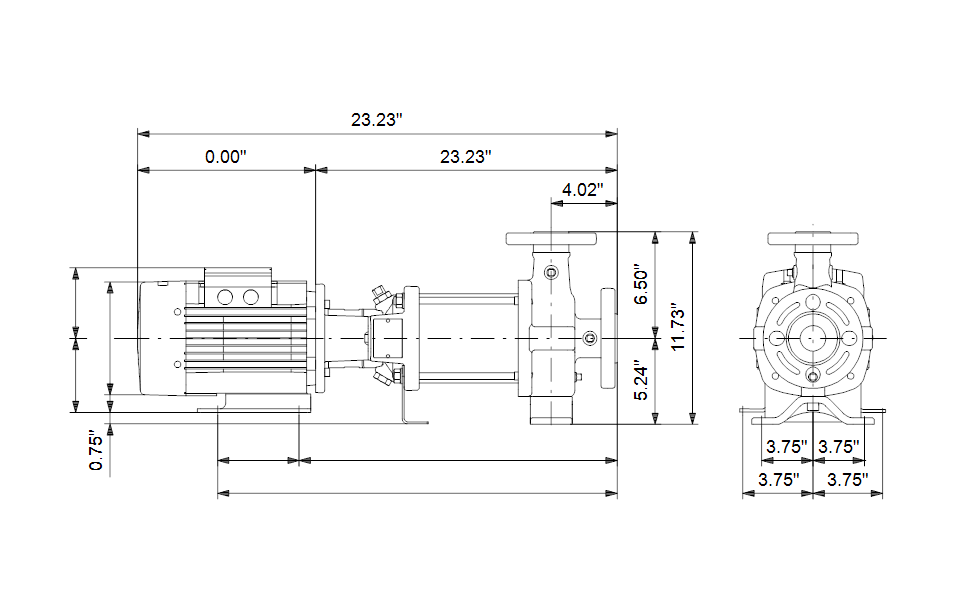

Dimensional Drawing
