Grundfos 96084164 - CR 5-10 A-B-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $1,254.04
GRUNDFOSSKU: 96084164

Price:
Sale price$1,675.96 Regular price$2,930.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-10 A-B-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.

EAN 5700395190021
Applications Industrial applications
Actual impeller diameter 2.88 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code B
Connection Oval / NPT(F)
Connection 2 PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.89
Flange size for motor 182TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 59.6 lb
Impeller Stainless steel
Impellers 10
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Maximum head 326.8 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 45.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 HP
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CR 5
Pump 3 HP
Pump housing Cast iron
Pump inlet 1.25
Pump outlet 1.25
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 241.8 ft
Rated head 2 241.8 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 10
Standard NEMA
Type of connection Oval / NPT(F)
Version A

Motor Curves

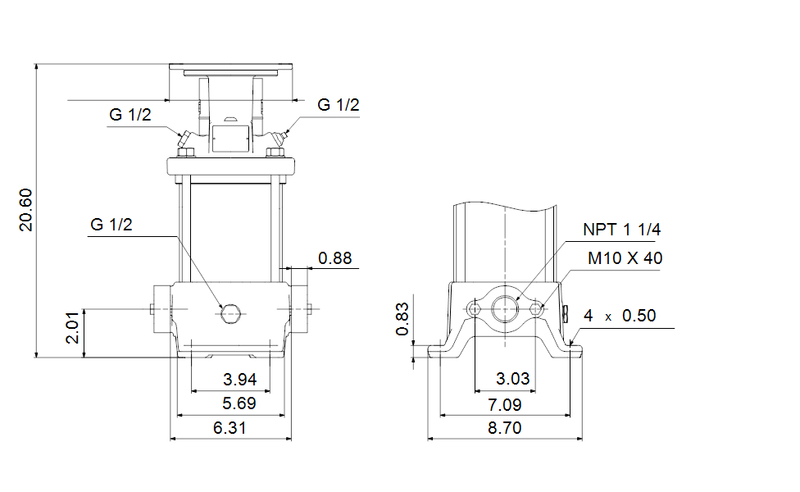

Dimensional Drawing
