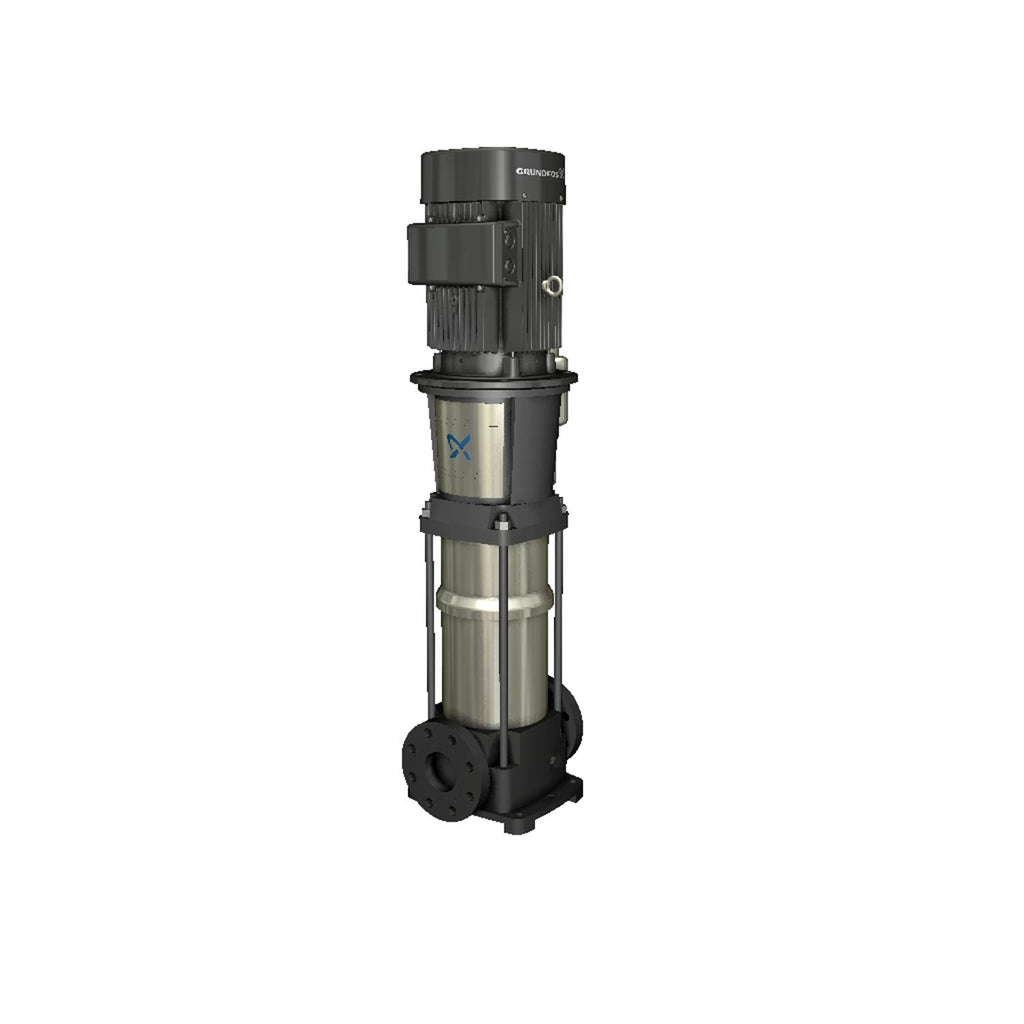

Grundfos 92604888 - CR 45-8-1 F-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92604888

Price:
Sale price$66,165.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92604888 is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling where reliable high-pressure delivery is required. Technicians and facilities managers use this model in systems that need compact, in-line multistage performance.

Key features

  • Vertical multistage centrifugal design for compact, axial installation
  • Suitable for high-pressure and in-line applications, per product tagging
  • Offers consistent pressure staging for dependable system operation

Applications

Ideal for boiler feed, high-pressure water supply, process systems, and other industrial circulation duties where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92604888

EAN 5715116952338
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 364TC
Frequency converter NONE
Gross weight 1380.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -22 .. 302 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 302 °F
Maximum ambient temperature 104 °F
Maximum head 946.2 ft
Maximum operating pressure 25 bar
Model B
Motor 364TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1130.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 45 kW
Power factor 1 0.9
Pressure rating for connection PN 40
Pressure sensor N
Pump 45 kW
Pump speed on which pump data are based 3550 rpm
Pump version F
Pumped liquid Water
Rated current 134/67 A
Rated flow 238 US gpm
Rated head 768.4 ft
Rated power - P2 45 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 8
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version F

Motor Curves

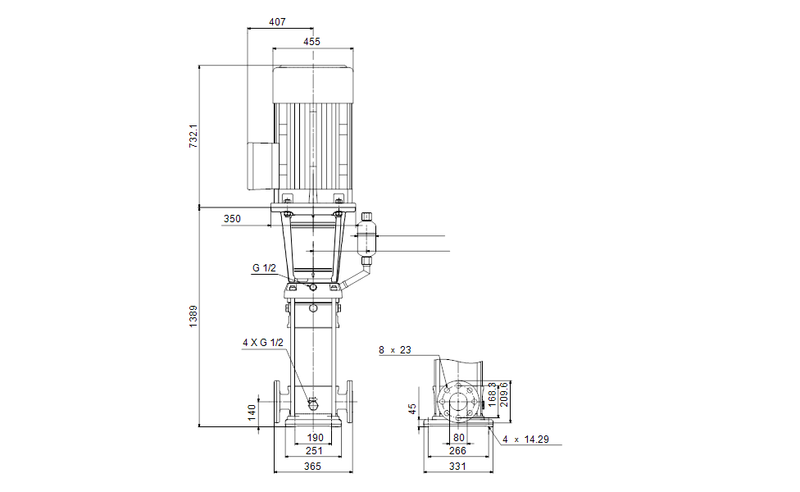

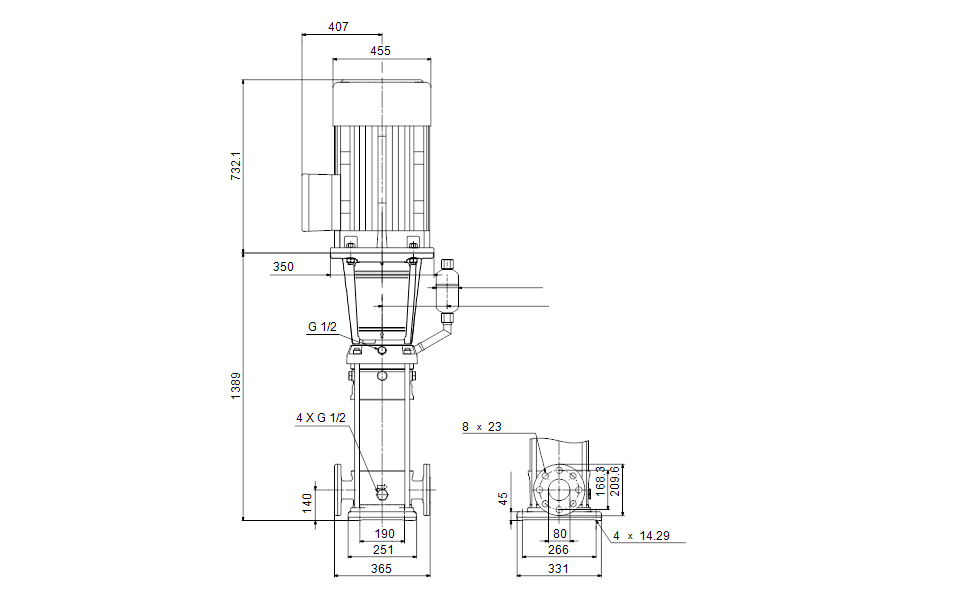

Dimensional Drawing

DWiring Diagram
