Grundfos 92573639 - CR 45-8-1 FK-G-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92573639

Price:
Sale price$67,280.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

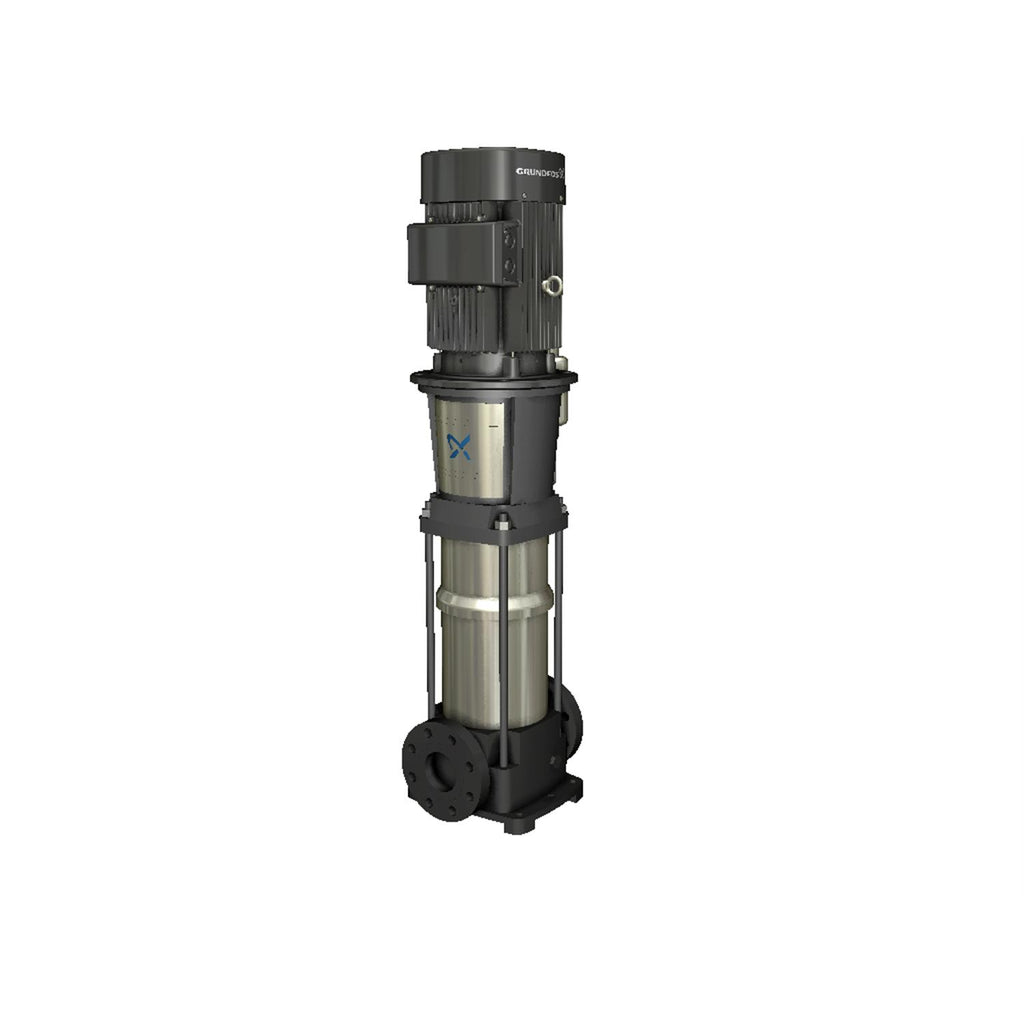

CR 45-8-1 FK-G-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715116477176
Actual impeller diameter 5.37 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 364TC
Frequency converter NONE
Gross weight 1380.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 946.2 ft
Maximum operating pressure 25 bar
Model B
Motor 364TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1130.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 45 kW
Power factor 1 0.9
Pressure rating for connection PN 40
Pressure sensor N
Pump 45 kW
Pump speed on which pump data are based 3550 rpm
Pump version FK
Pumped liquid Water
Rated current 134/67 A
Rated flow 238 US gpm
Rated head 768.4 ft
Rated power - P2 45 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 8
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version FK

Motor Curves

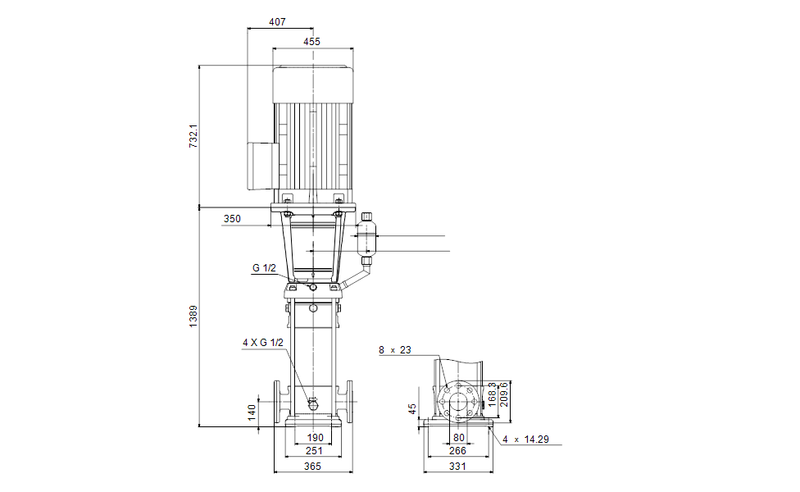

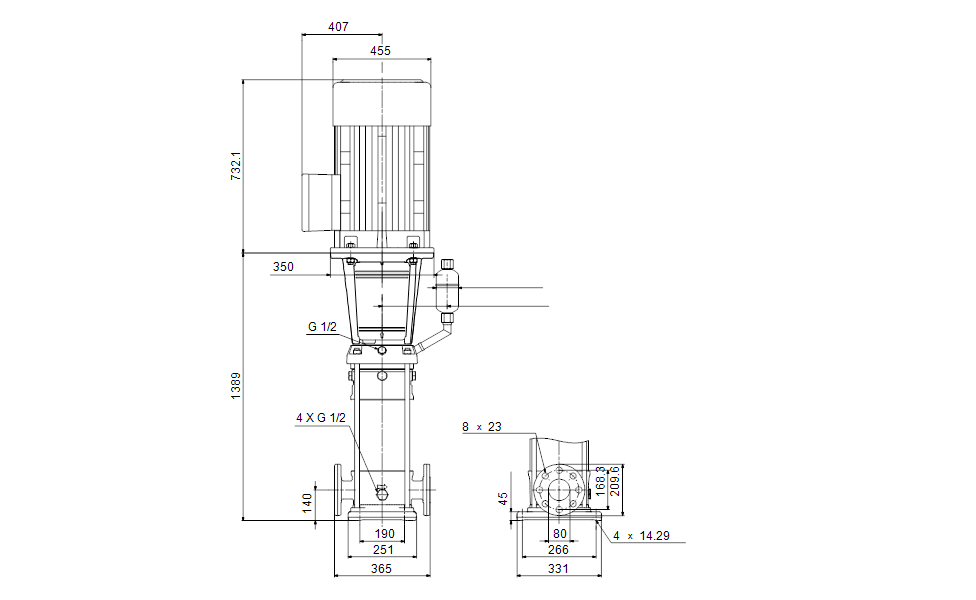

Dimensional Drawing

DWiring Diagram
