Grundfos 96122962 - CR 45-6 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96122962

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

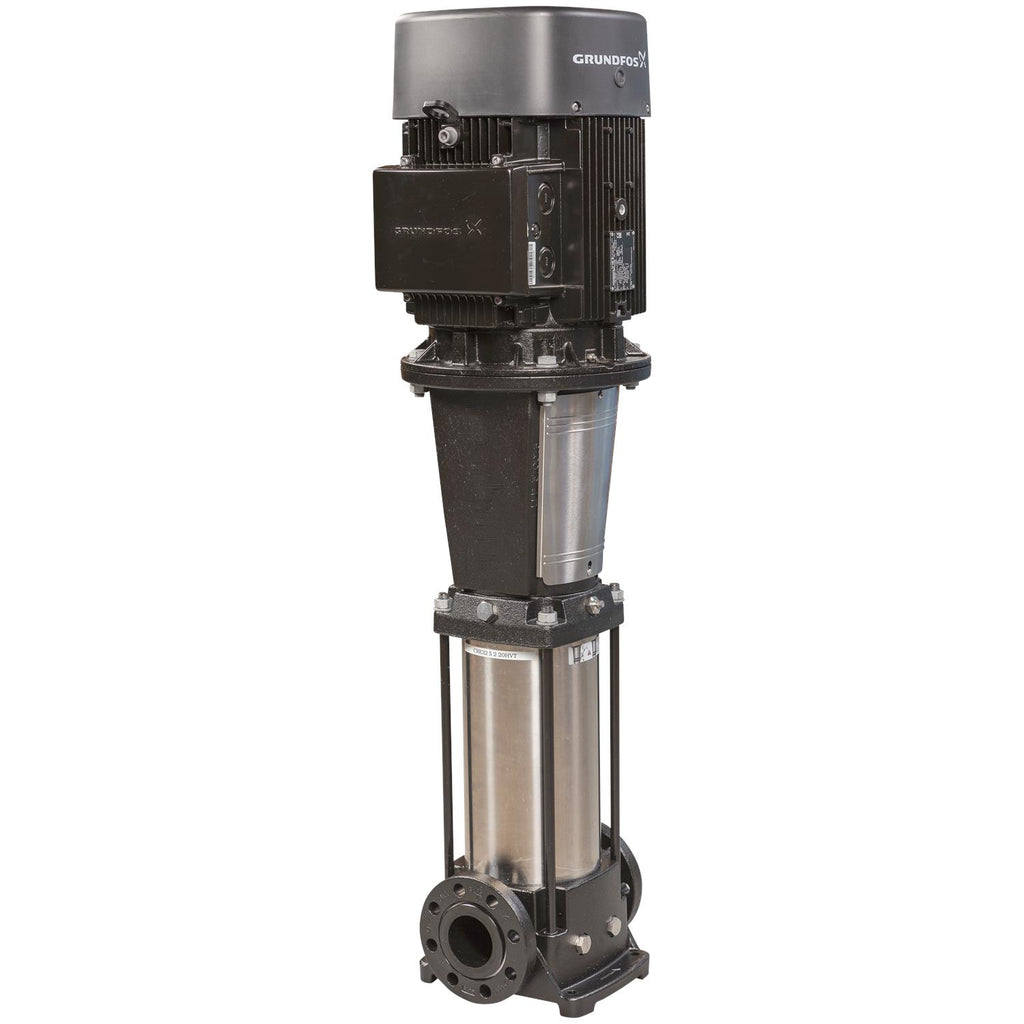

CR 45-6 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700396690070
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FF350
Frequency converter NONE
Gross weight 845.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 131 °F
Maximum head 723.8 ft
Maximum operating pressure 30 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF350
Motor efficiency at 1/2 load 92.3-92.3 %
Motor efficiency at 3/4 load 93.1-93.1 %
Motor efficiency at full load 1 93.0-93.0 %
Motor standard IEC
Motor type SIEMENS
Net weight 759.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 37 kW
Power factor 1 0.88
Pressure rating for connection PN 40
Product family CR 45
Pump 37 kW
Pump speed on which pump data are based 3566 rpm
Pump version A
Pumped liquid Water
Rated current 57 A
Rated flow 238 US gpm
Rated head 579.1 ft
Rated power - P2 37 kW
Rated speed 3560 rpm
Rated voltage 3 x 440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 6
Standard IEC
Starting current 760-760 %
Support bearing Graflon
Terminal box position 6
Type SIEMENS
Type of connection DIN
Version A
