Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE
Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE
Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE
Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE
Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE
Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE

Grundfos 99968343 - CR 45-4-2 K-G-A-E-HQQE

Save $12,484.32
GRUNDFOSSKU: 99968343
Price:
$13,524.68 $26,009.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CR 45-4-2 K-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114889407
Applications Industrial applications
Material Pricing Group 3L
Motor efficiency at full load 1 0.924
IE Efficiency class IE3 / NEMA Premium
Code for rubber E
Maximum ambient temperature 104 °F
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 232 psi / 250 °F
Maximum operating pressure 232.06 psi
Power factor 1 0.88
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 SIC
Pressure rating PN 16
Rated voltage 3 x 230/460 V
Flange size for motor 324TC
Pumped liquid Water
Starting current 6.3
Pump outlet 3
Pump inlet 3
Connect code G
Liquid temperature range -22 .. 248 °F
Insulation class (IEC 85) F
IE efficiency IE3 92,4%
Motor efficiency at 1/2 load 0.917
Built-in motor protection NONE
Net weight 721.0 lb
Number of poles 2
Rated speed 3560 rpm
Gross weight 739.0 lb
Rated power - P2 40 HP
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 40 HP
Pressure rating for connection PN 16
Motor efficiency at 3/4 load 0.924
Rated current 92.6/46.3 A
Service factor 1.25
Full load SF current 116/57.9 A
Frequency converter NONE
Motor type WEG
DOE Pump Energy Index CL 0.89
Stages 4
Approvals CURUS
Rated flow 238 US gpm
Model B
Version K
Diameter 5.37 in
Cooling IC 411
Motor 324TC
Rubber E
Maximum head 436.7 ft
Motor standard NEMA
Rated head 341.2 ft
Actual impeller diameter 5.37 in
Type WEG
Curve tolerance ISO9906:2012 3B
Impellers 4
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Cast iron
Number of reduced-diameter impellers 2
Flange rating inlet 150 lb
Pump 40 HP
Low NPSH Y
Standard NEMA
Pump version K

Motor Curves

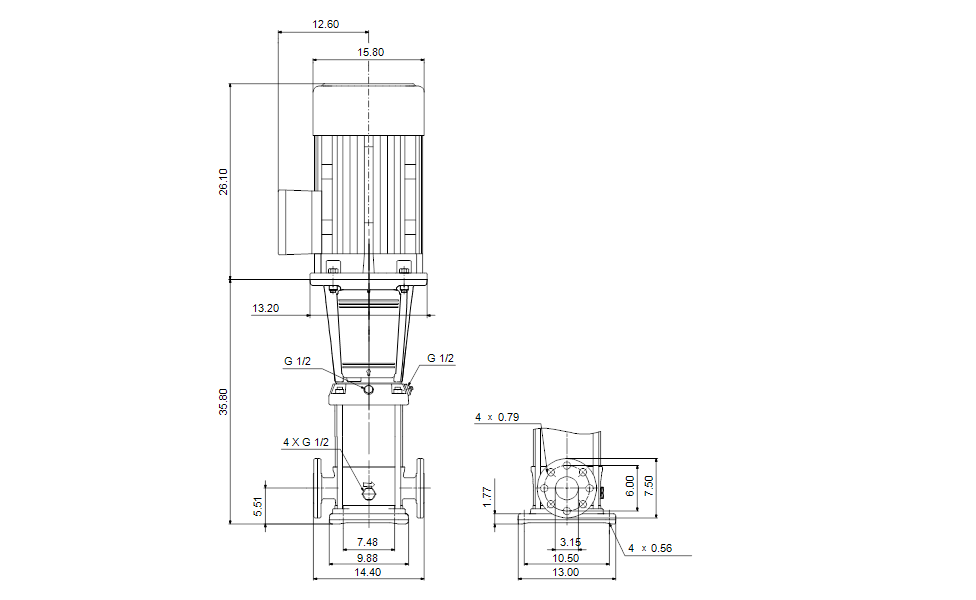

Dimensional Drawing

DWiring Diagram
