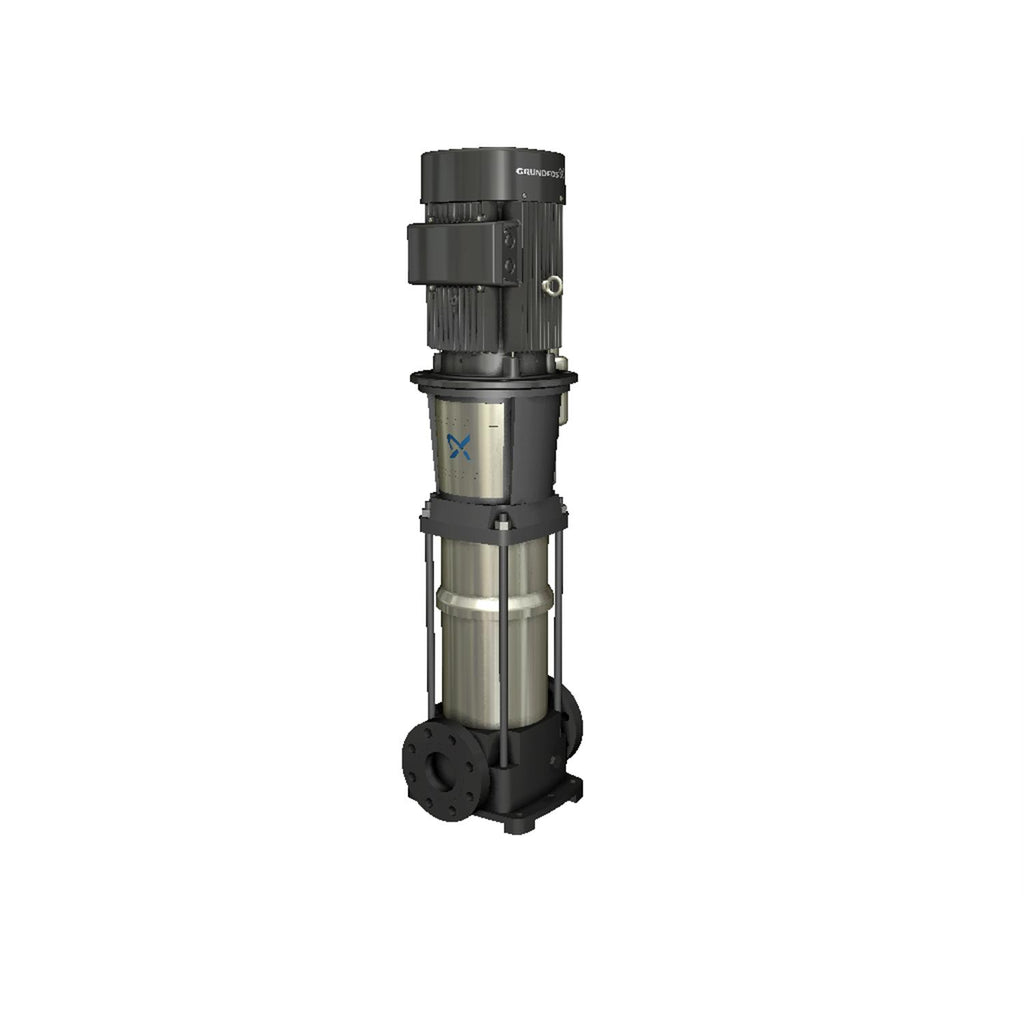

Grundfos 92609415 - CR 45-4-2 F-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92609415

Price:
Sale price$39,652.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos Grundfos 92609415 - CR 45-4-2 F-G-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid transfer. It suits operators and maintenance teams needing high-pressure, in-line pumping for systems where space-saving vertical installation is important.

Key features

  • Manufactured for industrial applications with service-friendly construction
  • Vertical, multi-stage centrifugal design for high-pressure, in-line service
  • Delivers reliable pressure boost and smooth flow for system stability

Applications

Typical uses include high-pressure water supply, boiler feed, pressure boosting, industrial process circulation, and other in-line vertical multistage tasks where compact footprint and sustained pressure are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92609415

EAN 5715117015964
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 637.0 lb
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 302 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 302 °F
Maximum ambient temperature 104 °F
Maximum head 436.7 ft
Maximum operating pressure 25 bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type WEG
Net weight 619.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 22 kW
Power factor 1 0.89
Pressure rating for connection PN 16
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 3541 rpm
Pump version F
Pumped liquid Water
Rated current 67.6/33.8 A
Rated flow 238 US gpm
Rated head 341.2 ft
Rated power - P2 22 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 4
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version F

Motor Curves

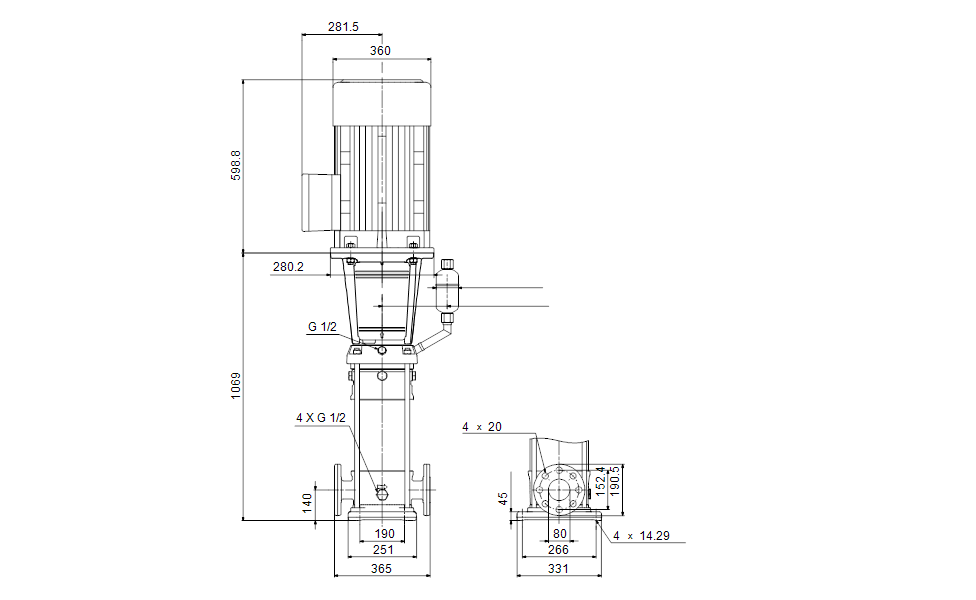

Dimensional Drawing

DWiring Diagram
