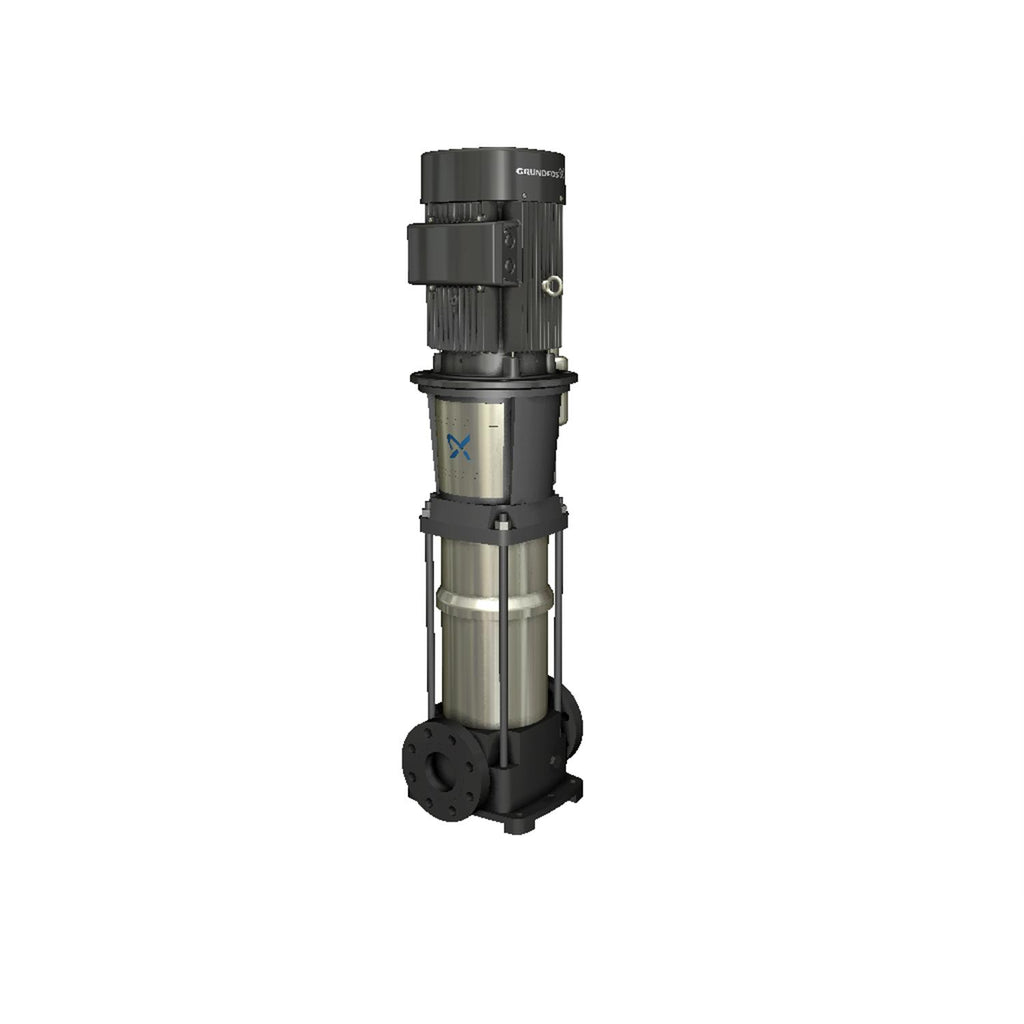

Grundfos 92552283 - CR 45-3-1 F-G-A-V-HUBV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92552283

Price:
Sale price$33,520.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92552283 - CR 45-3-1 F-G-A-V-HUBV is a vertical multistage centrifugal pump suited for industrial high-pressure in-line systems. This compact replacement unit serves maintenance technicians and plant operators needing reliable pressure boosting or process circulation.

Key features

  • Vertical multistage centrifugal design for compact footprint
  • Service-special configuration aimed at high-pressure, in-line applications
  • Delivers consistent pressure and smooth flow for process stability

Applications

Typical uses include boiler feed, high-pressure water transfer, industrial circulation, and other in-line multistage pumping tasks where space and steady pressure are important.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92552283

EAN 5715116145631
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HUBV
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 226.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range 32 .. 464 °F
Low NPSH N
Material code A
Max pressure at stated temp 232.06 psi / 464 °F
Maximum head 341.6 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 208.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3521 rpm
Pump version F
Rated flow 238 US gpm
Rated head 264.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version F
