Grundfos 96534762 - CR 45-2 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96534762

Price:
Sale price$10,661.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96534762 - CR 45-2 A-F-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial systems. It suits users needing a reliable inline, high-pressure pump for process, booster, or circulation applications.

Key features

  • Engineered for industrial service and built as a multistage, vertical inline centrifugal unit
  • Designed for high-pressure applications and in-line installation per common centrifugal pump configurations
  • Offers staged pumping for efficient flow control and stable system pressure

Applications

Typical uses include process pumping, water booster systems, circulation loops, and other industrial high-pressure or multi-stage vertical installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96534762

EAN 5700397533697
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF300
Frequency converter NONE
Gross weight 208.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum head 246.1 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor standard IEC
Net weight 157.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version A
Pumped liquid Water
Rated flow 238 US gpm
Rated head 187.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 2
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

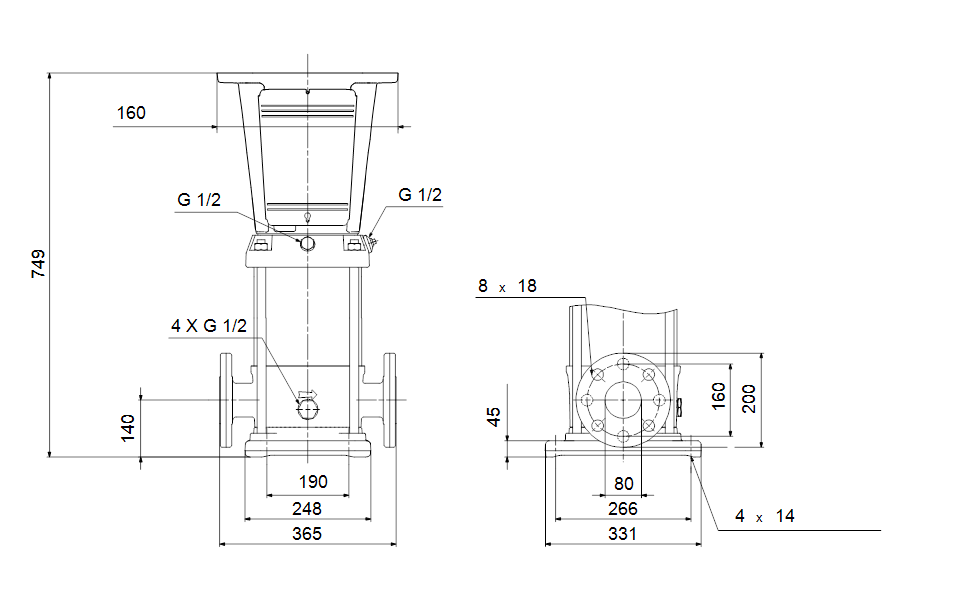

Dimensional Drawing
