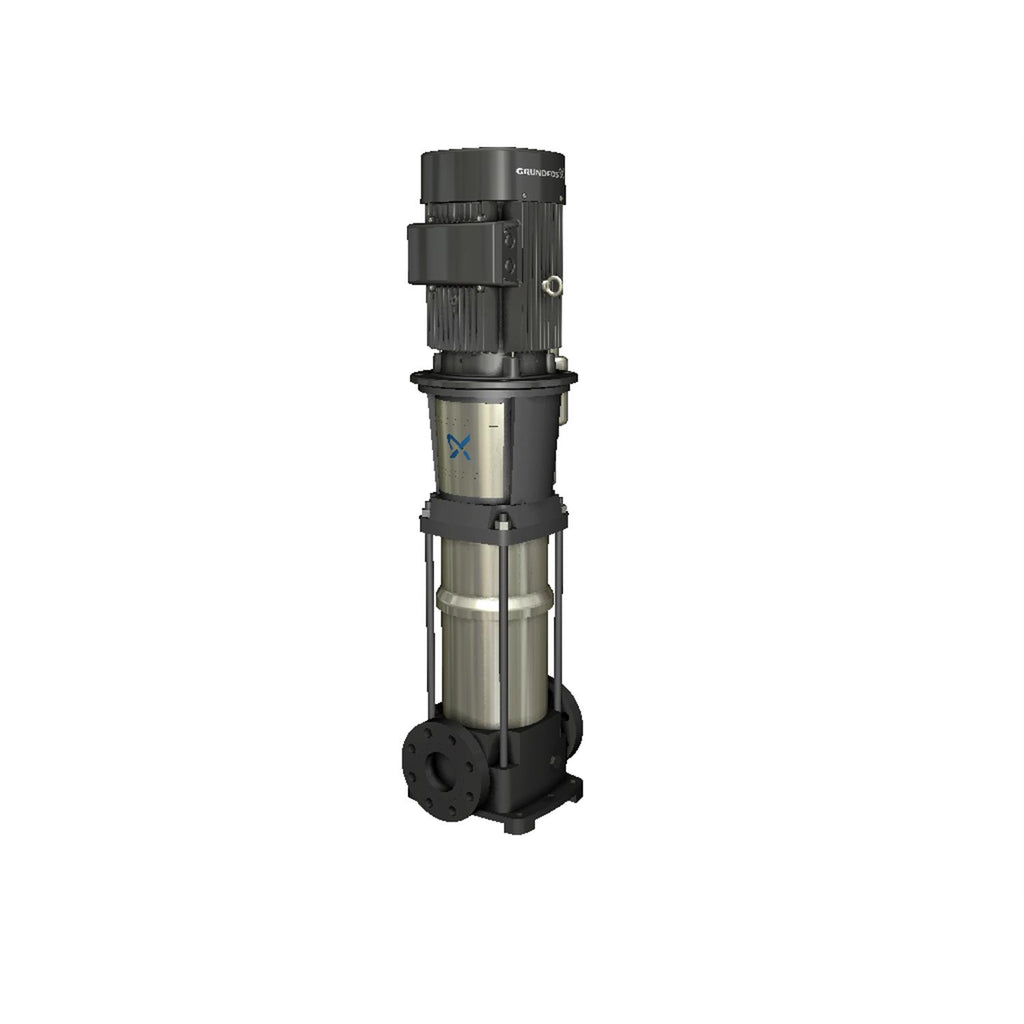

Grundfos 99398927 - CR 32-8-2 BFK-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99398927

Price:
Sale price$37,779.17
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99398927 - CR 32-8-2 BFK-G-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713828474544
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 246.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -22 .. 302 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 302 °F
Maximum head 705.4 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 228.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3541 rpm
Pump version BFK
Rated flow 159 US gpm
Rated head 557.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 8
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version BFK

Motor Curves

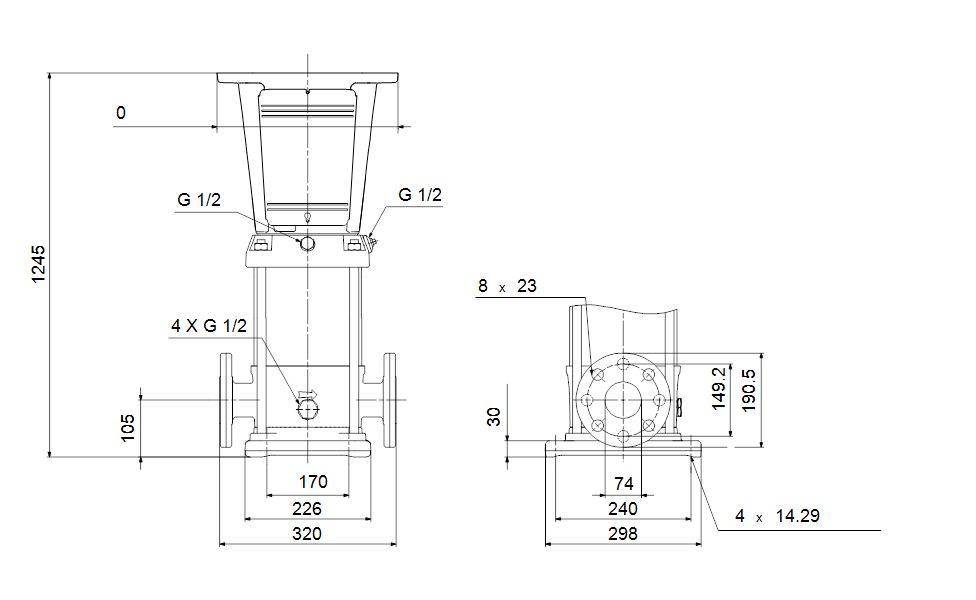

Dimensional Drawing
