Grundfos 96869369 - CR 32-7-2 K-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96869369

Price:
Sale price$30,786.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

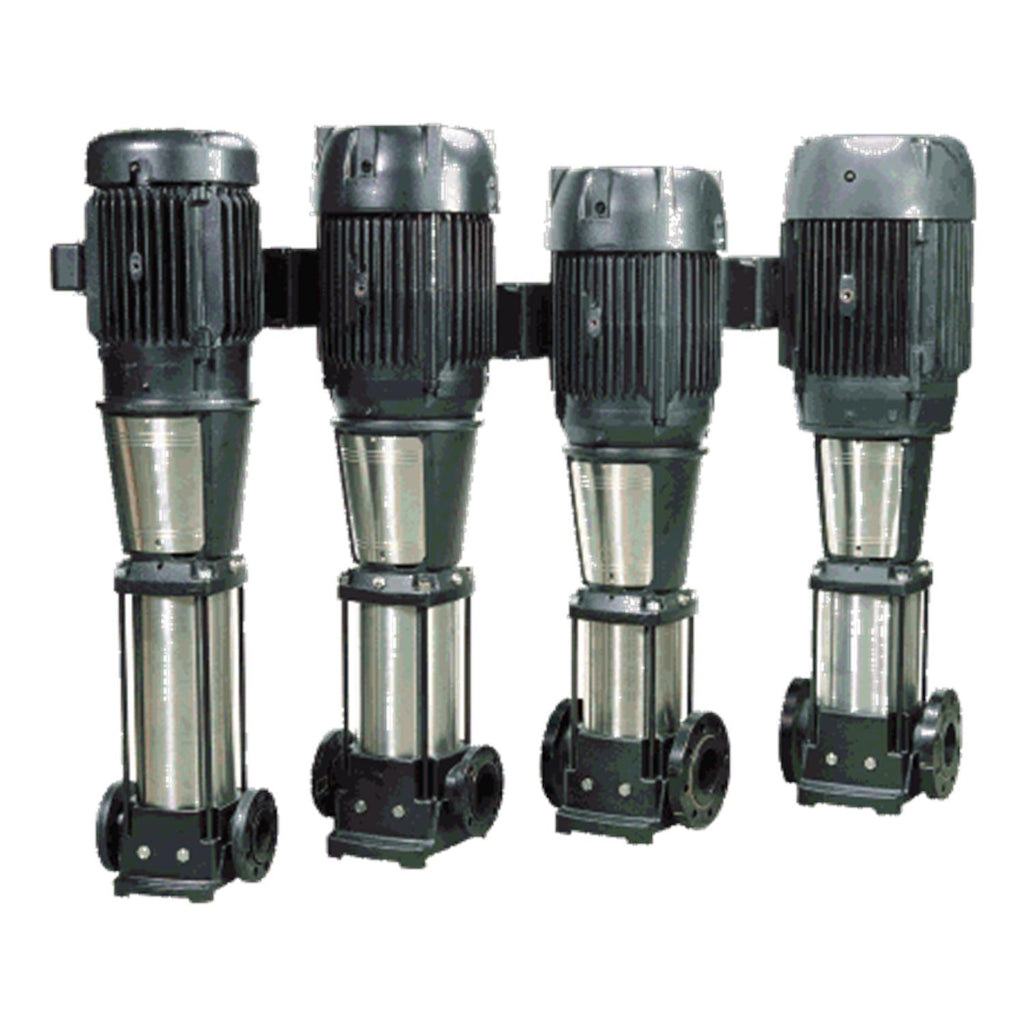

CR 32-7-2 K-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700312349174
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Full load SF current 74/37 A
Gross weight 559.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 609.6 ft
Maximum operating pressure 30 bar
Model B
Motor 284TC
Motor efficiency at full load 1 91-91.7 %
Motor standard NEMA
Motor type BALDOR
Net weight 541.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 22 kW
Pressure rating for connection PN 40
Product family CR 32
Pump 22 kW
Pump speed on which pump data are based 3521 rpm
Pump version K
Pumped liquid Water
Rated current 66/33 A
Rated flow 159 US gpm
Rated head 475.1 ft
Rated power - P2 22 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version K

Motor Curves

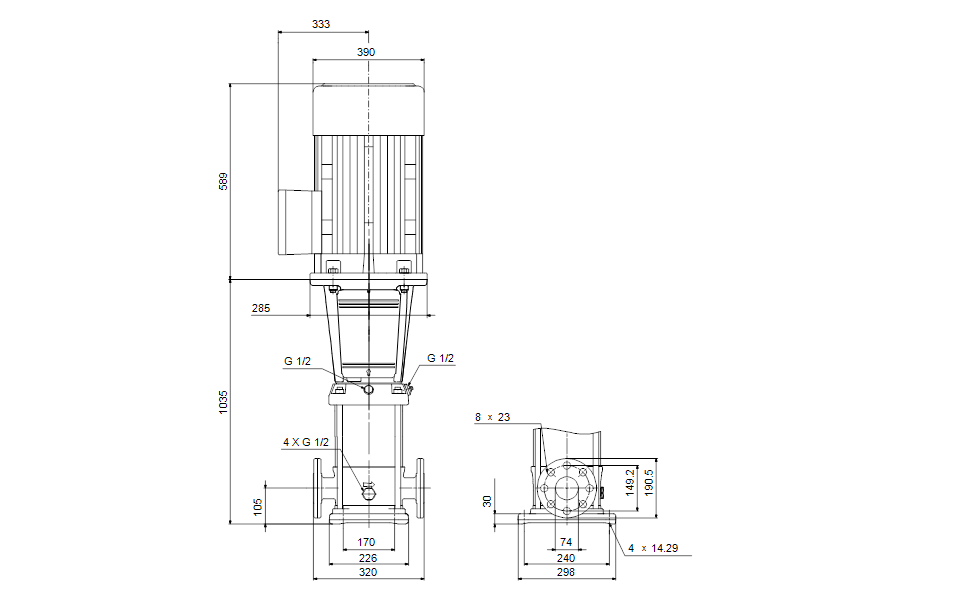

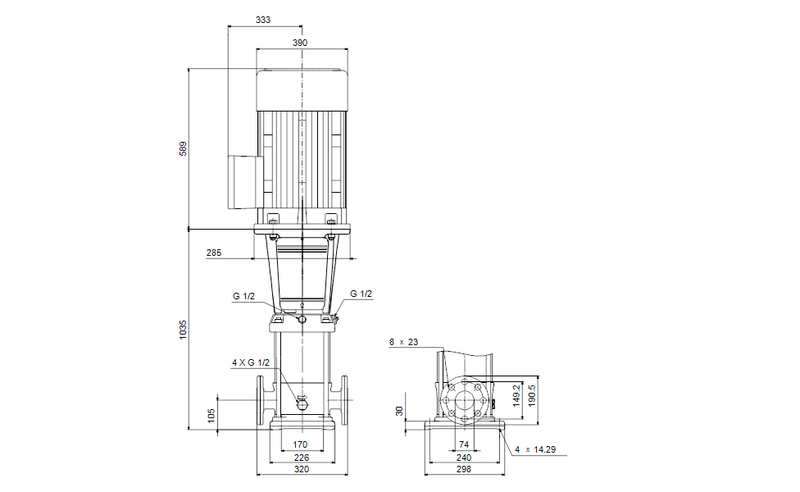

Dimensional Drawing

DWiring Diagram
