Grundfos 98527884 - CR 32-5-2 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98527884

Price:
Sale price$22,747.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98527884 - CR 32-5-2 A-F-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CR 32-5-2 A-F-A-E-HQQE delivers exceptional performance, making it suitable for both commercial and industrial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711496611322
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 447.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 424.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 92.1-91.3 %
Motor efficiency at 3/4 load 91.8-92.3 %
Motor efficiency at full load 1 90.2-91.0 %
Motor standard IEC
Motor type 160BB
Net weight 375.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 15 kW
Power factor 1 0.90-0.86
Pressure rating for connection PN 40
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version A
Pumped liquid Water
Rated current 48
Rated flow 159 US gpm
Rated head 325.1 ft
Rated power - P2 15 kW
Rated speed 3520-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 5
Standard IEC
Starting current 580-890 %
Support bearing Graflon
Type 160BB
Type of connection DIN
Version A

Motor Curves

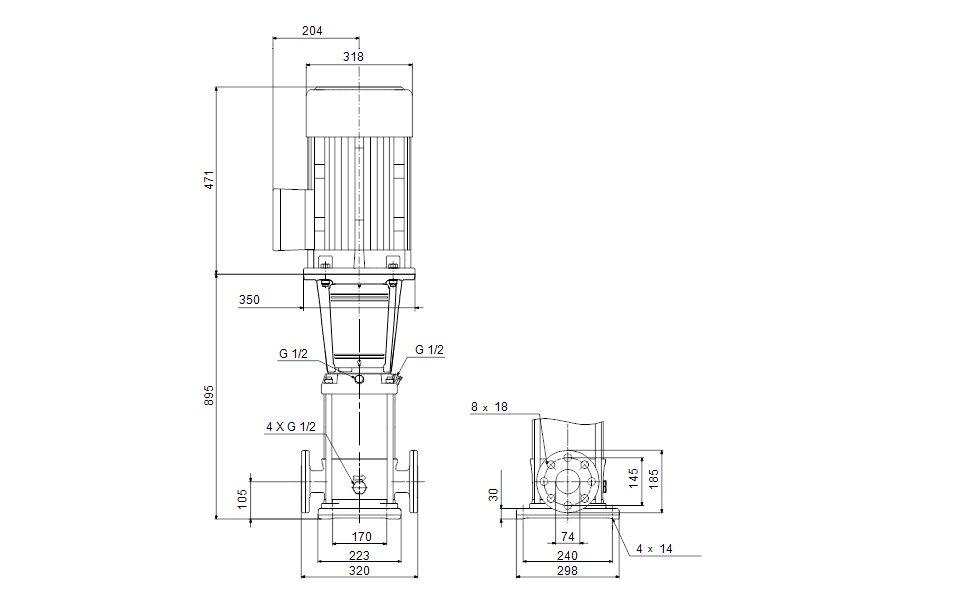

Dimensional Drawing

DWiring Diagram
