Grundfos 97945961 - CR 32-4 HP-G-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97945961

Price:
Sale price$22,636.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

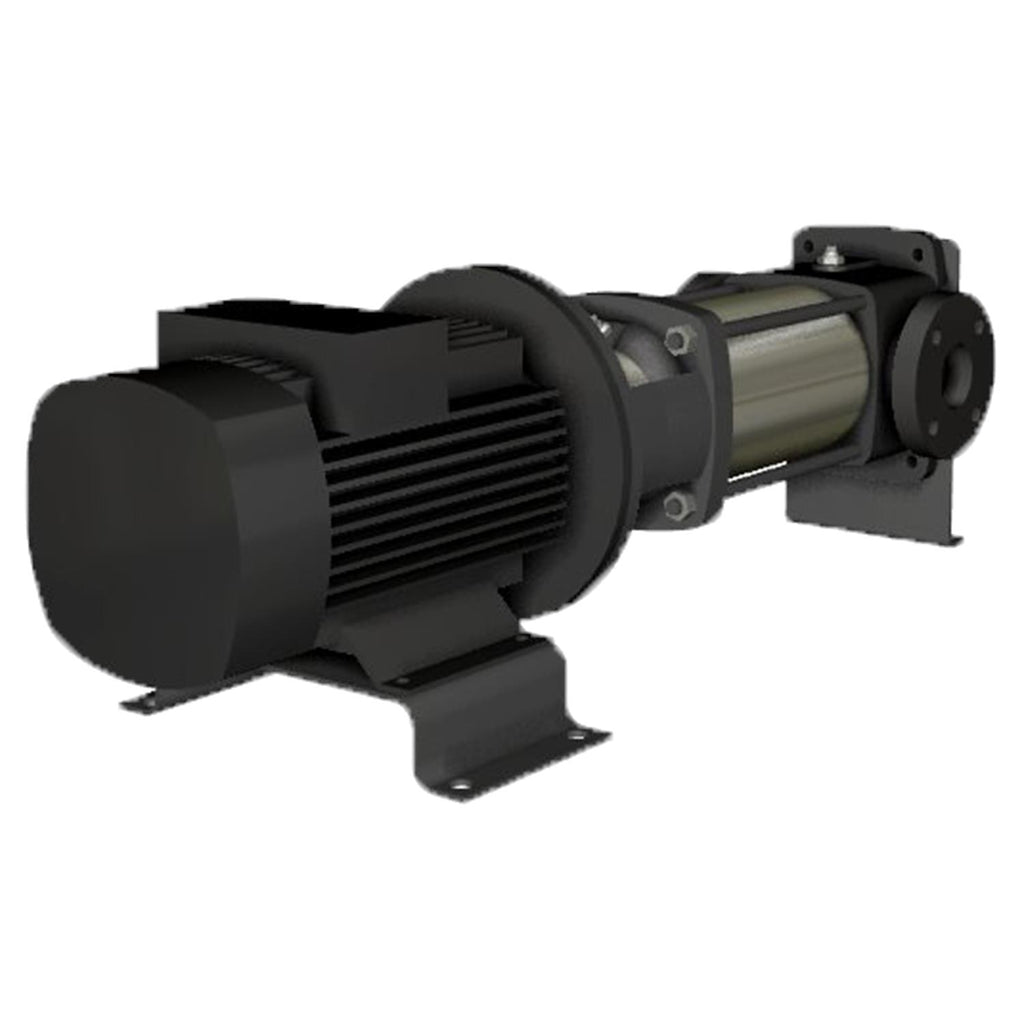

Grundfos 97945961 - CR 32-4 HP-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97945961 - CR 32-4 HP-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model offers exceptional efficiency and reliability, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the CR 32-4 HP-G-A-V-HQQV is perfect for high-pressure applications, ensuring optimal fluid transfer and consistent performance. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their durability and effectiveness in both single and multi-stage configurations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710626907137
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 421.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 370.4 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 403.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version HP
Pumped liquid Water
Rated current 38
Rated flow 159 US gpm
Rated head 286.1 ft
Rated power - P2 11 kW
Rated speed 3510 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 4
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version HP

Motor Curves

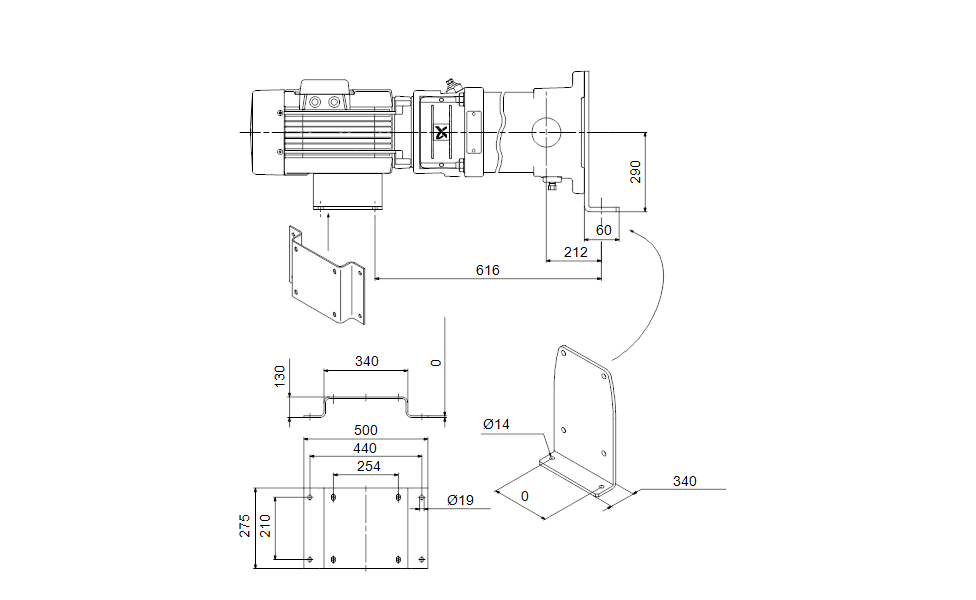

Dimensional Drawing

DWiring Diagram
