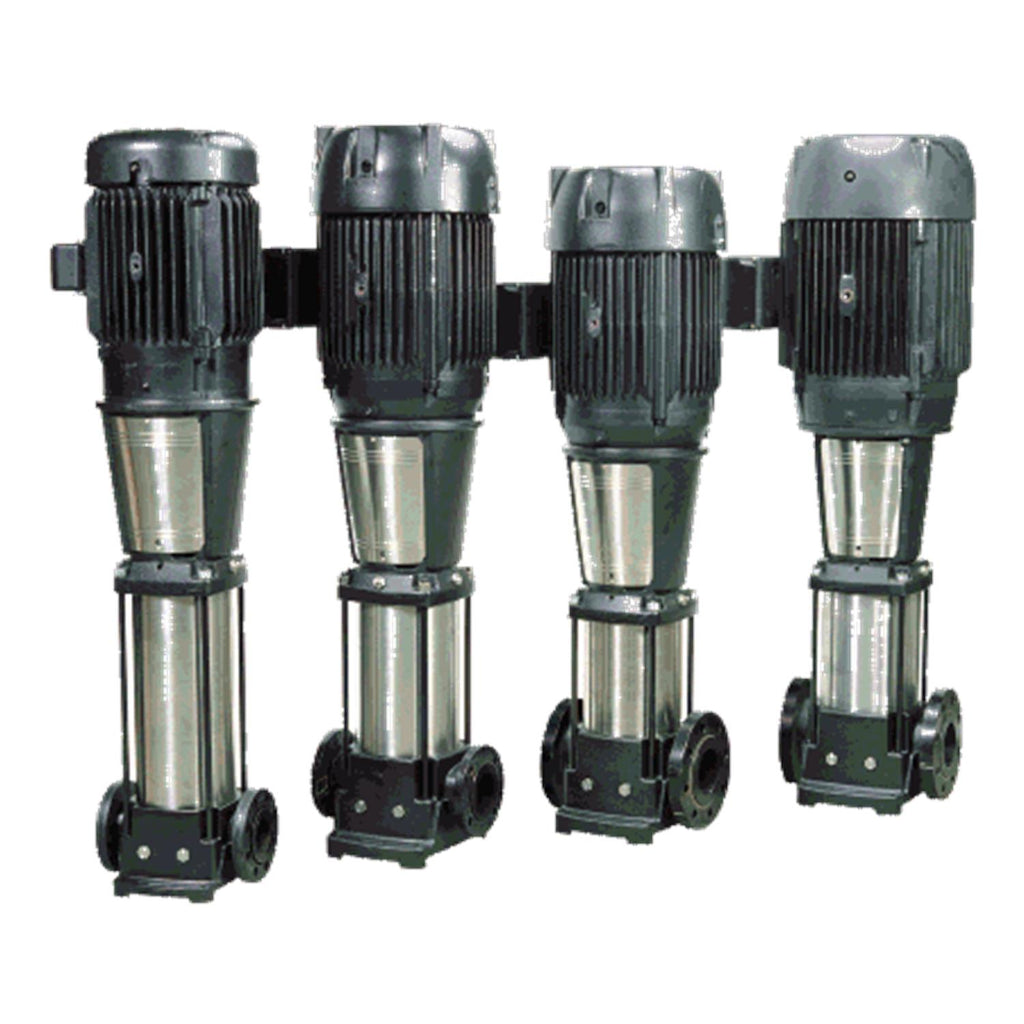

Grundfos 97786855 - CR 32-4-2 K-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97786855

Price:
Sale price$19,197.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 32-4-2 K-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5710624712542
Applications Industrial applications
Actual impeller diameter 118.4 mm
Approvals CURUS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Diameter 118.4 mm
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP54
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Full load SF current 56-50/25 A
Gross weight 211.0 kg
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -30 .. 120 °C
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 16 bar / 120 °C
Maximum ambient temperature 40 °C
Maximum head 101.9 m
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type BALDOR
Net weight 203.0 kg
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 15 kW
Pressure rating for connection PN 16
Product family CR 32
Pump 15 kW
Pump speed on which pump data are based 3444 rpm
Pump version K
Pumped liquid Water
Rated current 48-44/22 A
Rated flow 36 m³/h
Rated head 78.2 m
Rated power - P2 15 kW
Rated speed 3540 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 4
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version K

Motor Curves

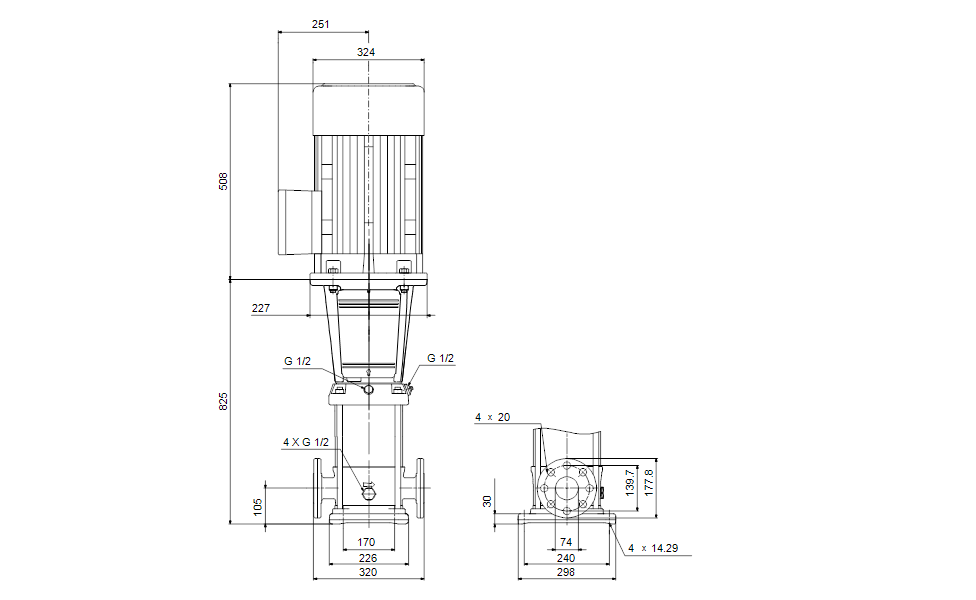

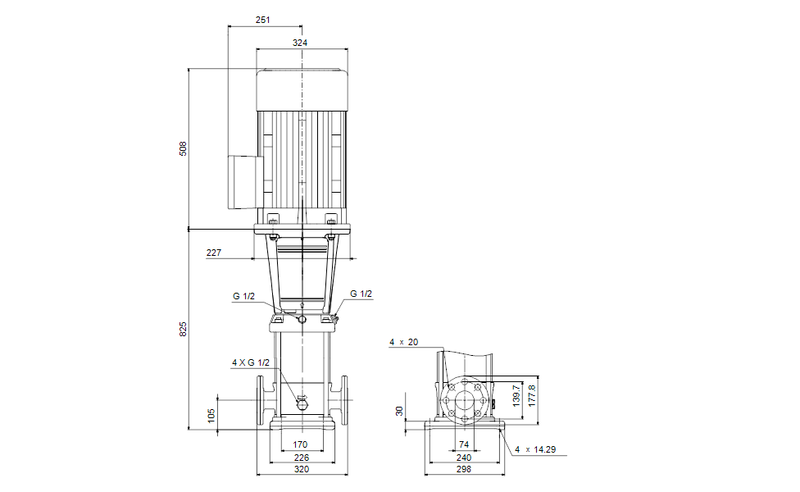

Dimensional Drawing

DWiring Diagram
