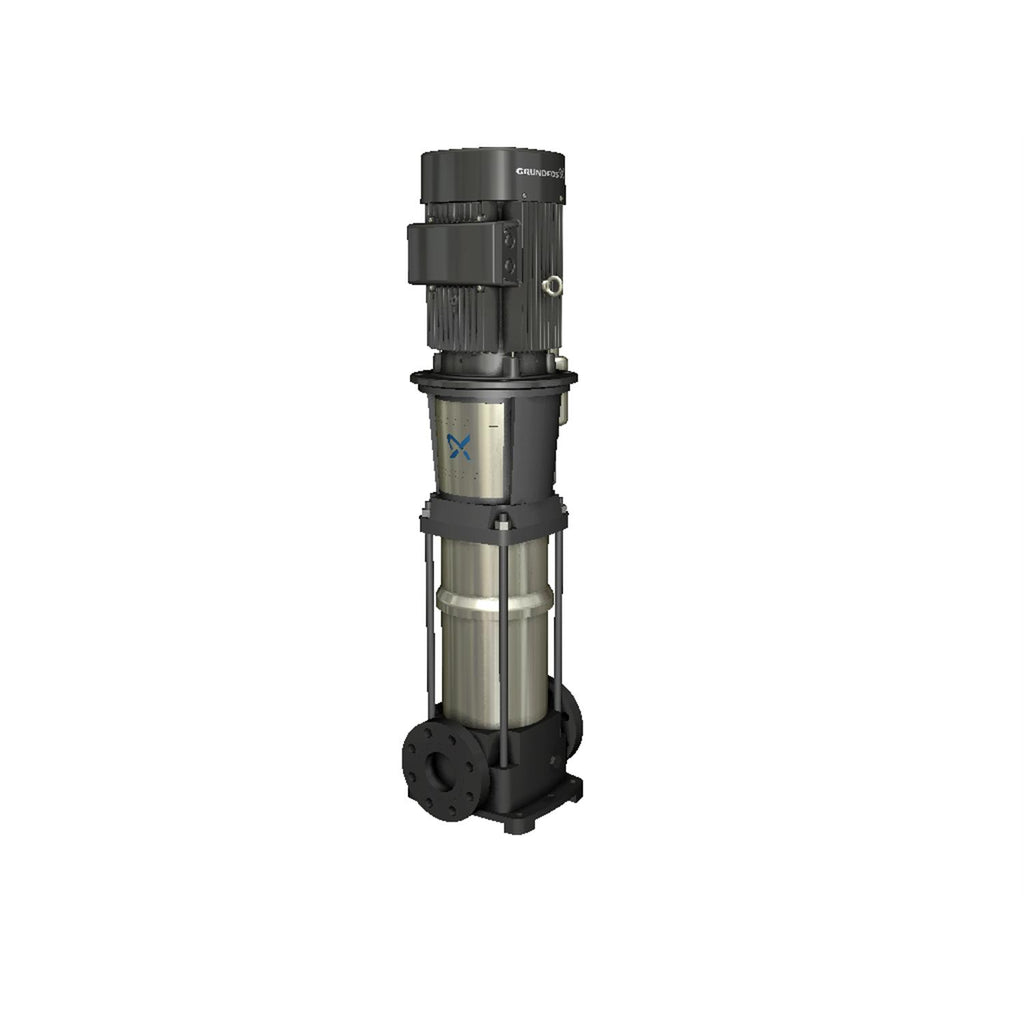

Grundfos 99391700 - CR 32-3-2 F-F-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99391700

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 32-3-2 F-F-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713828363510
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange size for motor 213TC
Frequency converter NONE
Gross weight 294.0 lb
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 241.5 ft
Maximum operating pressure 25 bar
Model B
Motor 213TC
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type BALDOR
Net weight 277.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3470 rpm
Pump version F
Pumped liquid Water
Rated current 0.375
Rated flow 159 US gpm
Rated head 180.1 ft
Rated power - P2 7.5 kW
Rated speed 3500 rpm
Rated voltage 3 x 575 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 3
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection DIN
Version F

Motor Curves

Dimensional Drawing

DWiring Diagram
