Grundfos 96543511 - CR 32-3-2 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96543511

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 32-3-2 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5700398136118
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Flange size for motor FF265
Frequency converter NONE
Gross weight 70.5 kg
Impeller Stainless steel
Impellers 2
Liquid temperature range -30 .. 120 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 16 bar / 120 °C
Maximum head 51.1 m
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor standard IEC
Net weight 54.3 kg
Number of reduced-diameter impellers 2
Power (P2) required by pump 5.5 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated flow 30 m³/h
Rated head 38 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 3
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

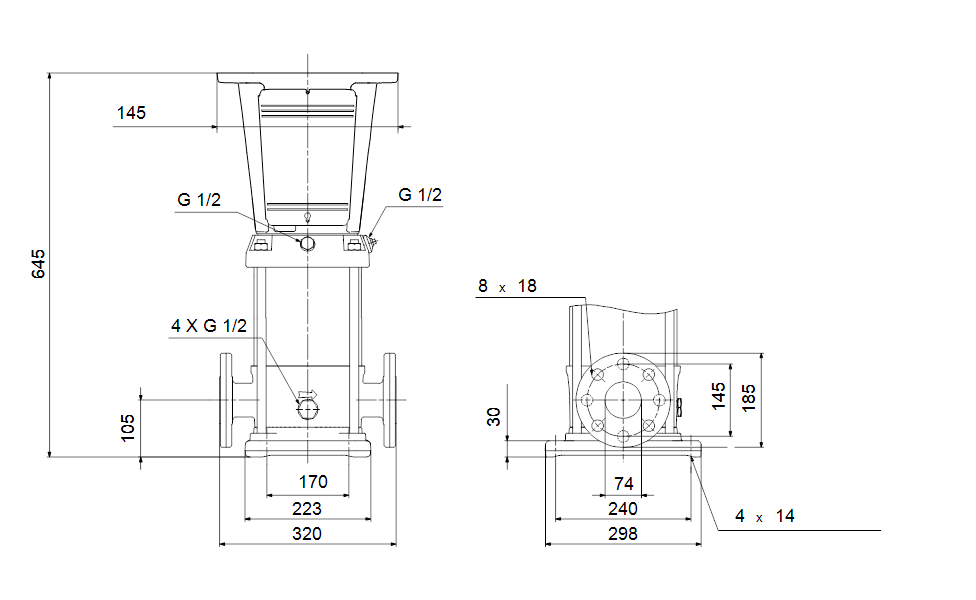

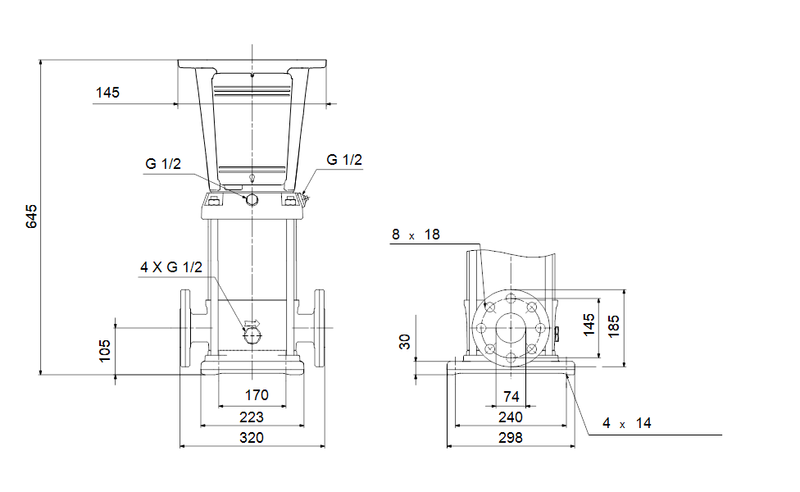

Dimensional Drawing
