Grundfos 96534498 - CR 32-2 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96534498

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96534498 CR 32-2 A-F-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial and commercial fluid handling. It fits inline, high-pressure applications and is commonly used by maintenance, service, and plant operations teams.

Key features

  • Manufactured for industrial applications and service replacement use
  • Vertical, multistage centrifugal design for compact, in-line installation
  • Built for reliable high-pressure operation and consistent flow delivery

Applications

Typical uses include boiler feed, high-pressure water transfer, industrial process circulation, and other inline multistage pumping tasks where space and pressure are considerations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96534498

EAN 5700397518434
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT130
Frequency converter NONE
Gross weight 146.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 129.6 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT130
Motor standard IEC
Net weight 110.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated flow 132 US gpm
Rated head 96.79 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

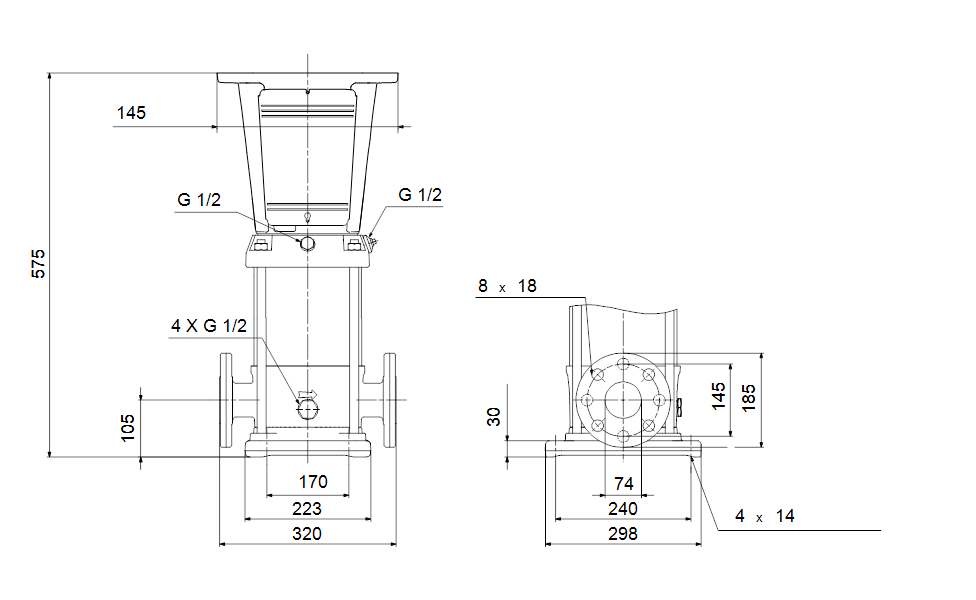

Dimensional Drawing
