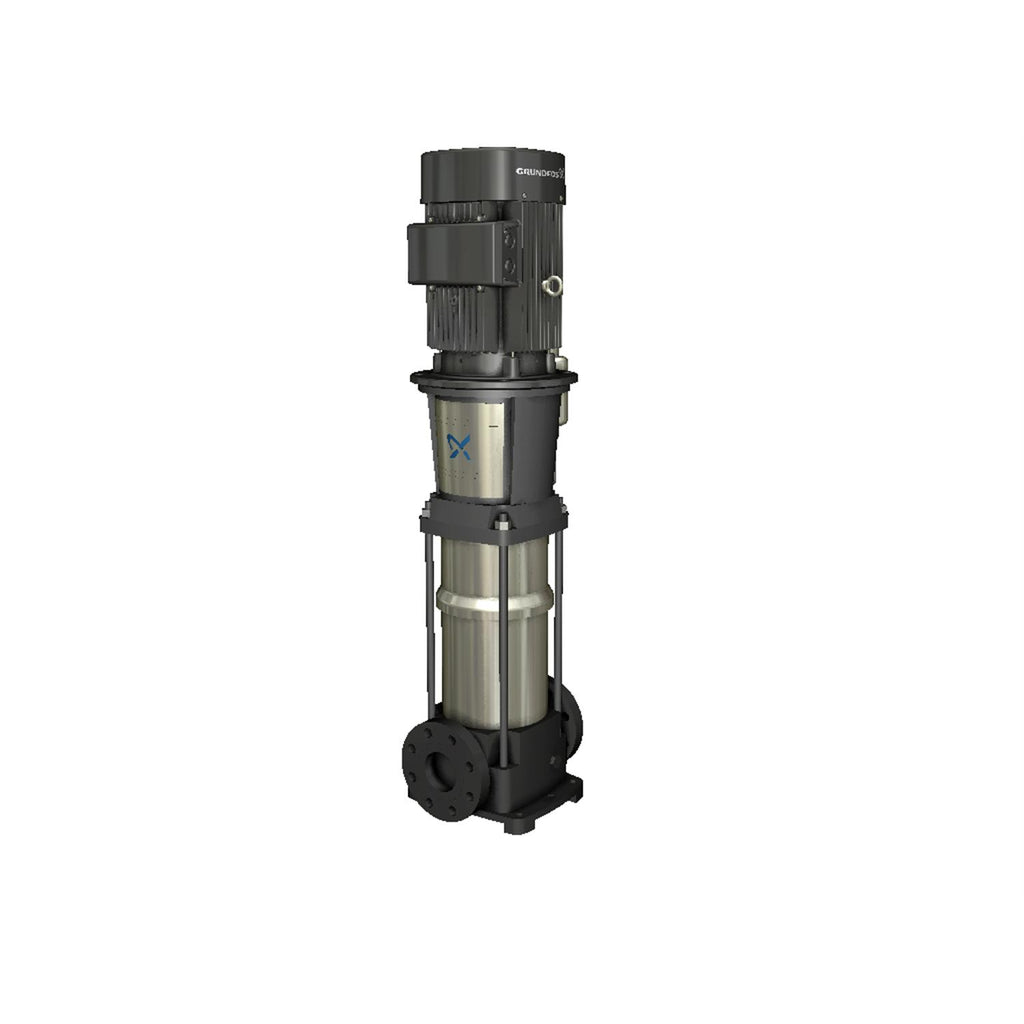

Grundfos 99372636 - CR 32-11-2 F-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99372636

Price:
Sale price$40,204.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99372636 - CR 32-11-2 F-G-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial fluid transfer and high-pressure in-line systems, typically specified by maintenance technicians and plant engineers.

Key features

  • Vertical multistage centrifugal design for compact, high-head performance
  • Configured for in-line, high-pressure service and multi-stage applications
  • Durable construction that supports reliable pump replacement and reduced downtime

Applications

Ideal for industrial process water, boiler feed, high-pressure boosting, and other commercial fluid-handling tasks where a vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99372636

EAN 5713828037169
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 269.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -22 .. 302 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 302 °F
Maximum head 978.1 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 251.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3525 rpm
Pump version F
Rated flow 159 US gpm
Rated head 770.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 11
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version F
