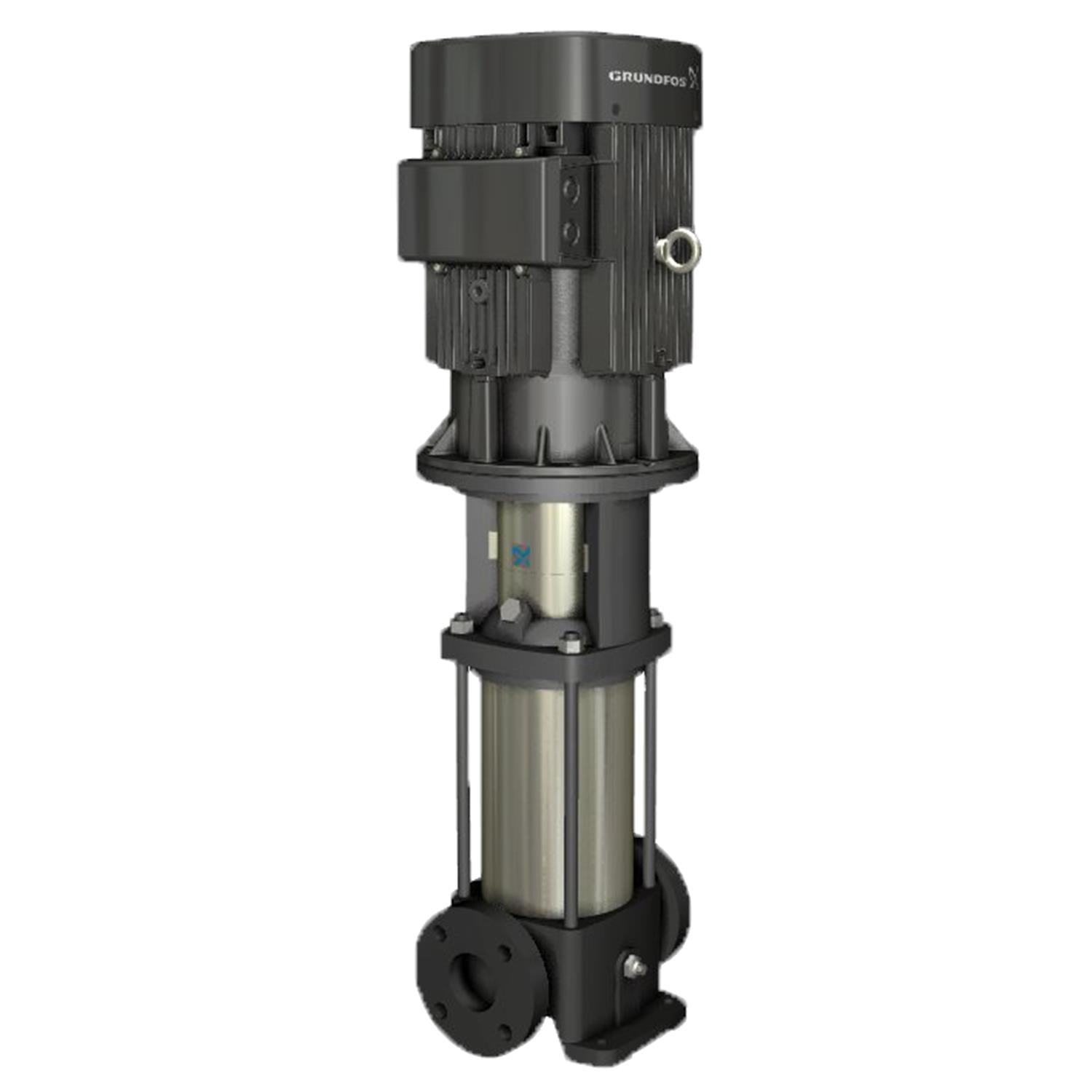

Grundfos 91128008 - CR 3-9 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91128008

Price:
Sale price$3,748.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91128008 is a CR 3-9 K-FGJ-A-E-HQQE vertical multistage centrifugal pump designed for industrial high-pressure inline applications; technicians and service crews use it for process water, boiler feed, and pressure boosting systems.

Key features

  • Vertical, multistage centrifugal design for consistent pressure and compact footprint
  • Listed under service special and high-pressure inline centrifugal tags for maintenance-focused use
  • Delivers reliable staged pumping performance to support continuous industrial or commercial operation

Applications

Suitable for pressure boosting, boiler feed, process water transfer, closed-loop systems, and other industrial fluid-handling tasks where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91128008

EAN 5700395876062
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 60.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum head 283.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 45.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3466 rpm
Pump version K
Rated flow 15.4 US gpm
Rated head 214.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard NEMA
Type of connection DIN / ANSI / JIS
Version K
