Grundfos 99179245 - CR 3-4 B-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99179245

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99179245 CR 3-4 B-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial in-line high-pressure applications, used by maintenance teams and system integrators.

Key features

  • Manufactured for industrial use with a vertical multistage centrifugal configuration
  • Tagged for high-pressure, in-line and multi-stage service specialties
  • Offers reliable high-head performance for boosting and process circulation

Applications

Typical uses include high-pressure water boosting, process circulation, boiler feed, and other vertical multistage in-line pumping needs in commercial and industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99179245

EAN 5712608184789
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 78.5 lb
IE efficiency IE3 77%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 124.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.77
Motor standard NEMA
Motor type BALDOR
Net weight 67.5 lb
Number of poles 2
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3439 rpm
Pump version B
Pumped liquid Water
Rated current 2.9-3
Rated flow 15.4 US gpm
Rated head 90.56 ft
Rated power - P2 0.75 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 4
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version B

Motor Curves

Dimensional Drawing

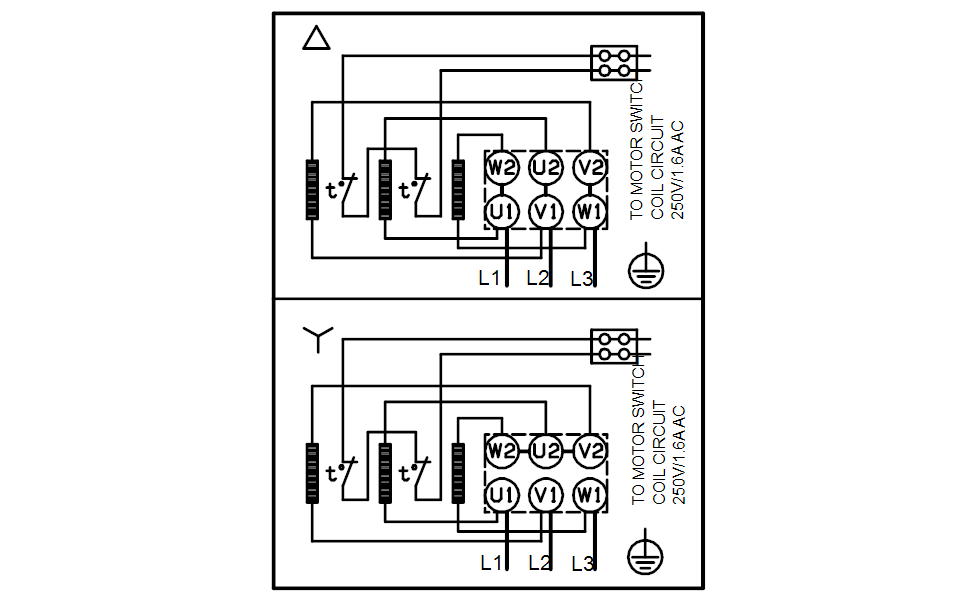

DWiring Diagram
