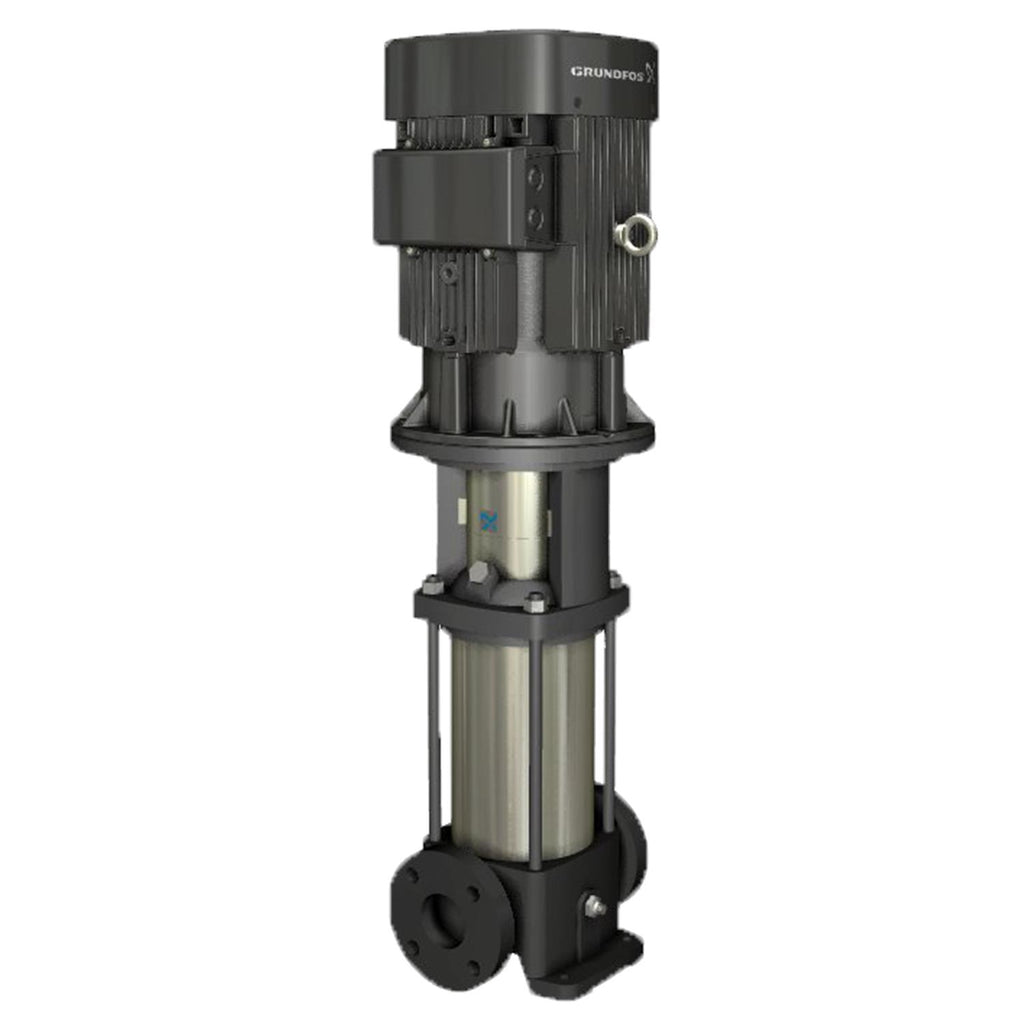

Grundfos 97852437 - CR 3-4 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97852437

Price:
Sale price$2,911.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97852437 - CR 3-4 K-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CR 3-4 K-FGJ-A-E-HQQE model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Single & Multi-Stage and Vertical Multistage types, making it a versatile choice for various operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the reliability and efficiency of the Grundfos 97852437 - CR 3-4 K-FGJ-A-E-HQQE pump today and experience the quality that Grundfos is known for.

EAN 5710625832638
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 51.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum head 124.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 40.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3439 rpm
Pump version K
Rated flow 15.4 US gpm
Rated head 90.56 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 4
Standard NEMA
Type of connection DIN / ANSI / JIS
Version K

Motor Curves

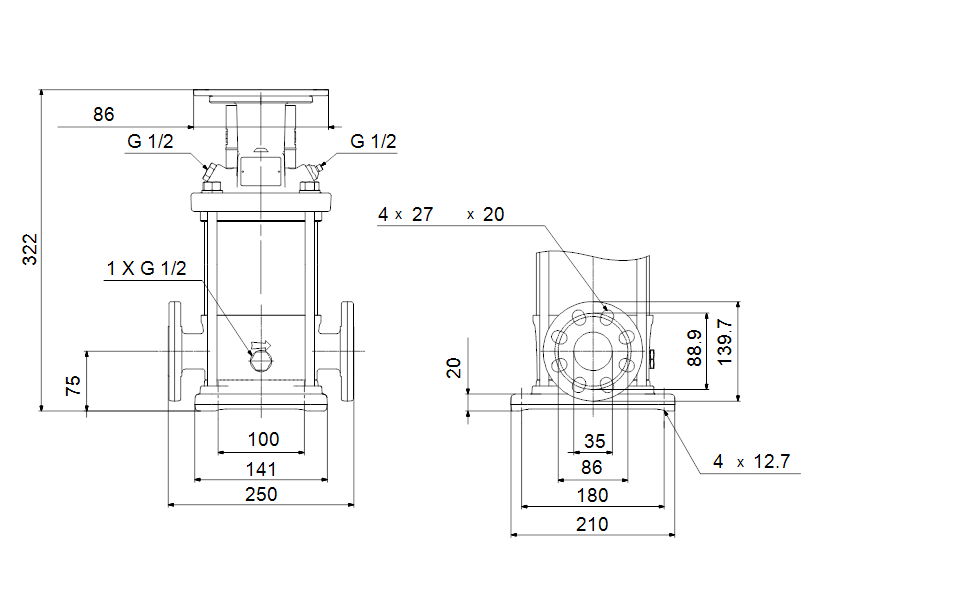

Dimensional Drawing
