Grundfos 98777094 - CR 3-3 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98777094

Price:
Sale price$3,197.22
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98777094 - CR 3-3 A-A-A-E-HQQE is a vertical, multistage centrifugal pump suited for industrial and high-pressure inline systems. It is commonly used by maintenance teams and service technicians for process and water-handling applications.

Key features

  • Designed as a vertical multistage centrifugal unit for space-saving installations
  • Service Special designation for refurbished or shop-ready replacement use
  • Provides reliable high-pressure pumping performance for continuous duty applications

Applications

Typical uses include industrial process water, high-pressure boost, inline system integration, and vertical multistage pumping where compact footprint and steady flow are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98777094

EAN 5712601231596
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT85
Frequency converter NONE
Gross weight 45.4 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 94.16 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 82.5-79.5 %
Motor efficiency at 3/4 load 83.0-83.0 %
Motor efficiency at full load 1 76.8-76.8 %
Motor standard IEC
Motor type 71BA
Net weight 39.5 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.85-0.76
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated current 2
Rated flow 15.4 US gpm
Rated head 68.9 ft
Rated power - P2 0.55 kW
Rated speed 3390-3460 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 3
Standard IEC
Starting current 500-600 %
Type 71BA
Type of connection Oval / Rp
Version A

Motor Curves

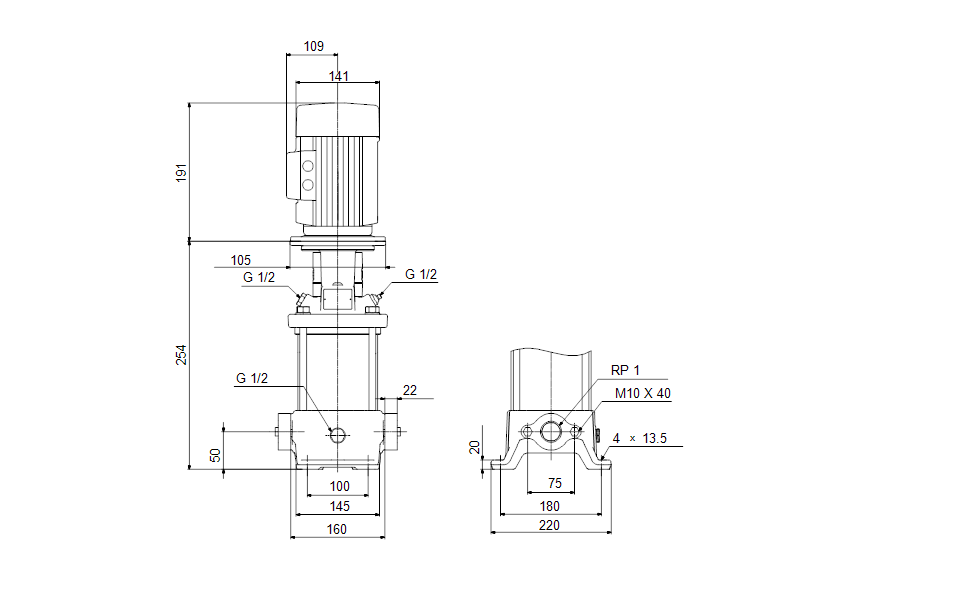

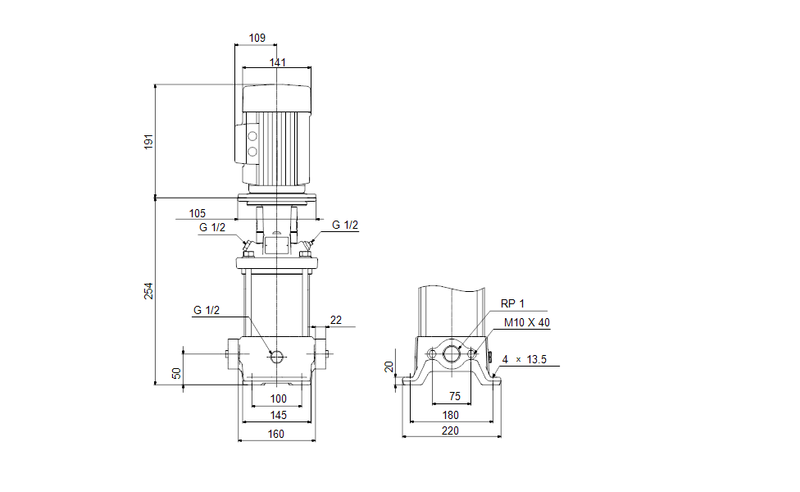

Dimensional Drawing

DWiring Diagram
