EAN
5700395182248
Applications
Industrial applications
Approvals
CURUS
Approvals for drinking water
NSF/ANSI 61
Bearing 1
SIC
Built-in motor protection
NONE
Code for rubber
E
Code for shaft seal
HQQE
Connect code
B
Connection
Oval / NPT(F)
Connection 2
PN 16
Cooling
TEFC
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
55 Dust/Jetting
Eta 1/1
78.8-79.3%
Flange size for motor
56C
Frequency
60 HZ
Frequency converter
NONE
Full load SF current
1,5-1,45/0,75 A
Gross weight
56.6 lb
IE Eff. Class
NEMA Premium / IE3 60Hz
IE efficiency
classNEMA Premium / IE3 60Hz
IE Efficiency class
NEMA Premium / IE3 60Hz
Impeller
Stainless steel
Impellers
2
Insulation
F
Insulation class (IEC 85)
F
Liquid max temp
120°C
Liquid temperature range
-4 .. 248 °F
Low NPSH
N
Material code
A
Material Pricing Group
30
Max pressure at stated temp
232 psi / 250 °F
Maximum ambient temperature
140 °F
Maximum head
63 ft
Maximum operating pressure
232.06 psi
Maximum permissible operating pressure
16bar
Model
A
Motor
56C
Motor efficiency at 1/2 load
73.1-71.5 %
Motor efficiency at 3/4 load
77.6-77 %
Motor efficiency at full load 1
78.8-79.3 %
Motor protec
NONE
Motor standard
NEMA
Motor type
71AA
n rpm
3450-3480rpm
Net weight
45.6 lb
Number of poles
2
Number of reduced-diameter impellers
0
P2 HP
0.33 HP
P2 kW
0.25kW
Phase
3
Power (P2) required by pump
0.33 HP
Power factor 1
0.81-0.75
Pressure rating
PN 16
Pressure rating for connection
PN 16

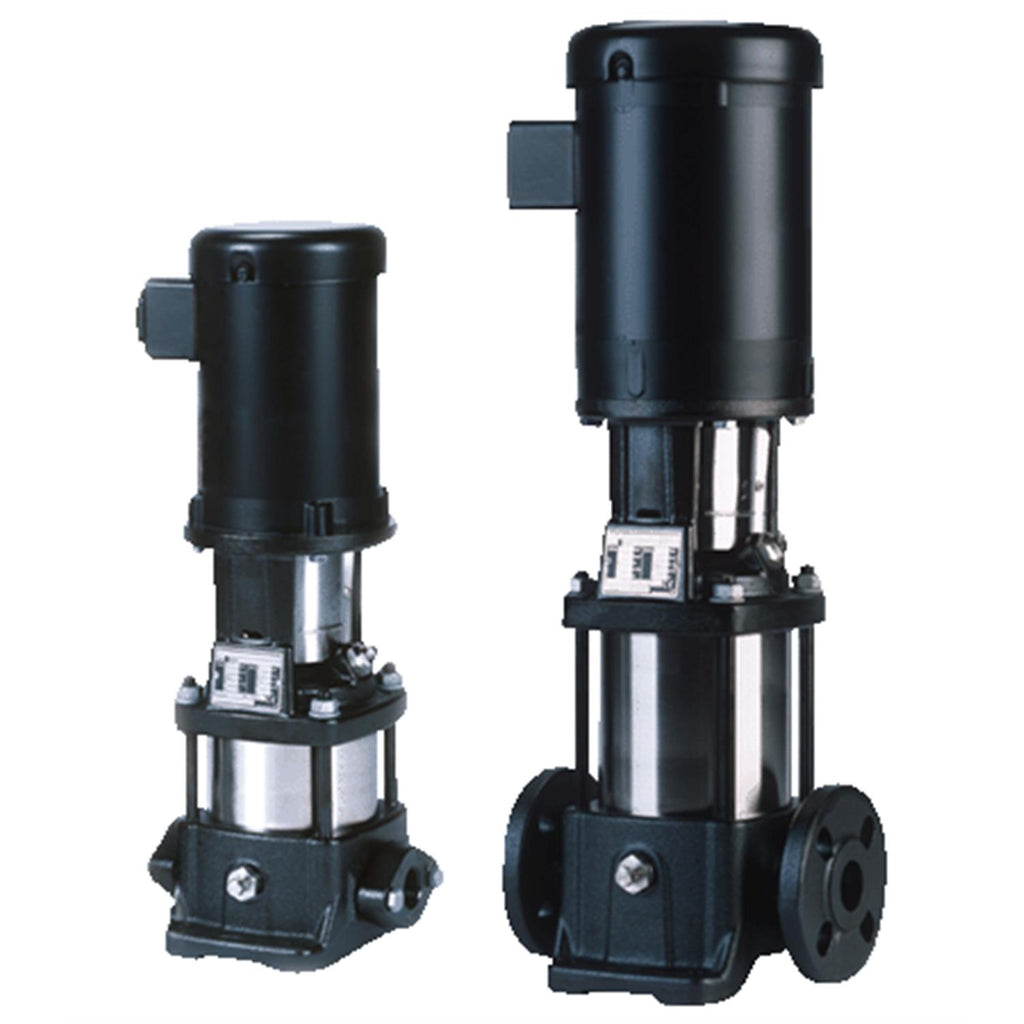

Product family
CR 3
Pump
0.33 HP
Pump housing
Cast iron
Pump inlet
1
Pump outlet
1
Pump version
A
Pumped liquid
Water
Rated current
1,12-1,10/0,55 A
Rated flow
15.4 US gpm
Rated flow 2
15.4 US gpm
Rated head
44.62 ft
Rated head 2
44.62 ft
Rated power - P2
0.33 HP
Rated speed
3450-3480 rpm
Rated voltage
3 x 208-230YY/460Y V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
E
Selected liquid temperature
68 °F
Service factor
1.35
Shaft seal
HQQE
Stages
3
Standard
NEMA
Starting current
630-700 %
Type
71AA
Type of connection
Oval / NPT(F)
Version
A
