Grundfos 96542476 - CR 3-19 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96542476

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96542476 - CR 3-19 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid transfer. This replacement unit suits maintenance technicians and plant engineers needing a compact, in-line high-pressure multistage pump.

Key features

  • Manufactured by Grundfos for industrial service applications
  • Vertical, in-line multistage centrifugal design for high-pressure operation
  • Provides reliable, efficient fluid transfer and pressure boosting in process systems

Applications

Typical uses include boiler feed, pressure boosting, industrial process circulation, cooling and water supply systems where compact high-pressure multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96542476

EAN 5700398008316
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 60.4 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 412.7 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor standard IEC
Net weight 54.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 2896 rpm
Pump version A
Pumped liquid Water
Rated flow 13.2 US gpm
Rated head 303.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 19
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

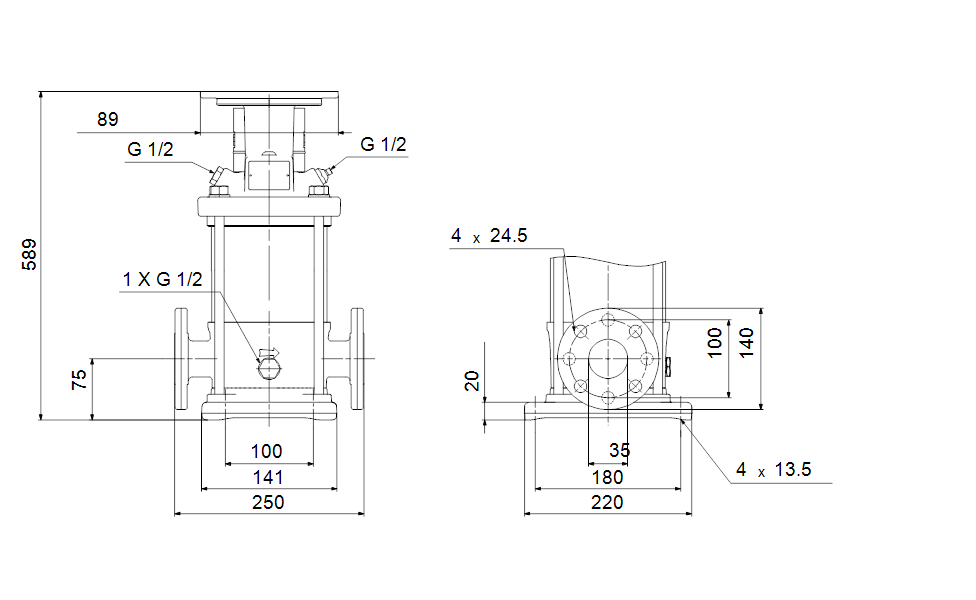

Dimensional Drawing
