Grundfos 96083148 - CR 3-13 A-B-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96083148

Price:
Sale price$6,554.16
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

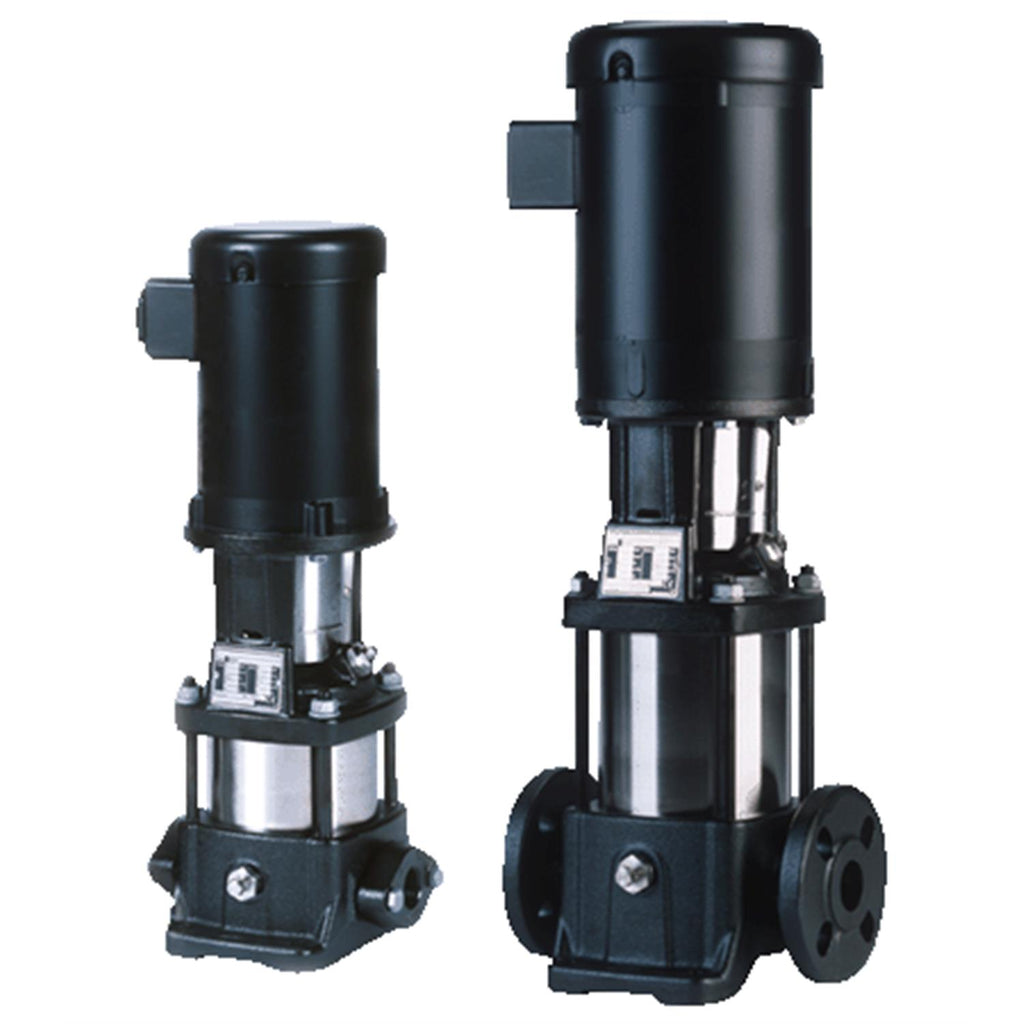

CR 3-13 A-B-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700395183160
Applications Industrial applications
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code B
Connection Oval / NPT(F)
Connection 2 PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 86.5-86.5%
Flange size for motor 182TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 9,60-9,20/4,60 A
Gross weight 106.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 13
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 410.1 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor protec NONE
Motor standard NEMA
Motor type 90HA
n rpm 3500-3520rpm
Net weight 91.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 3 HP
P2 kW 2.2kW
Phase 3
Power (P2) required by pump 3 HP
Power factor 1 0.85-0.82
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CR 3
Pump 3 HP
Pump housing Cast iron
Pump inlet 1
Pump outlet 1
Pump version A
Pumped liquid Water
Rated current 8,50-8,20/4,10 A
Rated flow 15.4 US gpm
Rated flow 2 15.4 US gpm
Rated head 308.4 ft
Rated head 2 308.4 ft
Rated power - P2 3 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Stages 13
Standard NEMA
Starting current 850-970 %
Type 90HA
Type of connection Oval / NPT(F)
Version A

Motor Curves

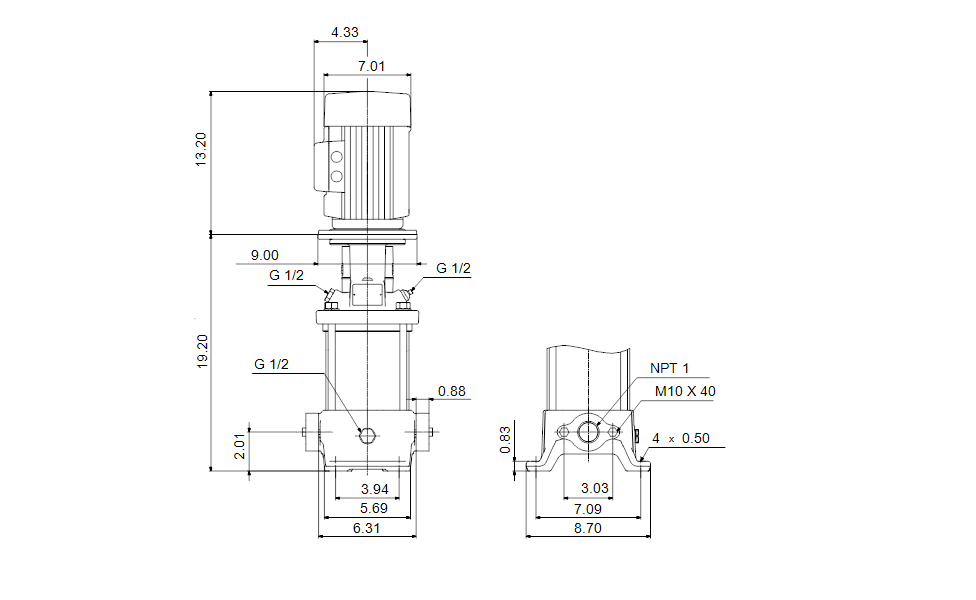

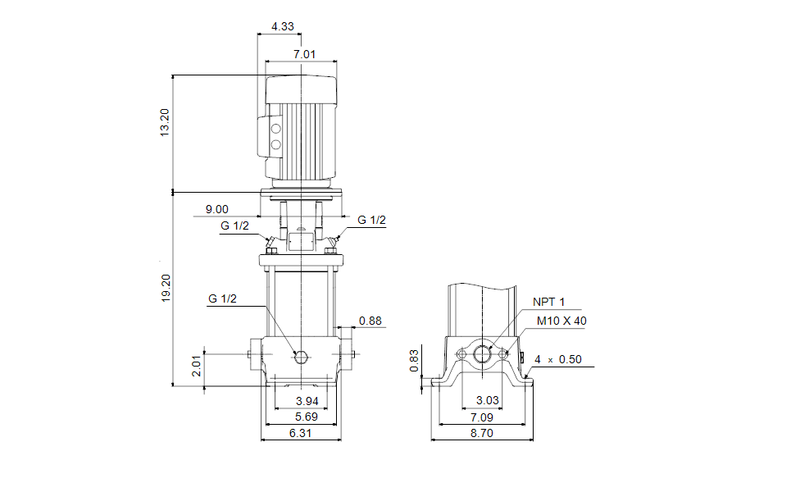

Dimensional Drawing

DWiring Diagram
