Description

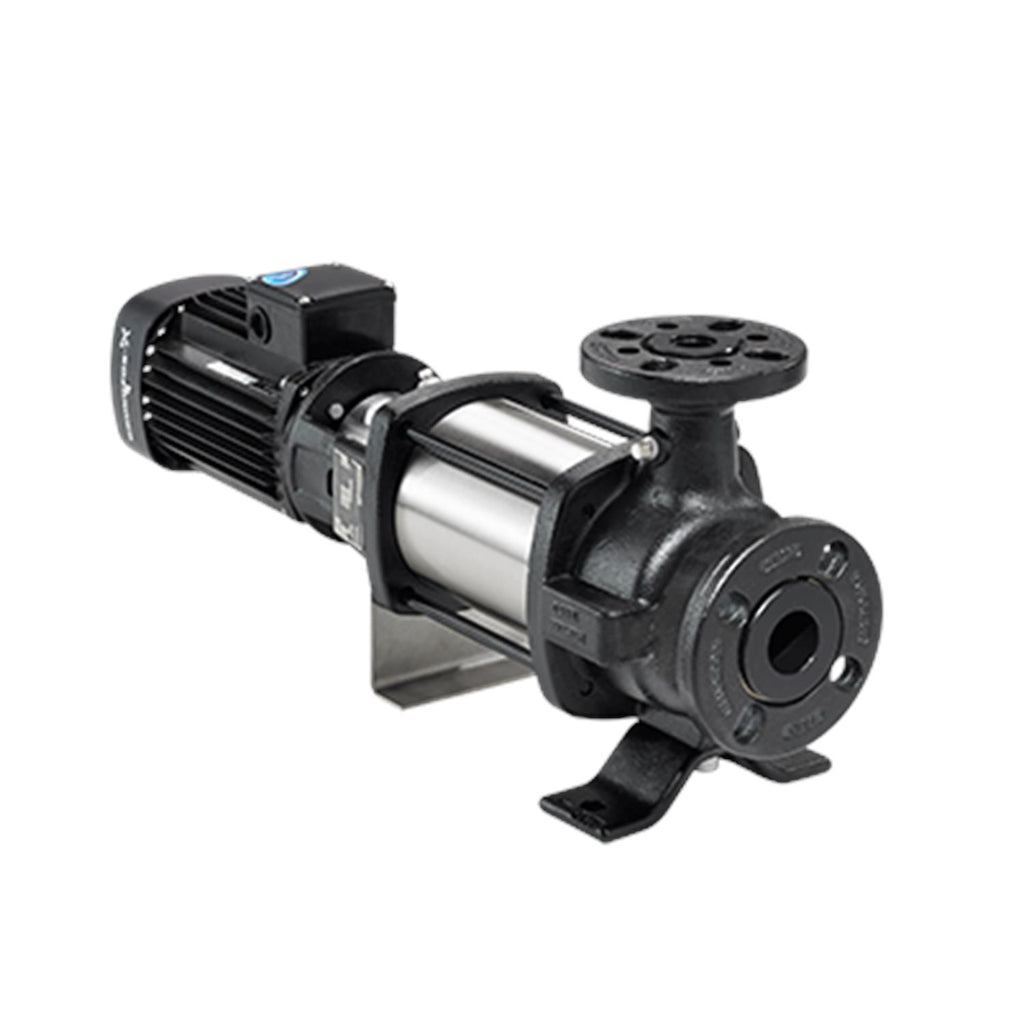

The Grundfos 97657386 (CR 3-11 H-GA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 15.4US gpm at 252.3ft. Rated 208-230YY/460YV, 3-Phase, 60 Hz.
Vertical Multistage Design
Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.
Stainless Steel Wetted Parts
All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.
QuickTight Connection System
No special tools needed for coupling. Integrated coupling design reduces installation and service time.
Wide Configuration Range
Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.
Authorized Grundfos Distributor
PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.
Contact PumpStop for Sizing
The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.
| Model Number | 97657386 |
| Product Series | CR |
| Series Description | Vertical Multistage Centrifugal Pump |
| Power | 2HP |
| Voltage | 208-230YY/460YV |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3500-3520rpm |
| Pump Speed | 3452rpm |
| Full Load Current | 6,00-5,80/2,90A |
| Motor Type | 90GB |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 85.5-85.5% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 15.4US gpm |
| Nominal Head | 252.3ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 1 1/2inch |
| Outlet Connection | 1inch |
| Pipe Pressure Rating | PN 16 |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | HQQE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals on nameplate
- CURUS,NSF/ANSI 61
- Bearing 1
- SIC
- Built-in motor protection
- NONE
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- GA
- Connection
- PN 16
- Cooling
- TEFC
- Curve tolerance
- ISO9906:2012 3B
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Flange rating inlet
- 150 lb
- Flange size for motor
- 56C
- Frequency
- 60 Hz
- Frequency converter
- NONE
- Gross weight
- 96.0 lb
- IE Eff. Class
- NEMA Premium / IE3 60Hz
- IE efficiency
- Product name:CR 3-11 H-GA-A-E-HQQE
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- 55 Dust/Jetting
- Liquid max temp
- 248°F
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Material code
- A
- Maximum ambient temperature
- 104 °F
- Maximum head
- 342.9 ft
- Maximum operating pressure
- 232.06 psi
- Model
- A
- Motor
- 56C
- Motor efficiency at 1/2 load
- 86.3-85.0 %
- Motor efficiency at 3/4 load
- 87.4-86.8 %
- Motor efficiency at full load 1
- 85.5-85.5 %
- Motor standard
- NEMA
- Motor type
- 90GB
- n rpm
- F
- Net weight
- 83.7 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- P2 kW
- 2 HP
- Phase
- 3
- Power (P2) required by pump
- 2 HP
- Power factor 1
- 0.81-0.78
- Pressure rating for connection
- PN 16
- Pressure sensor
- N
- Pump
- 2 HP
- Pump version
- H
- Rated current
- 6,00-5,80/2,90 A
- Rated flow
- 15.4 US gpm
- Rated head
- 252.3 ft
- Rated power - P2
- 2 HP
- Rated speed
- 3500-3520 rpm
- Rated voltage
- 3 x 208-230YY/460Y V
- Rubber
- E
- Sales region
- USA
- Service factor
- 1.15
- Shaft
- Product name:CR 3-11 H-GA-A-E-HQQE
- Shaft seal
- HQQE
- Stages
- 11
- Standard
- NEMA
- Starting current
- 800-910 %
- Type
- 90GB
- Version
- H

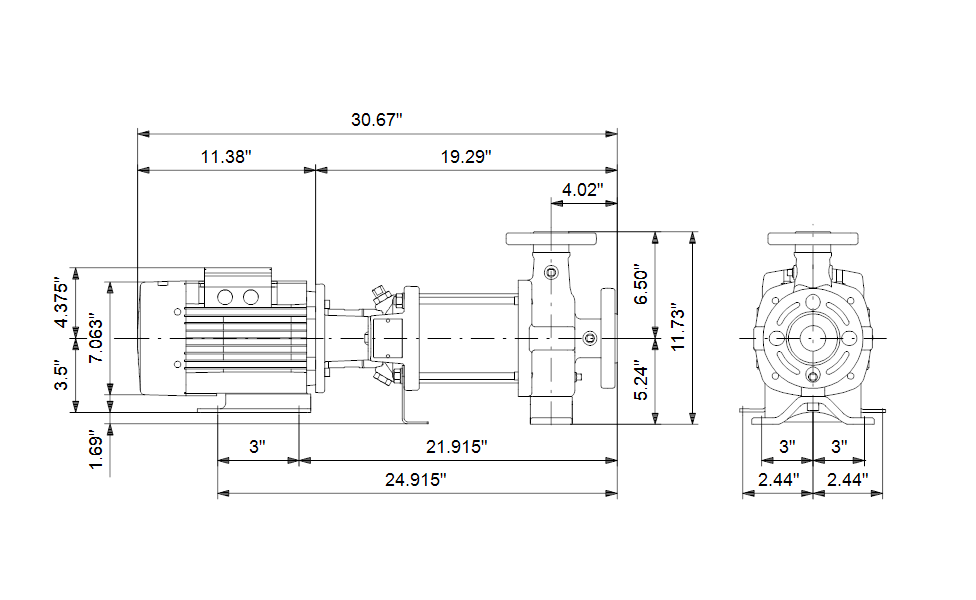

Dimensional Drawing
