Grundfos 92585777 - CR 3-11 A-BN-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92585777

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92585777 - CR 3-11 A-BN-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid handling and high-pressure in-line systems. It suits technicians and service professionals replacing or maintaining centrifugal pump assemblies.

Key features

  • Manufactured by Grundfos for various industrial applications and service replacements
  • Designed for vertical multistage, in-line and high-pressure centrifugal pump installations
  • Delivers reliable pressure staging for efficient system performance and reduced maintenance downtime

Applications

Typical uses include industrial process boosting, high-pressure water transfer, boiler feed, and in-line circulation systems where space-saving vertical orientation is required.

Compatibility note: Match the exact model or SKU before ordering; if unsure, call (781) 281-8905 for assistance. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92585777

EAN 5715116664255
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code BN
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Frequency converter NONE
Gross weight 101.0 lb
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 342.9 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.74
Motor standard NEMA
Motor type BALDOR
Net weight 86.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3499 rpm
Pump version A
Pumped liquid Water
Rated current 23
Rated flow 15.4 US gpm
Rated head 251.7 ft
Rated power - P2 1.5 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 11
Standard NEMA
Type BALDOR
Type of connection Oval / NPT(F)
Version A

Motor Curves

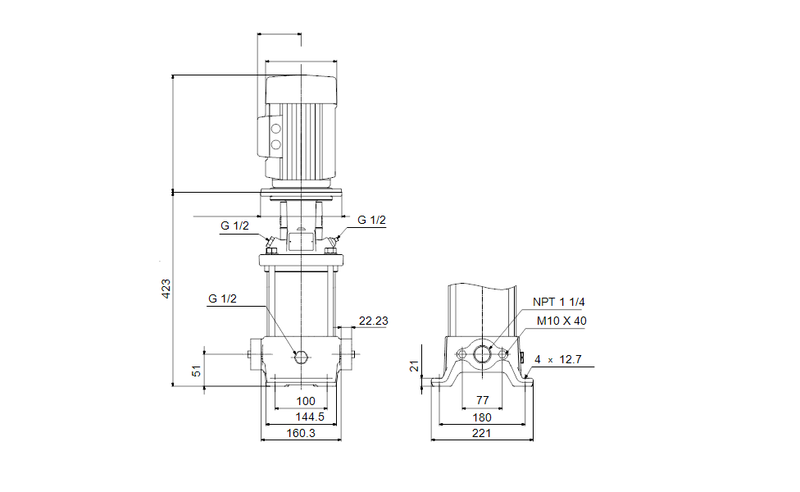

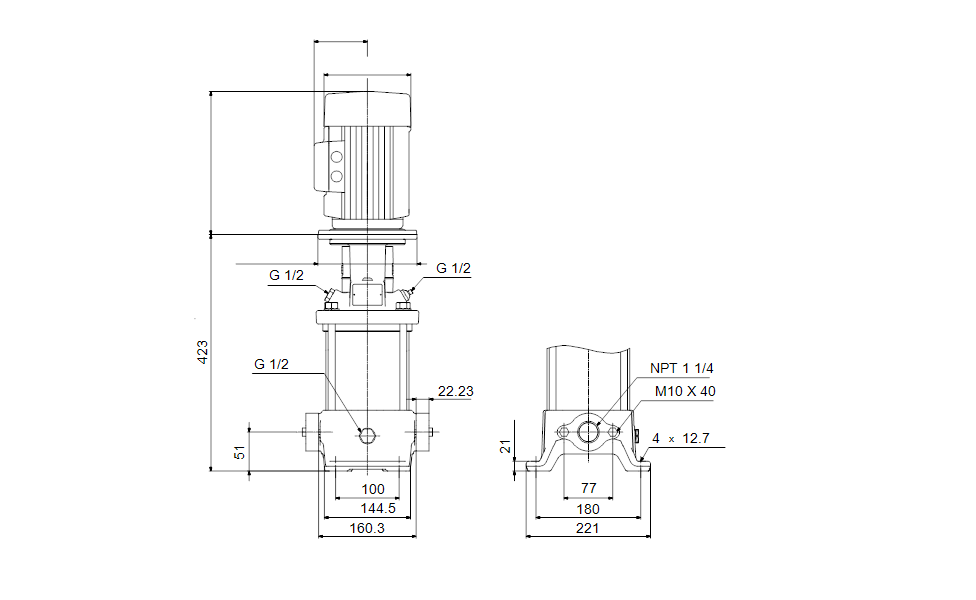

Dimensional Drawing

DWiring Diagram
