Grundfos 96127050 - CR 20-5 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $2,668.15
GRUNDFOSSKU: 96127050

Price:
Sale price$3,565.85 Regular price$6,234.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

CR 20-5 A-B-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.

EAN 5700397002674
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection Oval / NPT(F)
Connection 2 PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 190.0 lb
Impeller Stainless steel
Impellers 5
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 145 psi / 250 °F
Maximum head 344.5 ft
Maximum operating pressure 145.04 psi
Maximum permissible operating pressure 10bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 104.0 lb
Number of reduced-diameter impellers 0
Pressure rating PN 10
Pressure rating for connection PN 10
Product family CR 20
Pump housing Cast iron
Pump inlet 2
Pump outlet 2
Pump version A
Pumped liquid Water
Rated flow 111 US gpm
Rated flow 2 111 US gpm
Rated head 268.7 ft
Rated head 2 268.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 5
Standard NEMA
Type of connection Oval / NPT(F)
Version A

Motor Curves

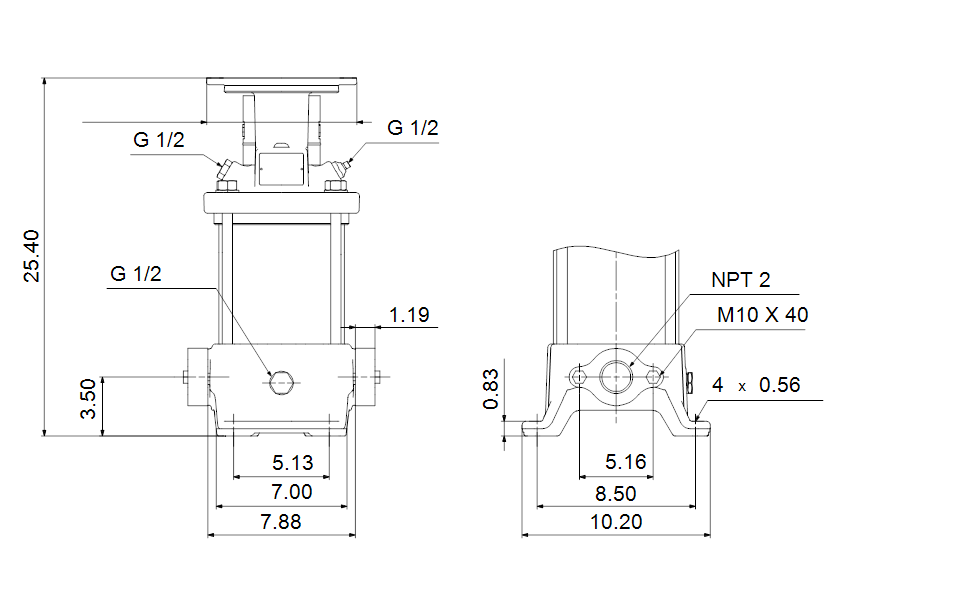

Dimensional Drawing
