Description
CR 20-4 A-B-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
EAN
5715114125437
Applications
Industrial applications
Material Pricing Group
30
Motor efficiency at full load 1
0.865
Code for rubber
E
Maximum ambient temperature
104 °F
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
145 psi / 250 °F
Maximum operating pressure
145.04 psi
Power factor 1
0.99
Selected liquid temperature
68 °F
Type of connection
Oval / NPT(F)
Bearing 1
SIC
Pressure rating
PN 10

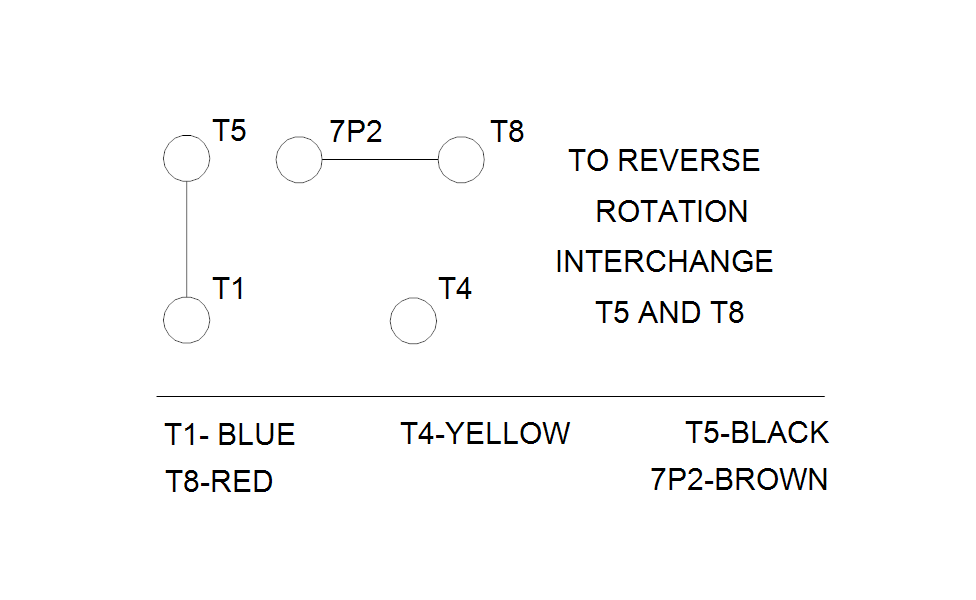

Rated voltage
1 x 208-230 V
Flange size for motor
213TC
Pumped liquid
Water
Starting current
720-720 %
Pump outlet
2
Pump inlet
2
Connect code
B
Liquid temperature range
-4 .. 248 °F
Insulation class (IEC 85)
F
IE efficiency
0.865
Motor efficiency at 1/2 load
0.815
Built-in motor protection
NONE
Net weight
256.0 lb
Number of poles
2
Rated speed
3510 rpm
Gross weight
276.0 lb
Rated power - P2
10 HP
Enclosure class (IEC 34-5)
IP55
Power (P2) required by pump
10 HP
Pressure rating for connection
PN 10
Motor efficiency at 3/4 load
0.855
Rated current
42.5-38.1 A
Service factor
1.15
Full load SF current
42.5/43.8 A
Frequency converter
NONE
Motor type
WEG
DOE Pump Energy Index CL
0.91
Stages
4
Approvals
CURUS
Rated flow
111 US gpm
Model
A
Version
A
Diameter
4.13 in
Cooling
IC 411
Motor
213TC
Rubber
E
Maximum head
274.3 ft
Approvals for drinking water
NSF/ANSI 61
Motor standard
NEMA
Rated head
210.3 ft
Actual impeller diameter
4.13 in
Type
WEG
Curve tolerance
ISO9906:2012 3B
Impellers
4
Connection
Oval / NPT(F)
Impeller
Stainless steel
Code for shaft seal
HQQE
Pump housing
Cast iron
Number of reduced-diameter impellers
0
Pump
10 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves
