Grundfos 96625109 - CR 20-10 K-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96625109

Price:
Sale price$23,770.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

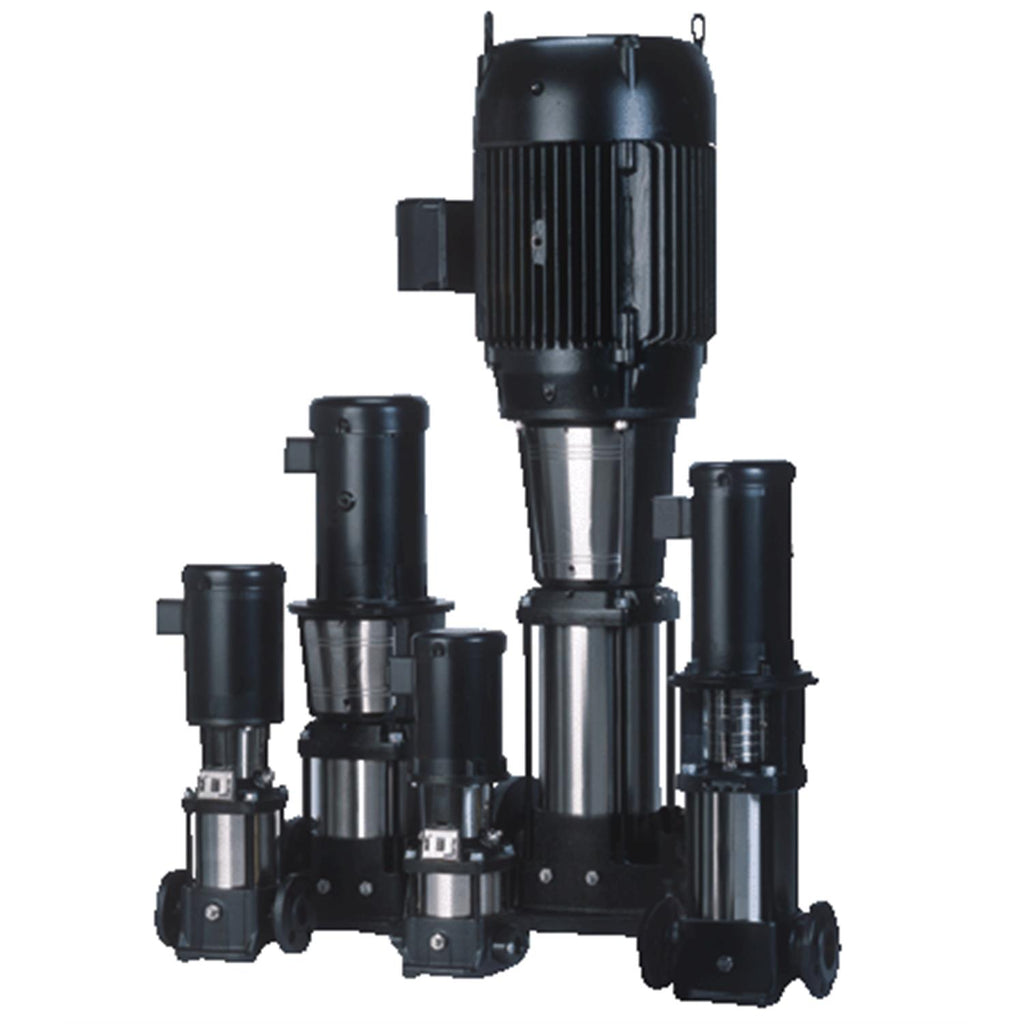

CR 20-10 K-GJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700835128829
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.96
Enclosure class (IEC 34-5) IP54
Flange rating inlet 250 lb
Flange size for motor 284TC
Frequency converter NONE
Full load SF current 64.4/32.2 A
Gross weight 598.0 lb
IE efficiency IE3 93%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 698.9 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor efficiency at full load 1 0.93
Motor standard NEMA
Motor type BALDOR
Net weight 483.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Pressure rating for connection PN 25
Product family CR 20
Pump 18.5 kW
Pump speed on which pump data are based 3521 rpm
Pump version K
Pumped liquid Water
Rated current 56/28 A
Rated flow 111 US gpm
Rated head 561.4 ft
Rated power - P2 18.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type BALDOR
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
