Grundfos 96545562 - CR 20-1 A-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96545562

Price:
Sale price$5,848.61
or Call for most up to date lead times. (781) 281-8905

Description

CR 20-1 A-GJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.

EAN 5700398396604
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 99.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 66.93 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor standard IEC
Net weight 72.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 111 US gpm
Rated head 46.92 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard IEC
Type of connection ANSI / JIS
Version A

Motor Curves

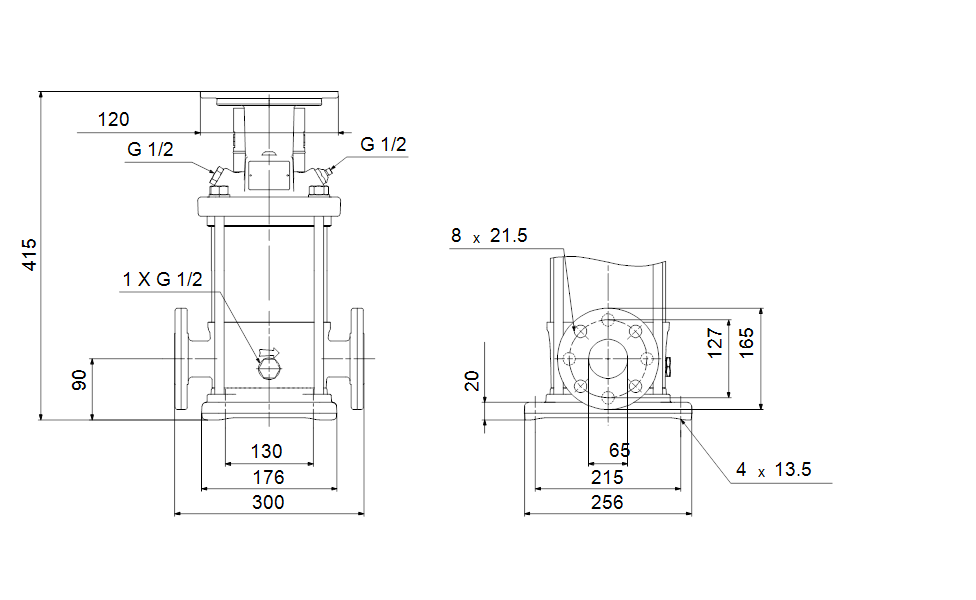

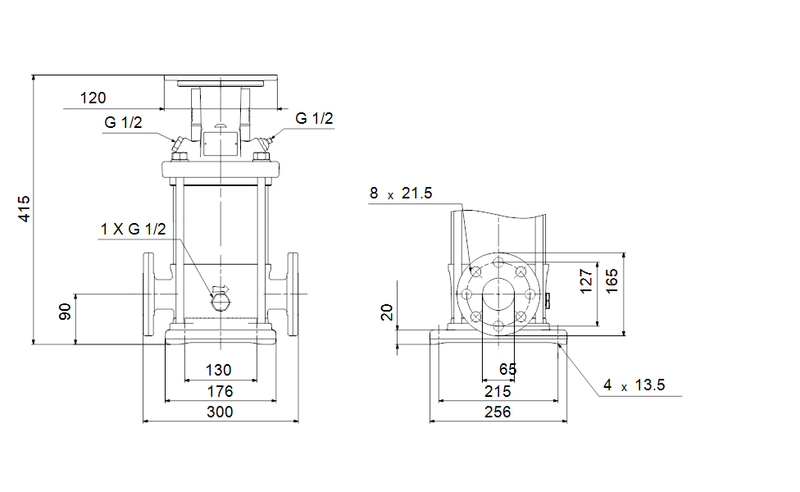

Dimensional Drawing
