Grundfos 97776072 - CR 1S-2 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97776072

Price:
Sale price$2,729.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97776072 - CR 1S-2 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97776072 - CR 1S-2 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model offers exceptional efficiency and reliability, making it an ideal choice for demanding environments.

This centrifugal pump is part of the CR series, known for its robust construction and versatility. It is suitable for high-pressure applications and can be used in various settings, including water supply, heating, and cooling systems. The CR 1S-2 model features a compact design, making it easy to install in tight spaces while delivering optimal performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5710624225394
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 55.7 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 57.09 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 49.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 39.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

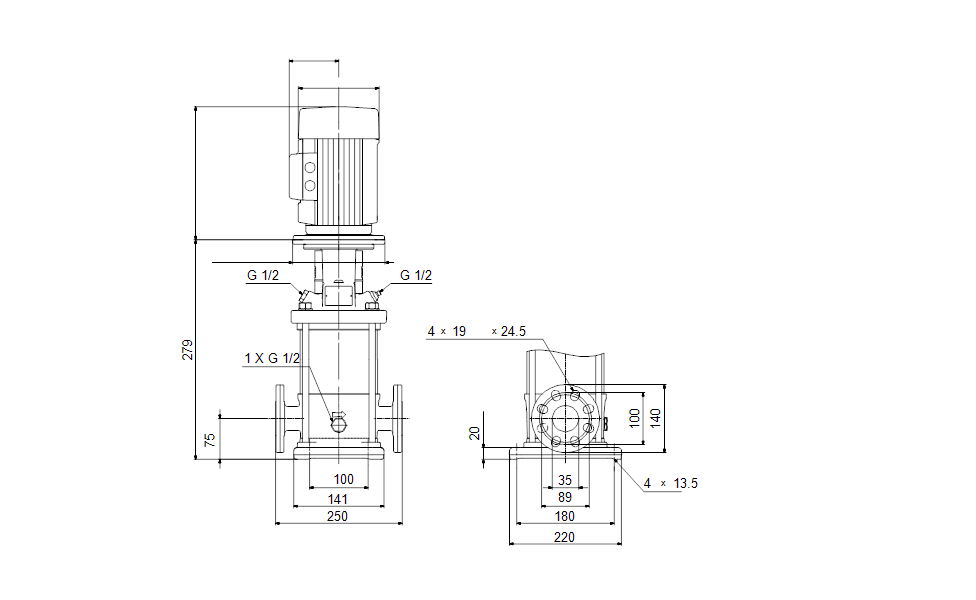

Dimensional Drawing
