Grundfos 97533318 - CR 1S-19 H-GA-A-V-HQQV | Horizontal | End Suction

GrundfosSKU: 97533318

Price:
Sale price$4,687.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 1S-19 H-GA-A-V-HQQV · Vertical Multistage Centrifugal Pump
CR60 HzStainless steel

The Grundfos 97533318 (CR 1S-19 H-GA-A-V-HQQV) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 4.84US gpm at 351.7ft.

Max Flow
4.84US gpm
Max Head
351.7ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 1S-19 H-GA-A-V-HQQV
Series: CR
Model Code: CR 1S-19 H-GA-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQV
Flange Rating: PN 25
Technical Specifications
Model Number 97533318
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Frequency 60 Hz
Pump Speed 3466rpm
Nominal Flow 4.84US gpm
Nominal Head 351.7ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 25
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQV
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 1S-19 H-GA-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 70.4 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 531.9 ft
Maximum operating pressure 362.59 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 58.1 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 4.84 US gpm
Rated head 351.7 ft
Rubber V
Sales region USA
Shaft Product name:CR 1S-19 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 19
Standard NEMA
Version H

Motor Curves

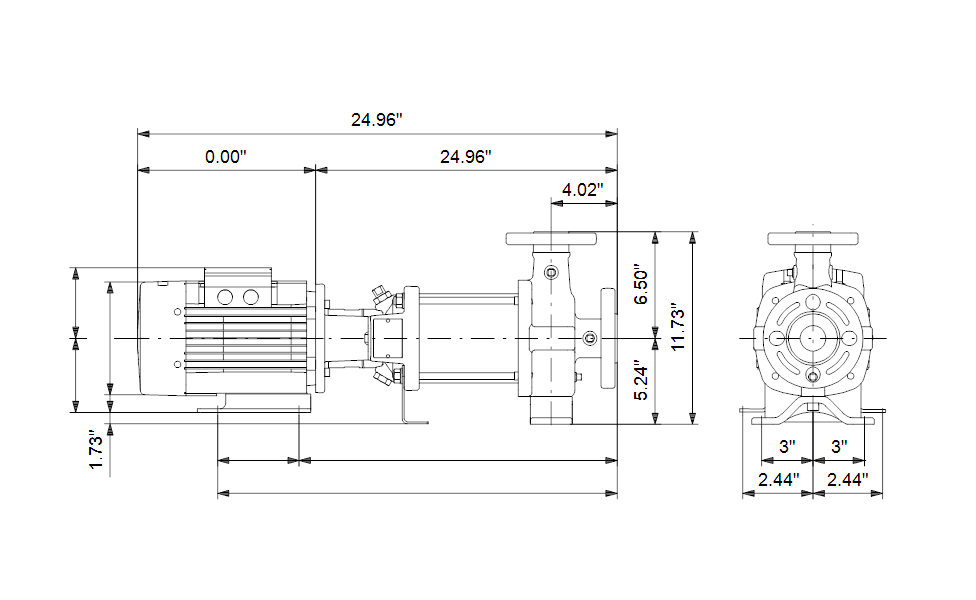

Dimensional Drawing
