Grundfos 97533296 - CR 1S-15 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,423.10
GRUNDFOSSKU: 97533296

Price:
Sale price$1,901.90 Regular price$3,325.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97533296 - CR 1S-15 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97533296 - CR 1S-15 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure and transferring fluids in various systems.

This model is part of the CR series, known for its robust construction and versatility. It is suitable for both single and multi-stage applications, ensuring optimal performance in demanding environments. The CR 1S-15 H-GA-A-E-HQQE is tagged under various categories including Cr H, Cr H Crn H Cre H Crne H, and CRN-CRT- CR FPV, making it a versatile option for your pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including booster, end suction, and horizontal multistage options, to find the perfect solution for your needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 63.1 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 419.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3484rpm
Net weight 50.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 4.84 US gpm
Rated head 280.2 ft
Rubber E
Sales region USA
Shaft Product name:CR 1S-15 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 15
Standard NEMA
Version H

Motor Curves

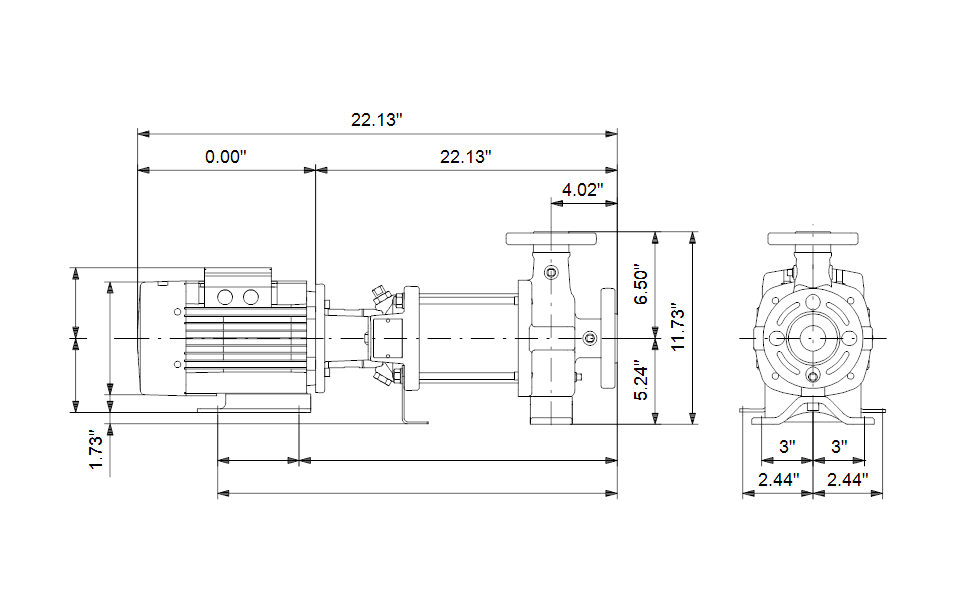

Dimensional Drawing
