Grundfos 99971167 - CR 185-3-3 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $18,445.09
GRUNDFOSSKU: 99971167

Price:
Sale price$24,650.91 Regular price$43,096.00
Build to order – stocked components, typically available in 70 business days
or Call for most up to date lead times. (781) 281-8905

Description

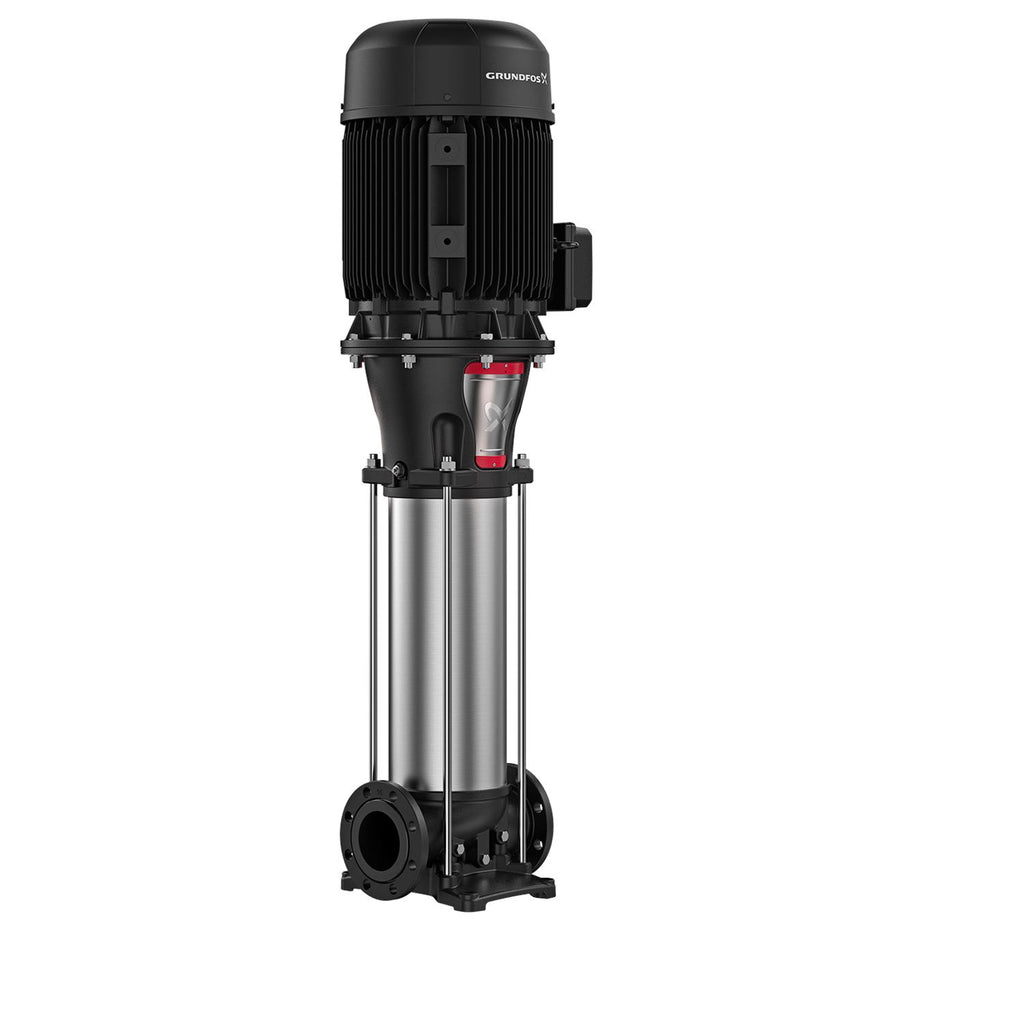

Grundfos 99971167 - CR 185-3-3 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99971167 - CR 185-3-3 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

With its robust construction and advanced design, the CR 185-3-3 A-G-A-V-HQQV model is suitable for various fluid transfer tasks, ensuring optimal flow rates and pressure levels. This pump is part of the renowned CR series, known for its versatility and durability in demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Flange size for motor 444TSD
Frequency converter NONE
Gross weight 992.0 lb
Impeller Stainless steel
Impellers 3
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 557.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 444TSD
Motor standard NEMA
n rpm 3566rpm
Net weight 736.0 lb
Number of reduced-diameter impellers 3
Power (P2) required by pump 125 HP
Pressure rating for connection 300 lb
Pump 125 HP
Pump version A
Rated flow 980 US gpm
Rated head 405.9 ft
Rubber V
Shaft Product name:CR 185-3-3 A-G-A-V-HQQV
Shaft seal HQQV
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection ANSI
Version A

Motor Curves

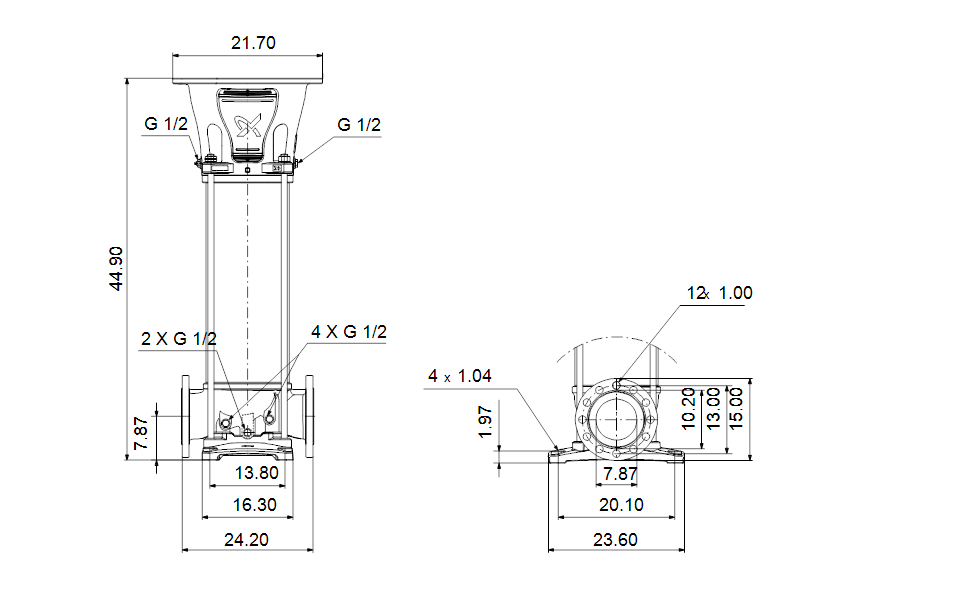

Dimensional Drawing
