Grundfos 97760166 - CR 15-9 A-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 97760166

Price:
Sale price$16,183.33
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

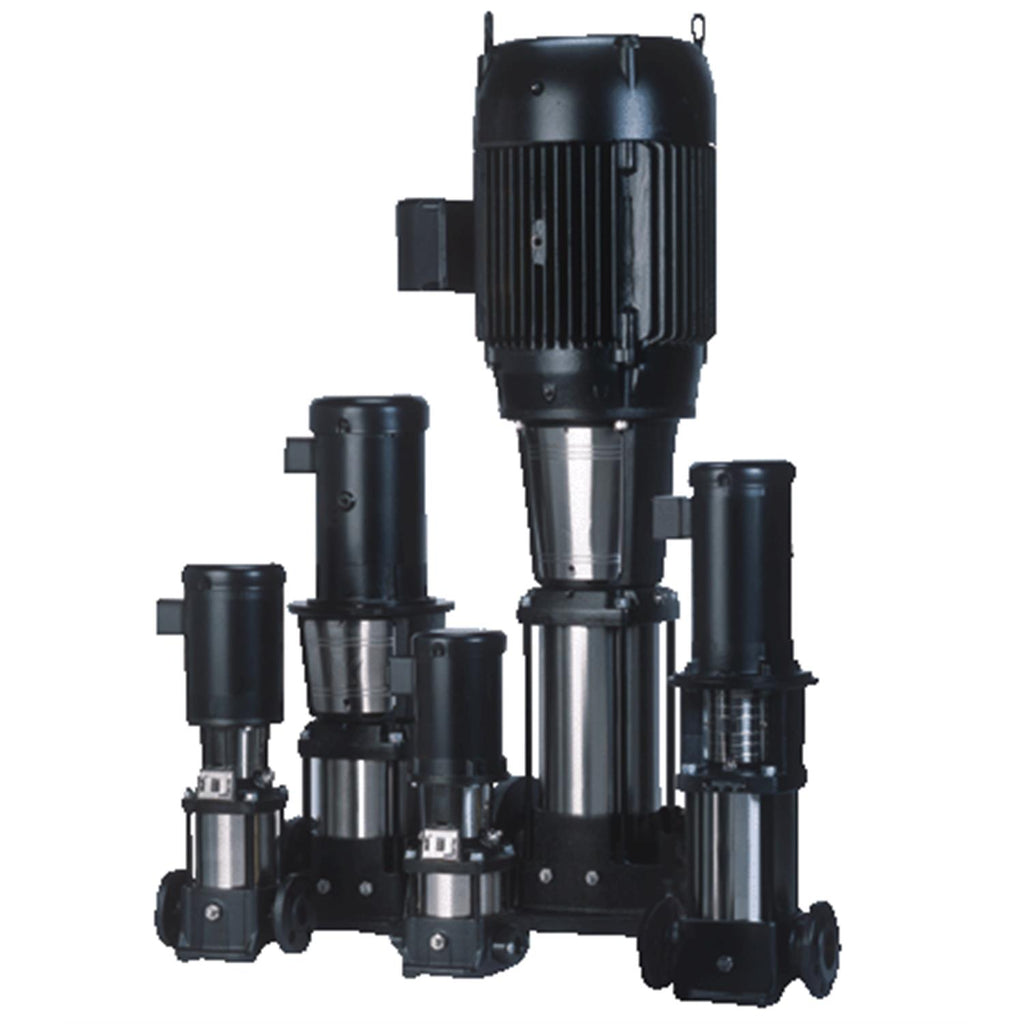

CR 15-9 A-GJ-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR20HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumODPStainless steel

The Grundfos 97760166 (CR 15-9 A-GJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 90.3US gpm at 453.1ft. Rated 230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
20HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
453.1ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 15-9 A-GJ-A-E-HQQE
Series: CR
Model Code: CR 15-9 A-GJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 97760166
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 20HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3525rpm
Pump Speed 3444rpm
Full Load Current 47/23.5A
Motor Type BALDOR
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 91,7%
Insulation Class F
Protection Class (IP) ODP
Nominal Flow 90.3US gpm
Nominal Head 453.1ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard ANSI / JIS
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 15-9 A-GJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710623891972
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Cooling ODP
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Full load SF current 54/27 A
Gross weight 456.0 lb
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 590.6 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type BALDOR
Net weight 344.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Pressure rating for connection PN 25
Product family CR 15
Pump 15 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 47/23.5 A
Rated flow 90.3 US gpm
Rated head 453.1 ft
Rated power - P2 15 kW
Rated speed 3525 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard NEMA
Type BALDOR
Type of connection ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

DWiring Diagram
