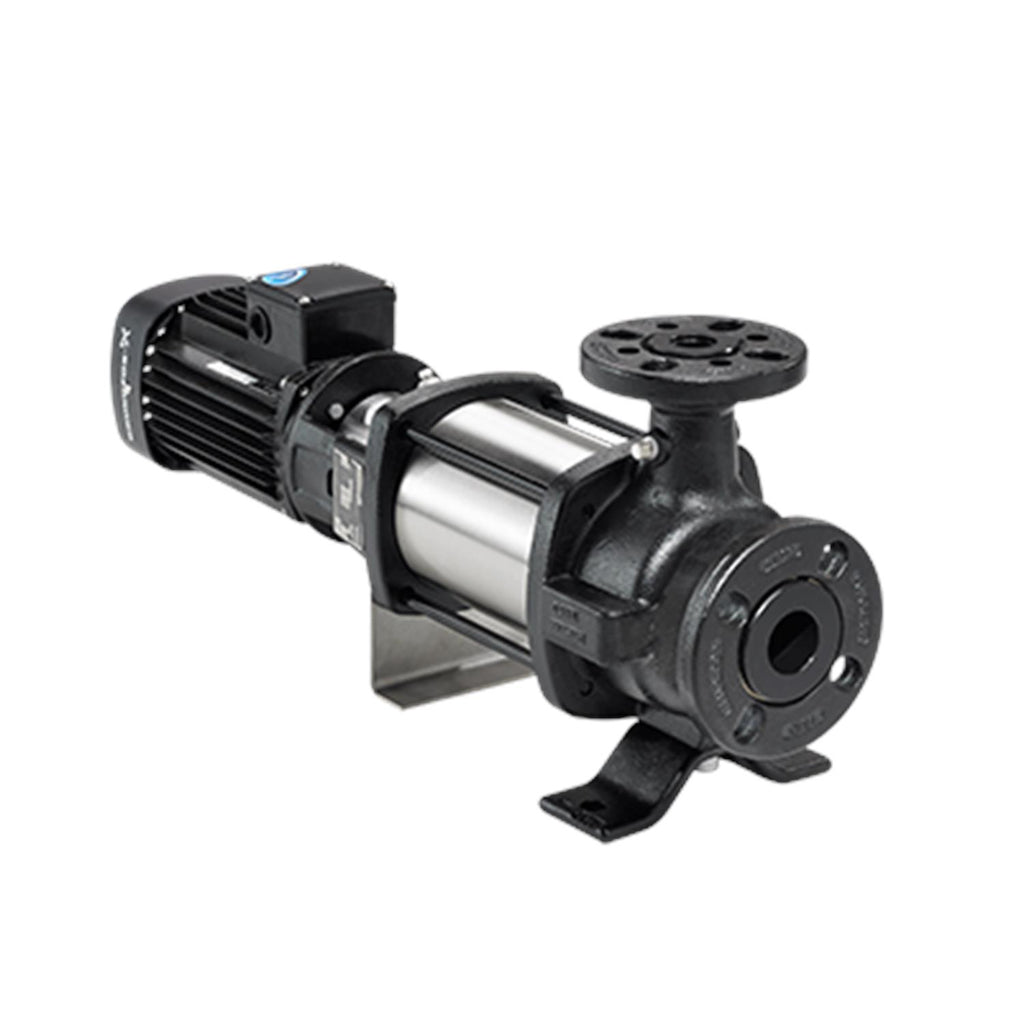

Grundfos 96978389 - CR 15-9 H-GA-A-E-HQQE | Horizontal | End Suction

Save $5,599.52
GrundfosSKU: 96978389

Price:
Sale price$7,483.48 Regular price$13,083.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 15-9 H-GA-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR20HP230/460V3-Phase60 HzNEMA Premium / IE3 60HzTEFCStainless steel

The Grundfos 96978389 (CR 15-9 H-GA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 79.3US gpm at 485.3ft. Rated 230/460V, 3-Phase, 60 Hz.

Power
20HP
Voltage
230/460V
Phase
3-Phase
Max Flow
79.3US gpm
Max Head
485.3ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 15-9 H-GA-A-E-HQQE
Series: CR
Model Code: CR 15-9 H-GA-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 96978389
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 20HP
Voltage 230/460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3520rpm
Pump Speed 3444rpm
Full Load Current 46/23A
Motor Type BALDOR
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 79.3US gpm
Nominal Head 485.3ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 25
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 15-9 H-GA-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 505.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 15-9 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 573.5 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
n rpm F
Net weight 384.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 20 HP
Phase 3
Power (P2) required by pump 20 HP
Pressure rating for connection PN 25
Pressure sensor N
Pump 20 HP
Pump version H
Rated current 46/23 A
Rated flow 79.3 US gpm
Rated head 485.3 ft
Rated power - P2 20 HP
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 15-9 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 9
Standard NEMA
Type BALDOR
Version H

Motor Curves

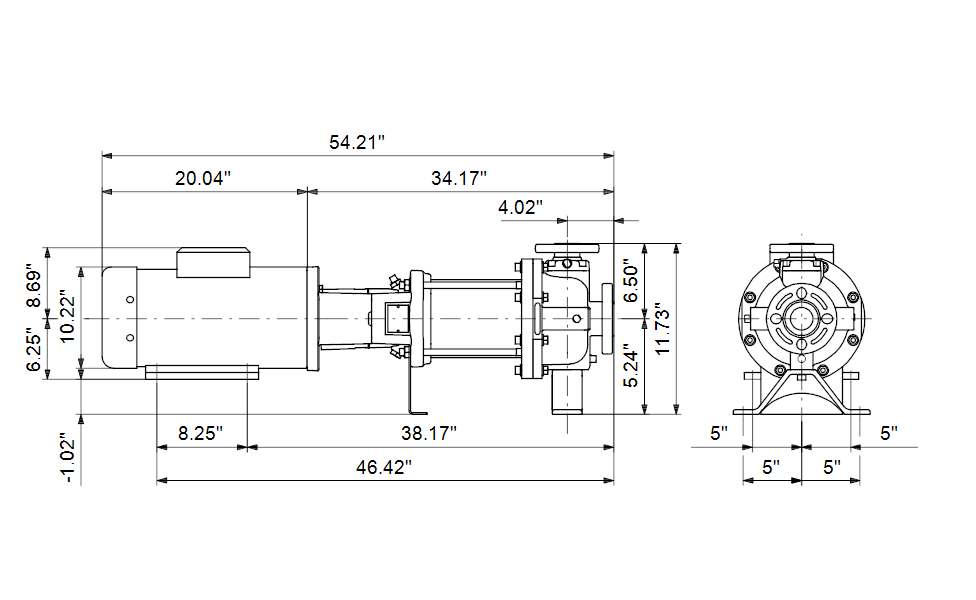

Dimensional Drawing

DWiring Diagram
