Grundfos 96531297 - CR 15-8 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96531297

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CR 15-8 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5700397255063
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF300
Frequency converter NONE
Gross weight 190.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 534.8 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor standard IEC
Net weight 128.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3529 rpm
Pump version A
Pumped liquid Water
Rated flow 90.3 US gpm
Rated head 426.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard IEC
Type of connection DIN
Version A

Motor Curves

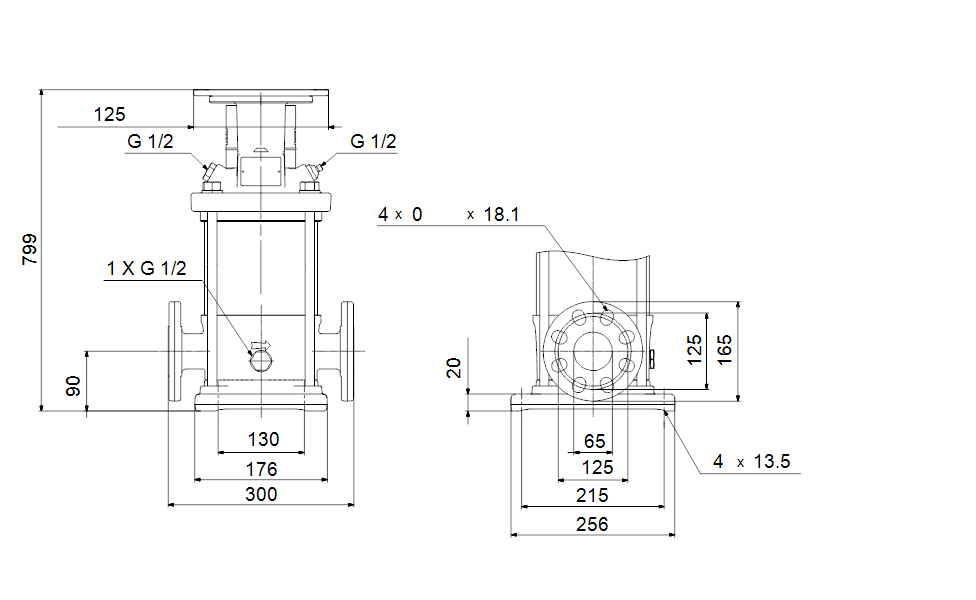

Dimensional Drawing
