Grundfos 98062877 - CR 15-3 P-GJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98062877

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98062877 - CR 15-3 P-GJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98062877 - CR 15-3 P-GJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model offers exceptional efficiency and reliability, making it ideal for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 15-3 P-GJ-A-V-HQQV ensures optimal performance in demanding environments. This pump is perfect for applications requiring consistent flow rates and pressure, making it a versatile choice for both commercial and industrial settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628341335
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber V
Code for shaft seal HQQV
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 106.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 200.5 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 90.4 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Rated flow 90.3 US gpm
Rated head 152.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection ANSI / JIS
Version P

Motor Curves

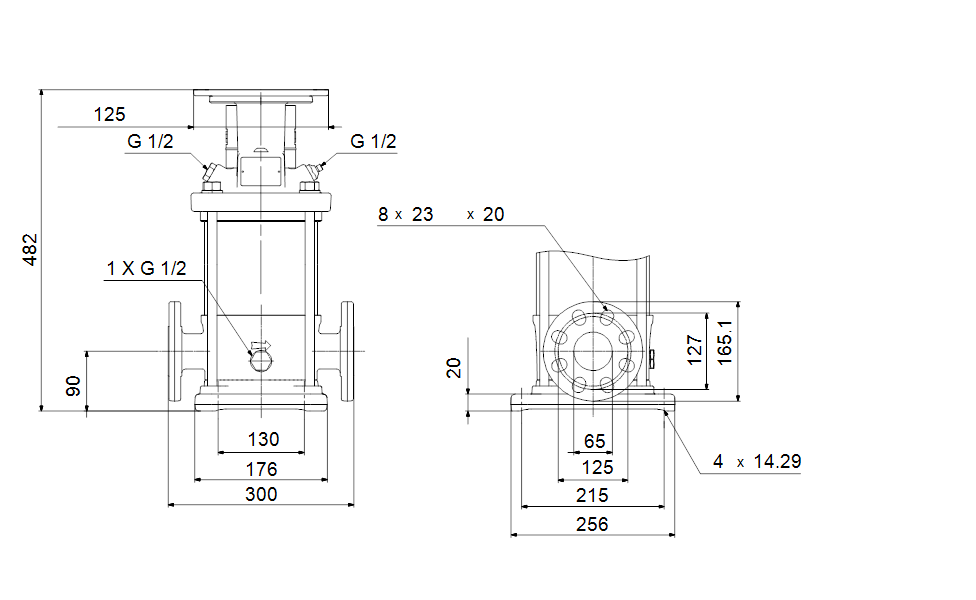

Dimensional Drawing
