Grundfos 91134025 - CR 15-17 A-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 91134025

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 15-17 A-GJ-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR20HP380-415D/660-690YV3.0-Phase50 HzIE3IP55 Dust/JettingStainless steel

The Grundfos 91134025 (CR 15-17 A-GJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 74.8US gpm at 629.6ft. Rated 380-415D/660-690YV, 3.0-Phase, 50 Hz.

Power
20HP
Voltage
380-415D/660-690YV
Phase
3.0-Phase
Max Flow
74.8US gpm
Max Head
629.6ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 15-17 A-GJ-A-E-HQQE
Series: CR
Model Code: CR 15-17 A-GJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 91134025
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 20HP
Voltage 380-415D/660-690YV
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2930-2950rpm
Pump Speed 2923rpm
Full Load Current 28,0-26,0/16,2-15,6A
Motor Type 160MD
Motor Protection PTC
Motor Efficiency Class IE3
Motor Efficiency 91.9-91.9%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 74.8US gpm
Nominal Head 629.6ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard ANSI / JIS
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-415D/660-690YV, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 15-17 A-GJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700398969693
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 452.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 784.2 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.4-92.3 %
Motor efficiency at 3/4 load 92.4-92.7 %
Motor efficiency at full load 1 91.9-91.9 %
Motor standard IEC
Motor type 160MD
Net weight 384.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 2923 rpm
Pump version A
Pumped liquid Water
Rated current 28
Rated flow 74.8 US gpm
Rated head 629.6 ft
Rated power - P2 15 kW
Rated speed 2930-2950 rpm
Rated voltage 3 x 380-415D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 17
Standard IEC
Starting current 660-780 %
Type 160MD
Type of connection ANSI / JIS
Version A

Motor Curves

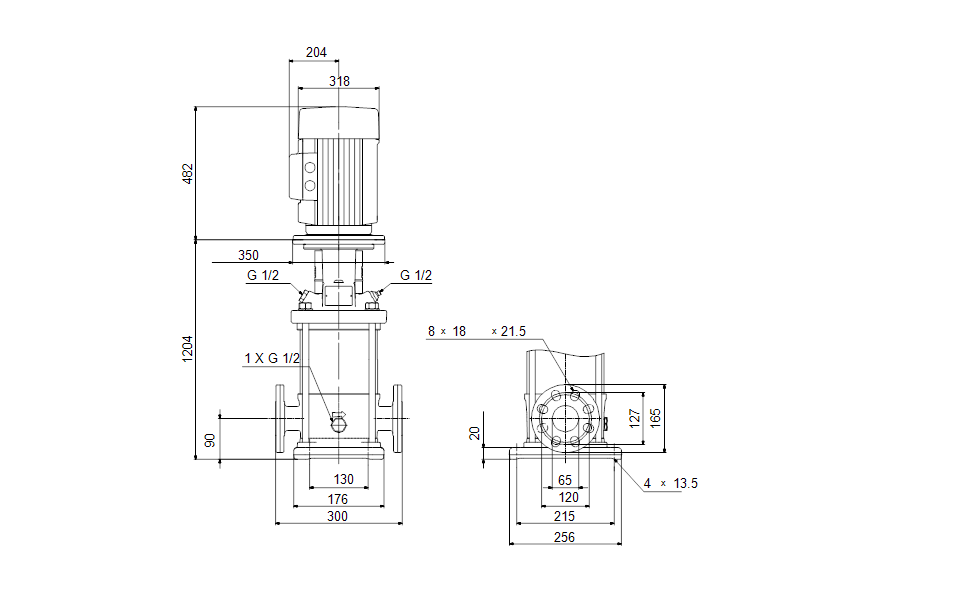

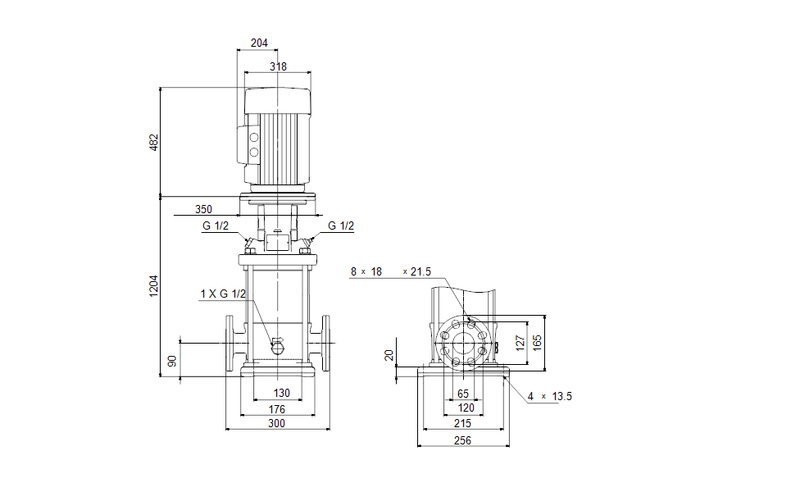

Dimensional Drawing
